Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat cushion cover (2) to the pad.
  2. Install the hook and loop retainers that attach the seat cushion cover to the pad.
  3. Install the trim retainer rings (3) (hog rings) to the rear seat cushion cover.
  4. Install the rear seat cushion (1). Refer to Seat Cushion Replacement - Rear .

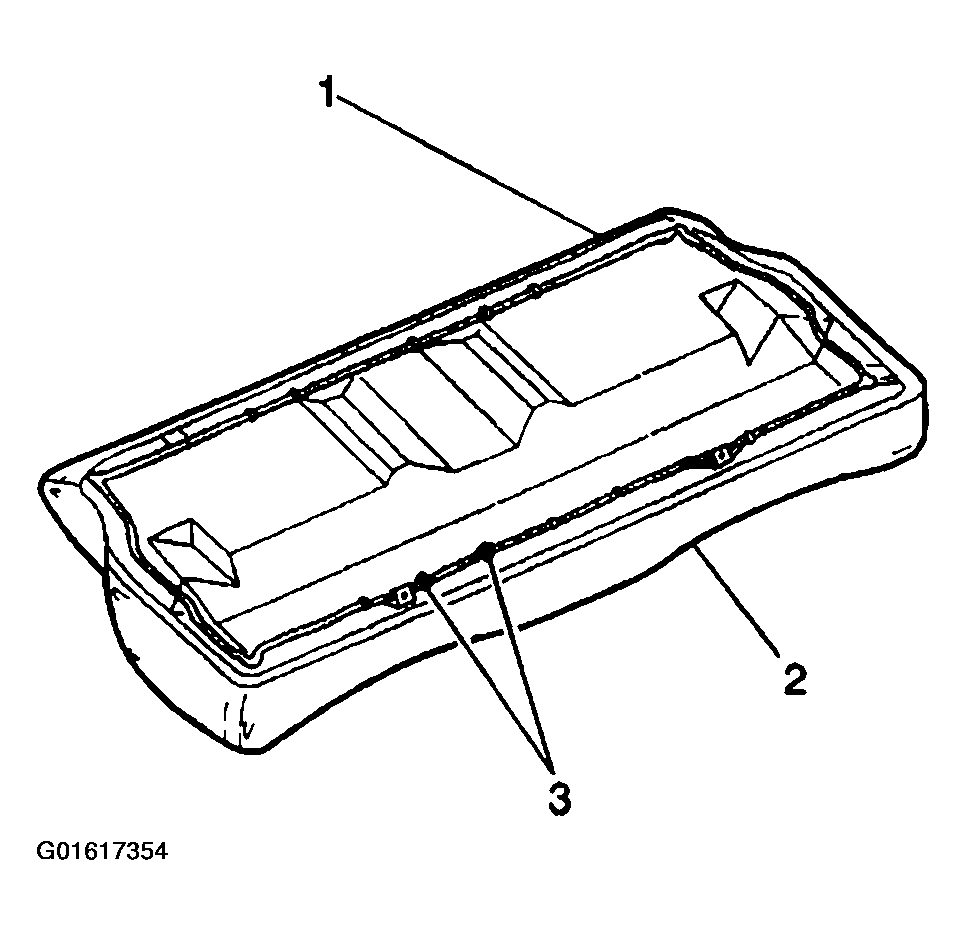

    Fig 1: Rear Seat Cushion, Trim Retainer Rings, & Cover
    G01617354Courtesy of GENERAL MOTORS CORP.
