Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place vehicle on alignment machine with rear wheels supported by Weaver plates.

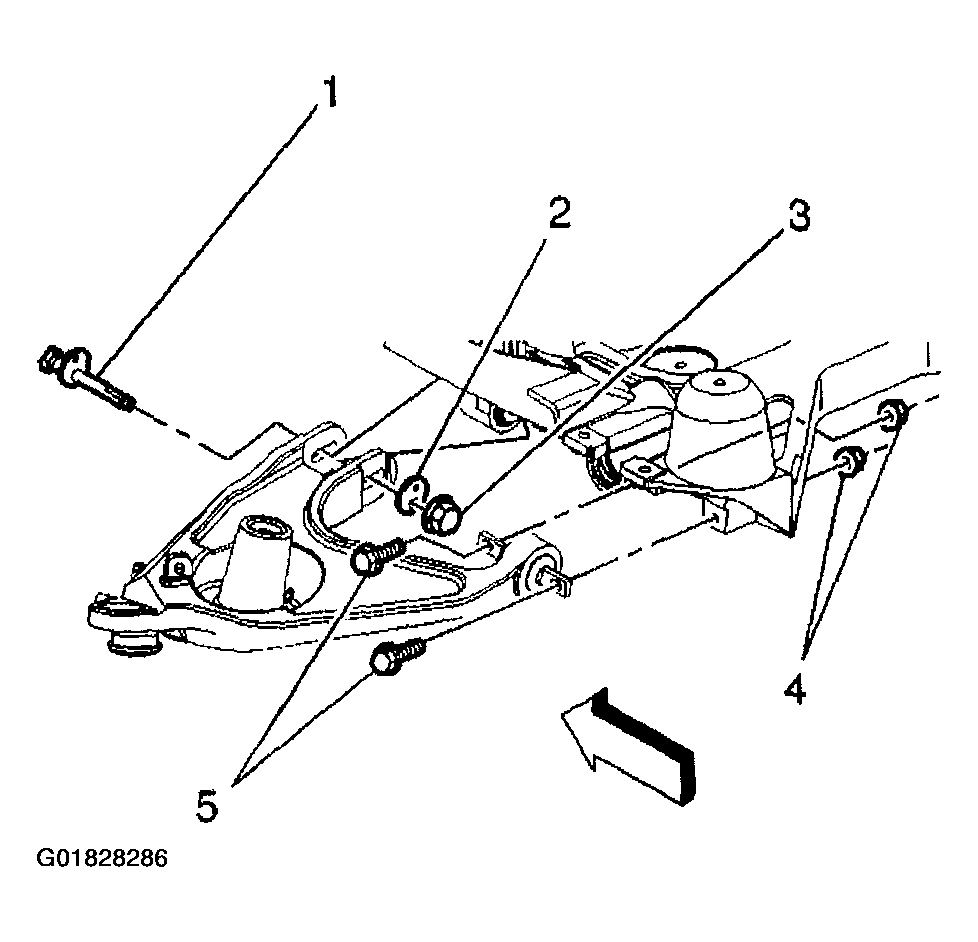

    2. Fig 1: Rear Camber Adjustment (AWD)
    G01828286Courtesy of GENERAL MOTORS CORP.
  2. Loosen rear lower control arm mounting nuts (3, 4).
  3. Adjust camber with cam bolt (1).
  4. Confirm correct camber value.
  5. Check toe alignment and adjust if required.
