Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .

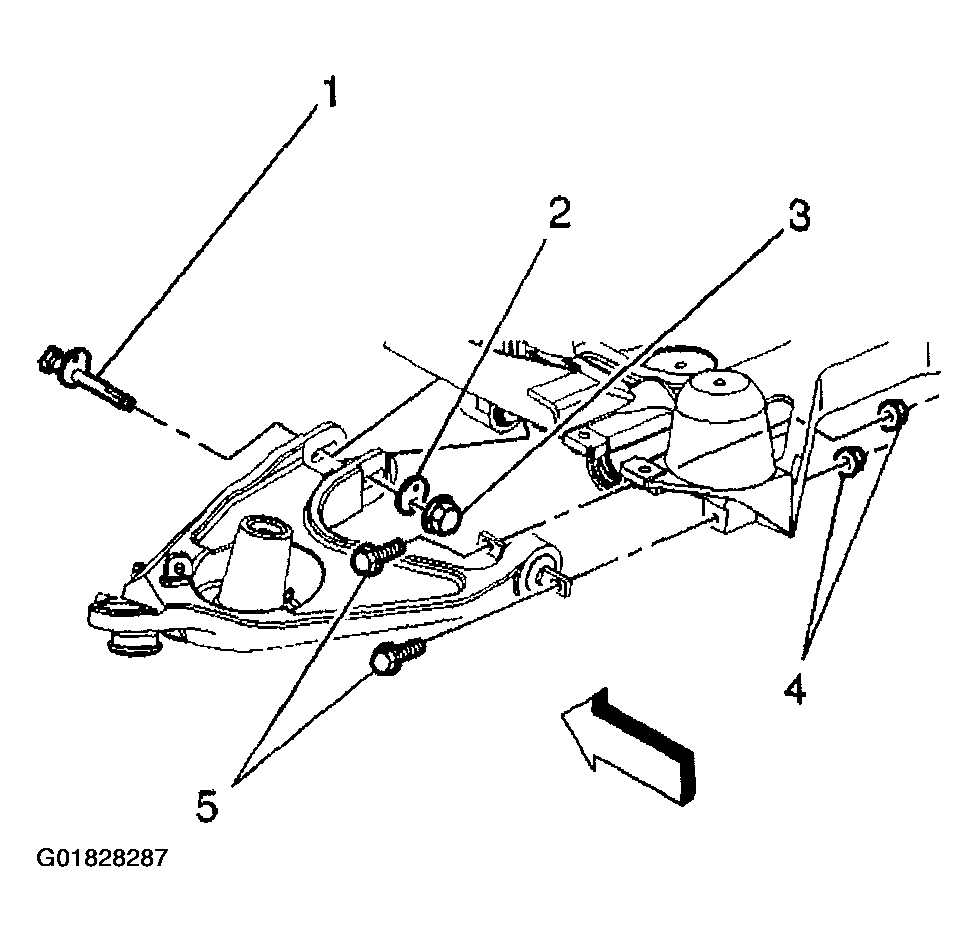

    Fig 1: Rear Camber Adjustment (AWD)
    G01828287Courtesy of GENERAL MOTORS CORP.
  1. Tighten the lower control arm mounting nuts (3, 4).

    Tighten

    Tighten the nut (3) 125 N.m (107 lb ft); tighten (4) to 50 N.m (37 lb ft).

  2. Test drive the vehicle.
