Vibration Analysis - Driveline

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

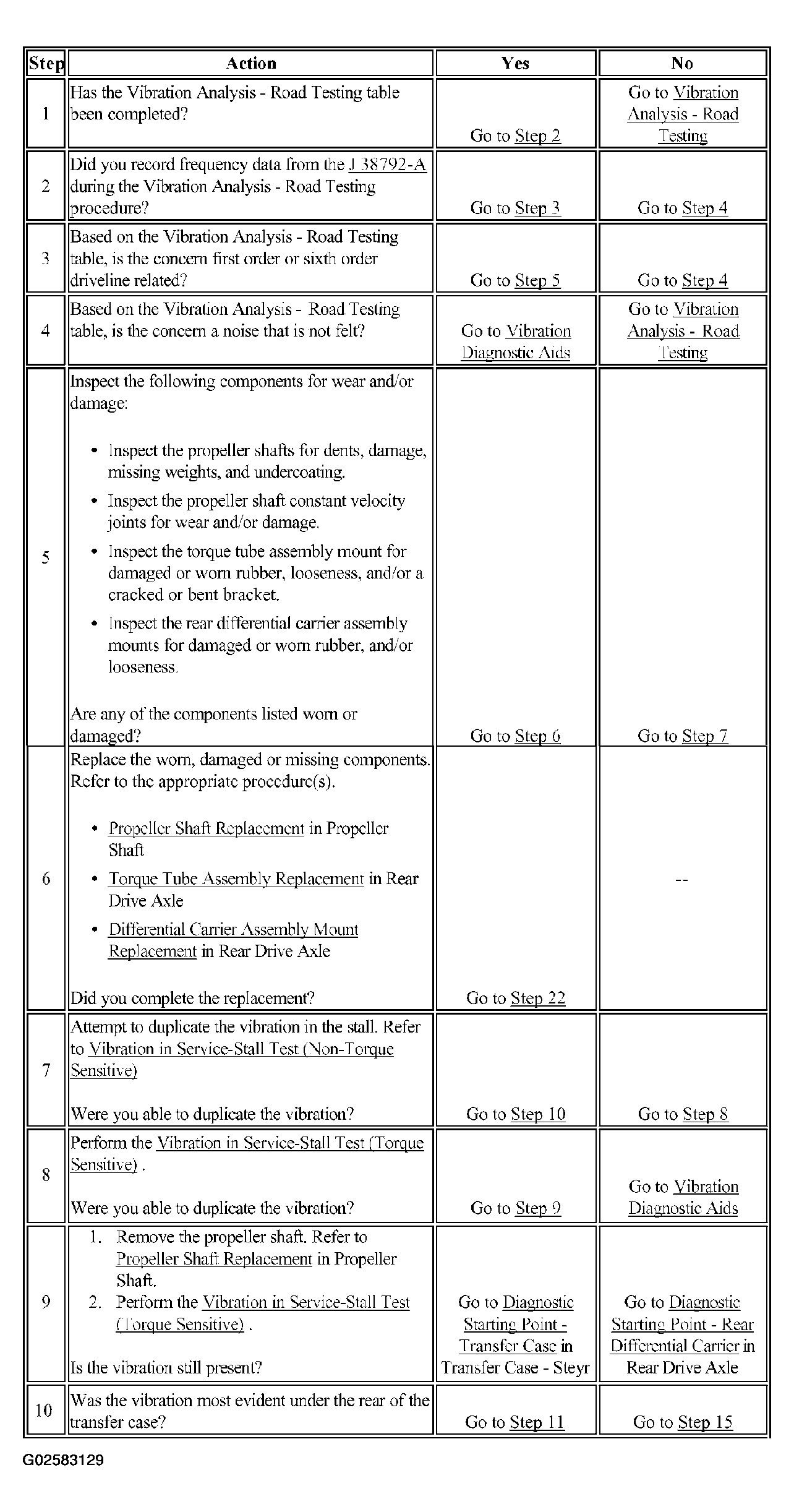

Fig 1: Vibration Analysis - Driveline (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Vibration Analysis - Driveline (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

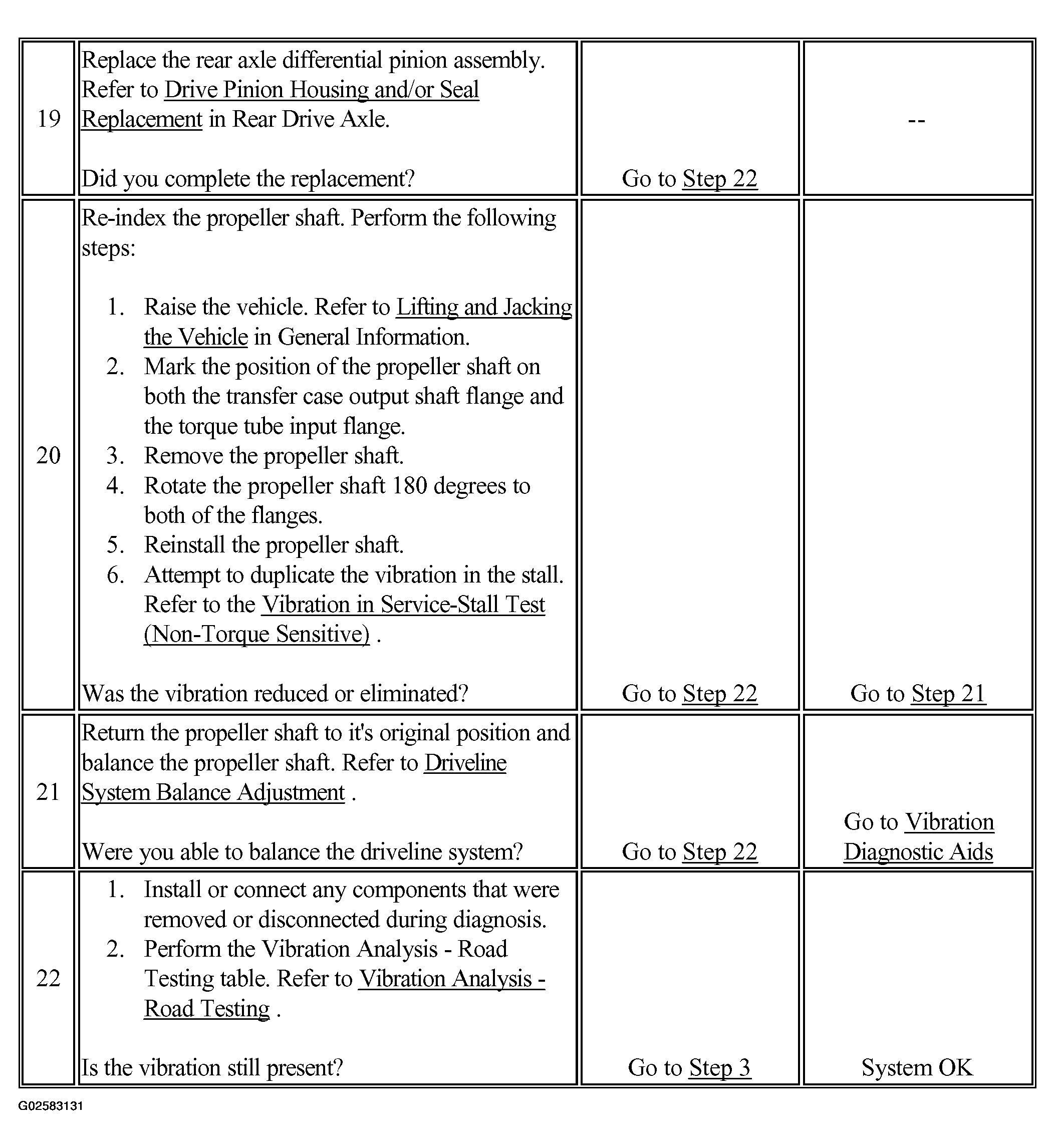

Fig 3: Vibration Analysis - Driveline (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
