Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING & JACKING VEHICLE .
  2. Remove the vent hose clamp (2) from the vent hose (1).
  3. Release the grommet securing the vent hose to the vehicle underbody.
  4. Remove the vent hose from the differential assembly vent tube by carefully twisting the hose.

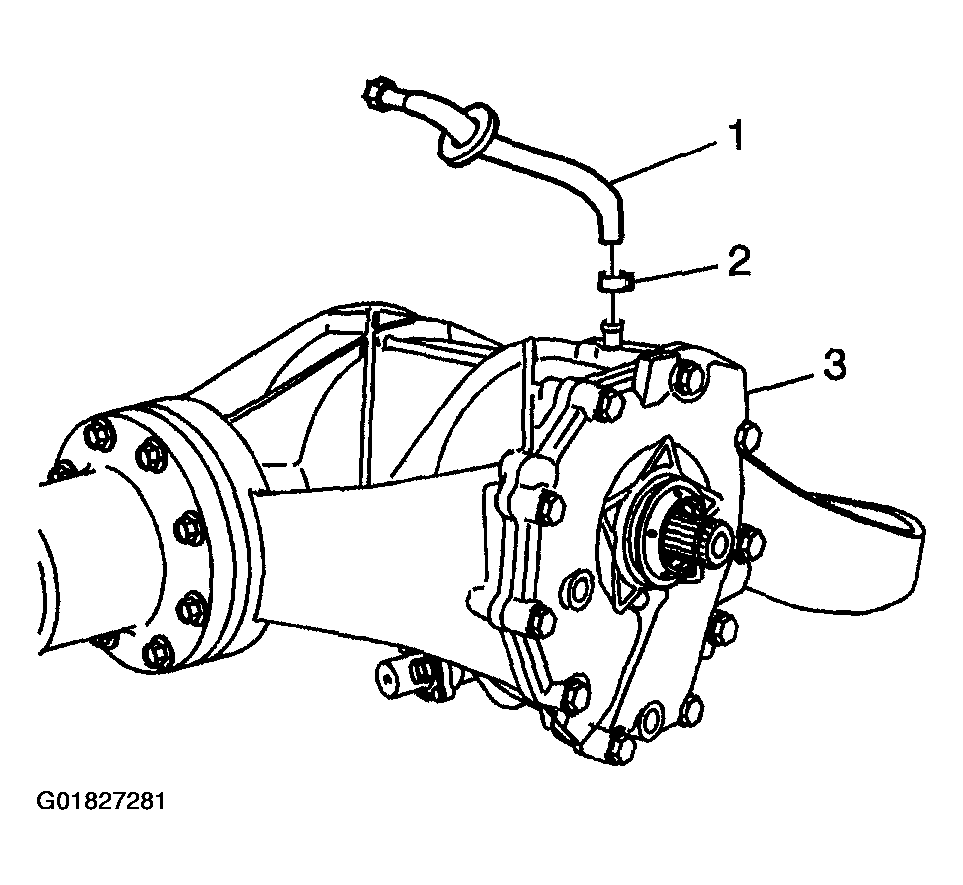

    Fig 1: Removing Vent Hose & Clamp
    G01827281Courtesy of GENERAL MOTORS CORP.
