Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING & JACKING VEHICLE .
  2. Place a jack stand under the torque tube.
  3. Remove the torque tube-to-bracket through bolt (7), nut (1), washers (2, 8), and spacers (3, 6).
  4. Remove the mounting bracket-to-body bolts (5) from the torque tube bracket (4).
  5. Lower the jack stand slightly in order to gain access to the torque tube bracket.
  6. Remove the torque tube bracket.

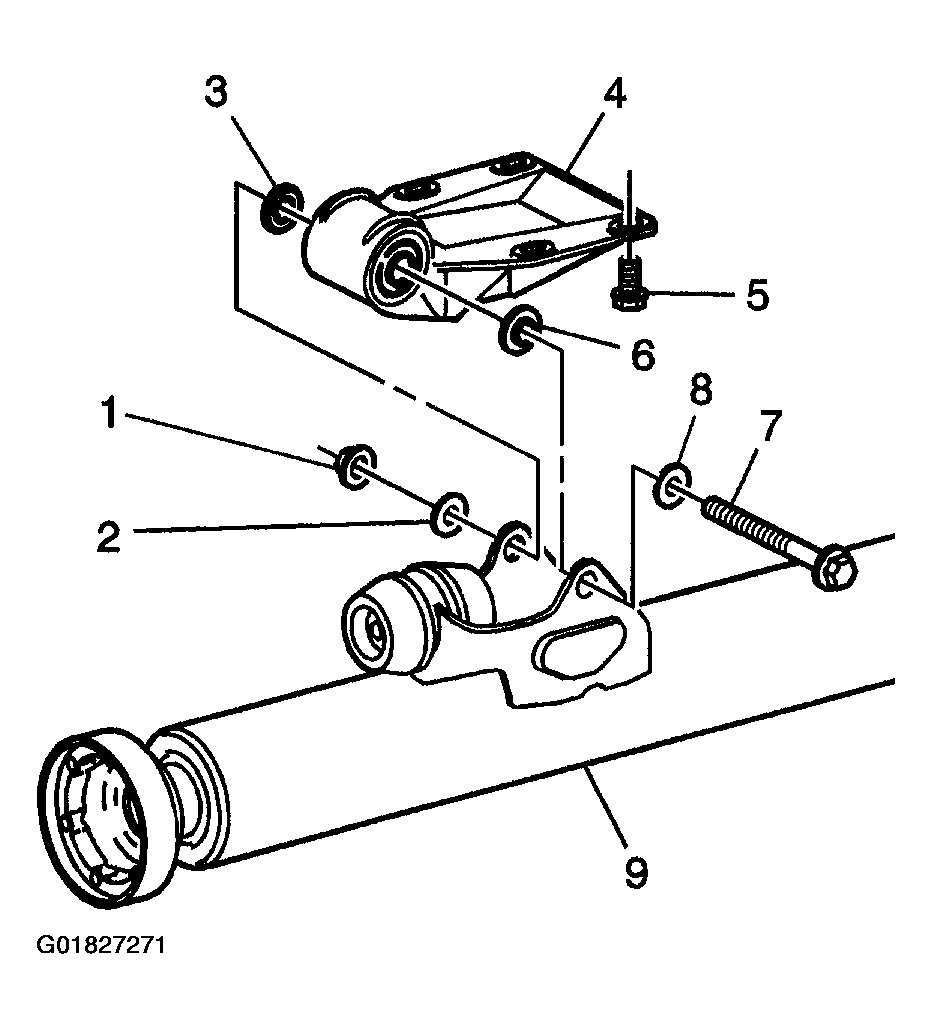

    Fig 1: Removing Torque Tube-To-Bracket & Components
    G01827271Courtesy of GENERAL MOTORS CORP.
