Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Do not tighten the torque tube bracket through bolt. Hand tighten only until the bracket is secured to the vehicle body.
  1. Install the torque tube-to-bracket through bolt (7), nut (1), washers (2, 8), and spacers (3, 6).
  2. Raise the jack stand in order to install the torque tube mounting bracket to the vehicle body.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the mounting bolts (5) to the torque tube bracket (4).

    Tighten

    • Tighten the torque tube mounting bracket-to-body bolts to 55 N.m (41 lb ft.
    • Tighten the torque tube-to-bracket through bolt to 64 N.m (47 lb ft.

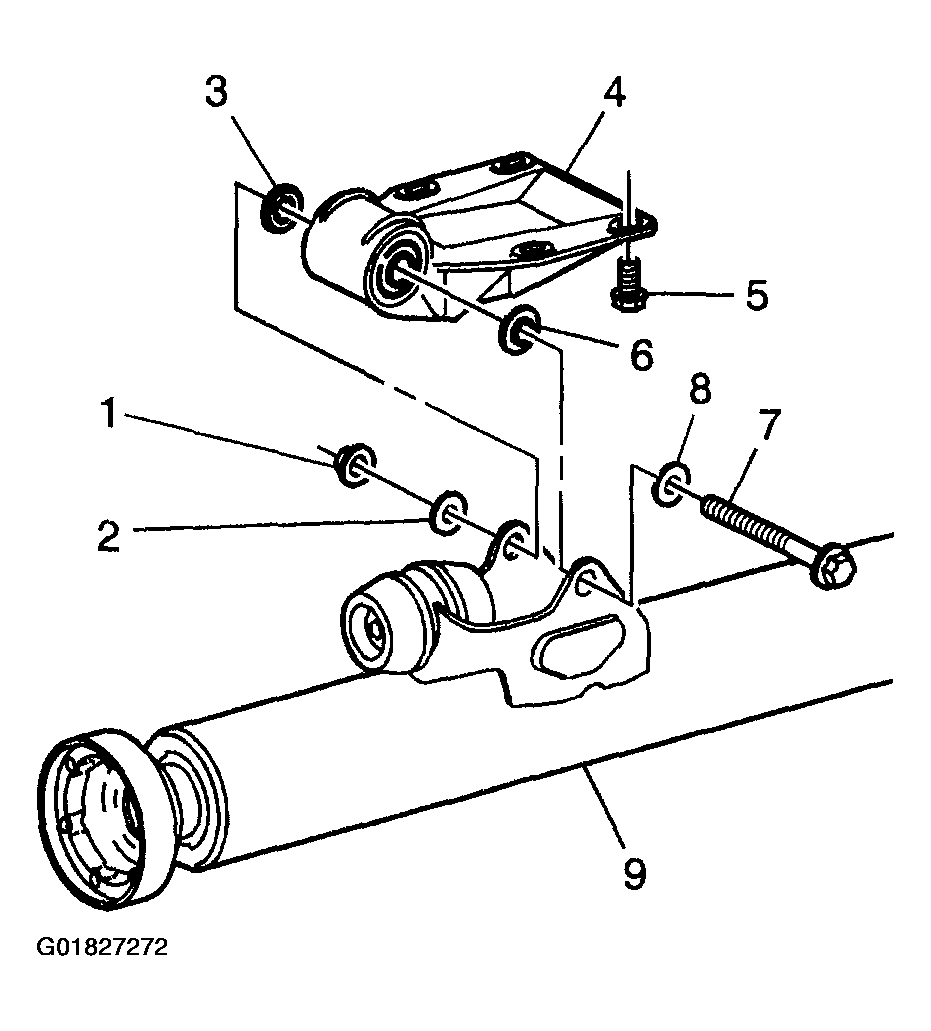

    Fig 1: Installing Torque Tube-To-Bracket & Components
    G01827272Courtesy of GENERAL MOTORS CORP.
  4. Remove the jack stand.
  5. Lower the vehicle.
