Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Using the J 44915 , install a new oil seal (2) to the drive pinion housing.

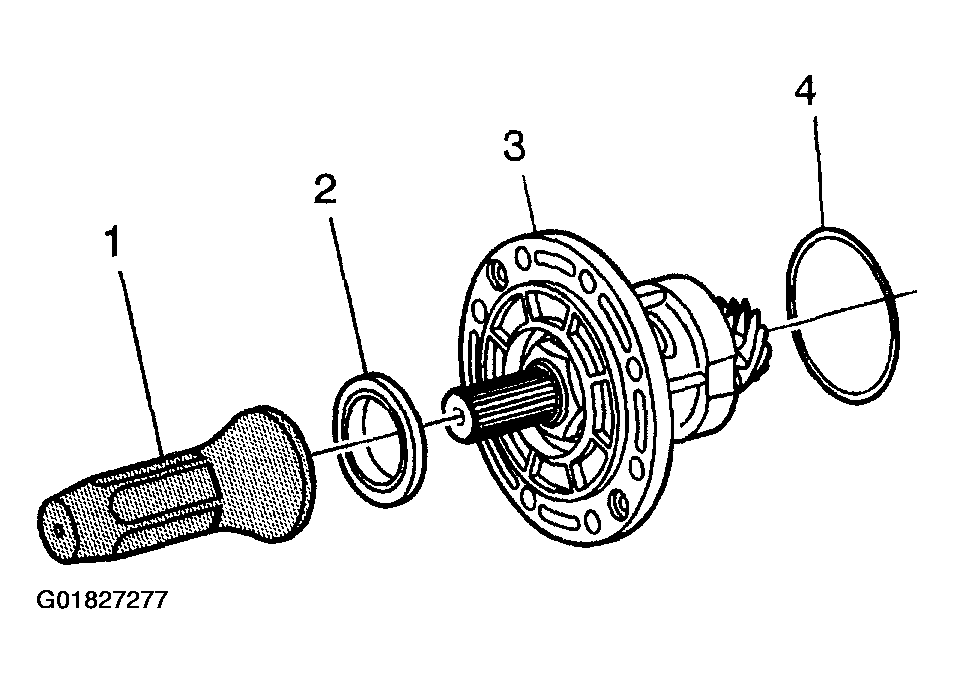

Fig 1: Installing Oil Seal & Drive Pinion Housing
Courtesy of GENERAL MOTORS CORP.
Align the splines on the torque tube shaft to the differential pinion shaft.
Install the torque tube (1) to the differential (2).

Fig 2: Installing Torque Tube & Differential
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the bolts (5) to the torque tube bracket (4).
Tighten
- Tighten the torque tube bracket bolts to 55 N.m (41 lb ft).
- Tighten the torque tube-to-bracket through bolt nut (1) to 64 N.m (47 lb ft).
Fig 3: Installing Torque Tube-To-Bracket Through Bolts & Nuts
Courtesy of GENERAL MOTORS CORP.
Install the torque tube-to-differential carrier bolts (1).
Tighten

Tighten the bolts to 25 N.m (18 lb ft).
Install the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT .
Tighten

Tighten the mounting bolts to 41 N.m (30 lb ft).
Remove the jack stand from under the front of the rear differential.
Lower the vehicle.

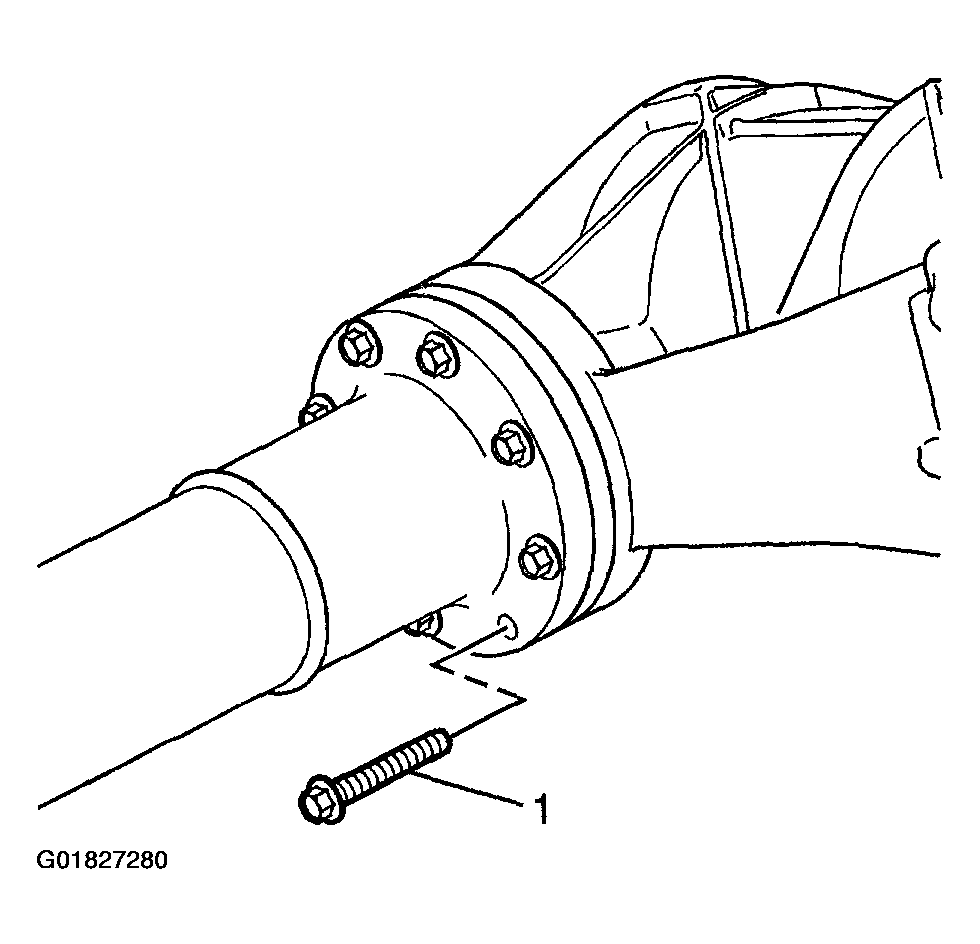

Fig 4: Installing Torque Tube-To-Differential Bolts
Courtesy of GENERAL MOTORS CORP.
