Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING & JACKING VEHICLE .
  2. Remove the right rear tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the right wheel drive shaft. Refer to WHEEL DRIVE SHAFT REPLACEMENT -- REAR
  4. Remove the differential output shaft oil seal (1). Do not damage the differential sealing surfaces.

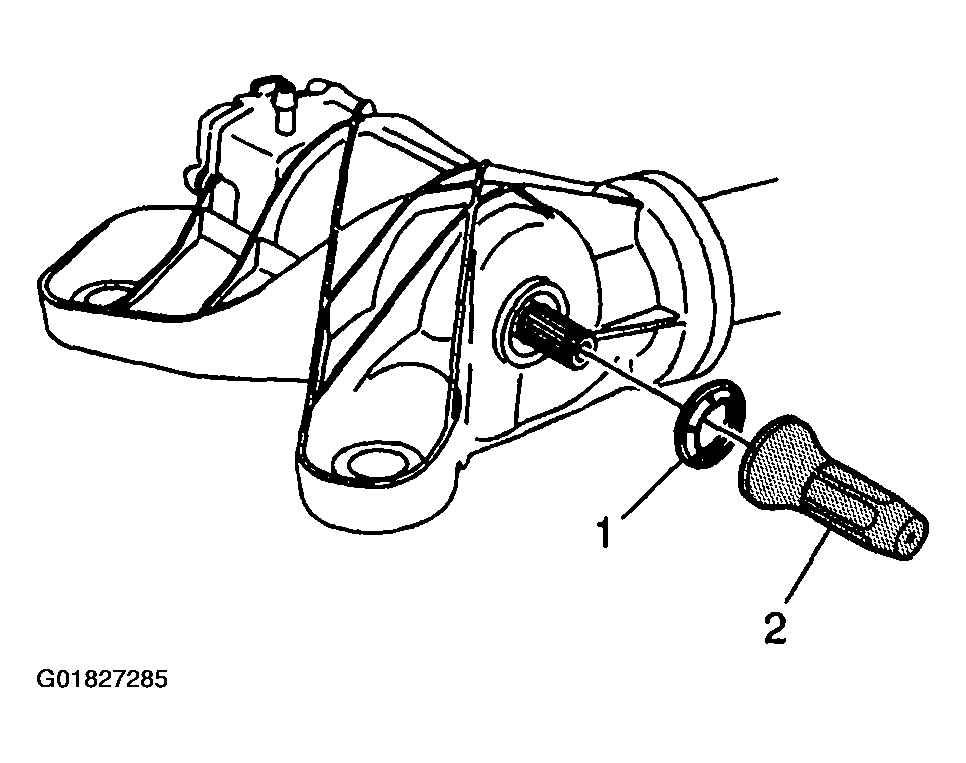

    Fig 1: Removing Differential Output Shaft Oil Seal & J 44809
    G01827285Courtesy of GENERAL MOTORS CORP.
