Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the torque tube assembly. Refer to Torque Tube Assembly Replacement .
  2. Remove the drive pinion housing oil seal (1) and discard.

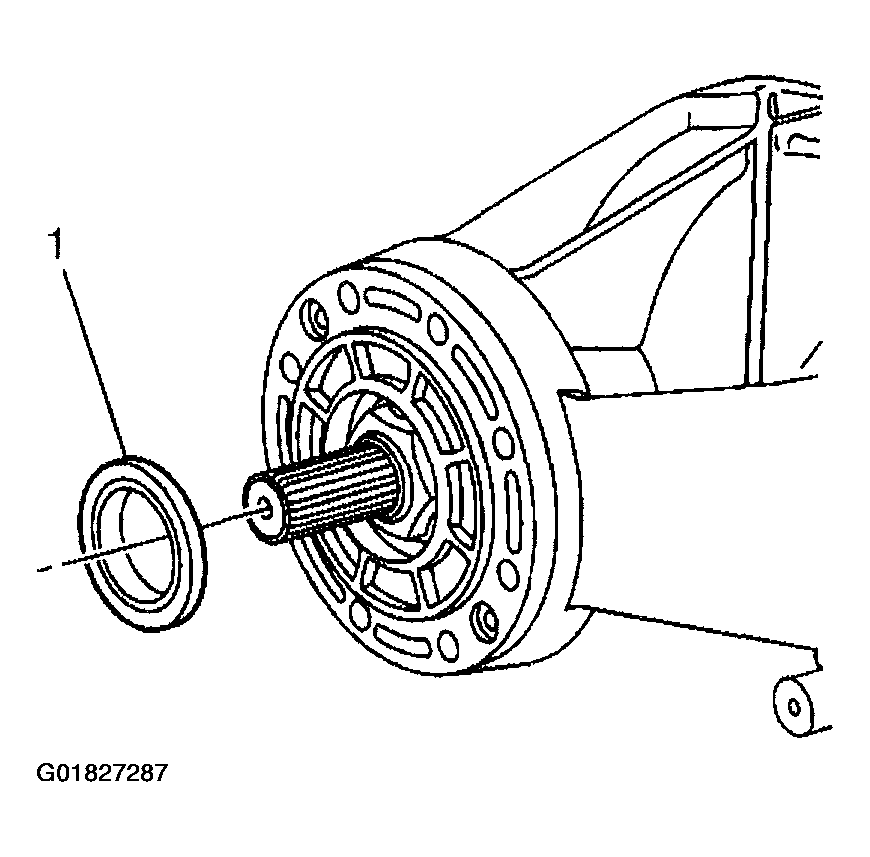

    Fig 1: Removing Drive Pinion Housing Oil Seal
    G01827287Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The internal components of the torque tube assembly cannot be serviced separately. If corrosion exists that cannot be polished off, or there is excessive scoring or wear, the torque tube must be replaced as a complete assembly.
  3. Inspect the sealing surface (1) of the propeller shaft contained inside the torque tube. Polish corrosion off with a crocus cloth.

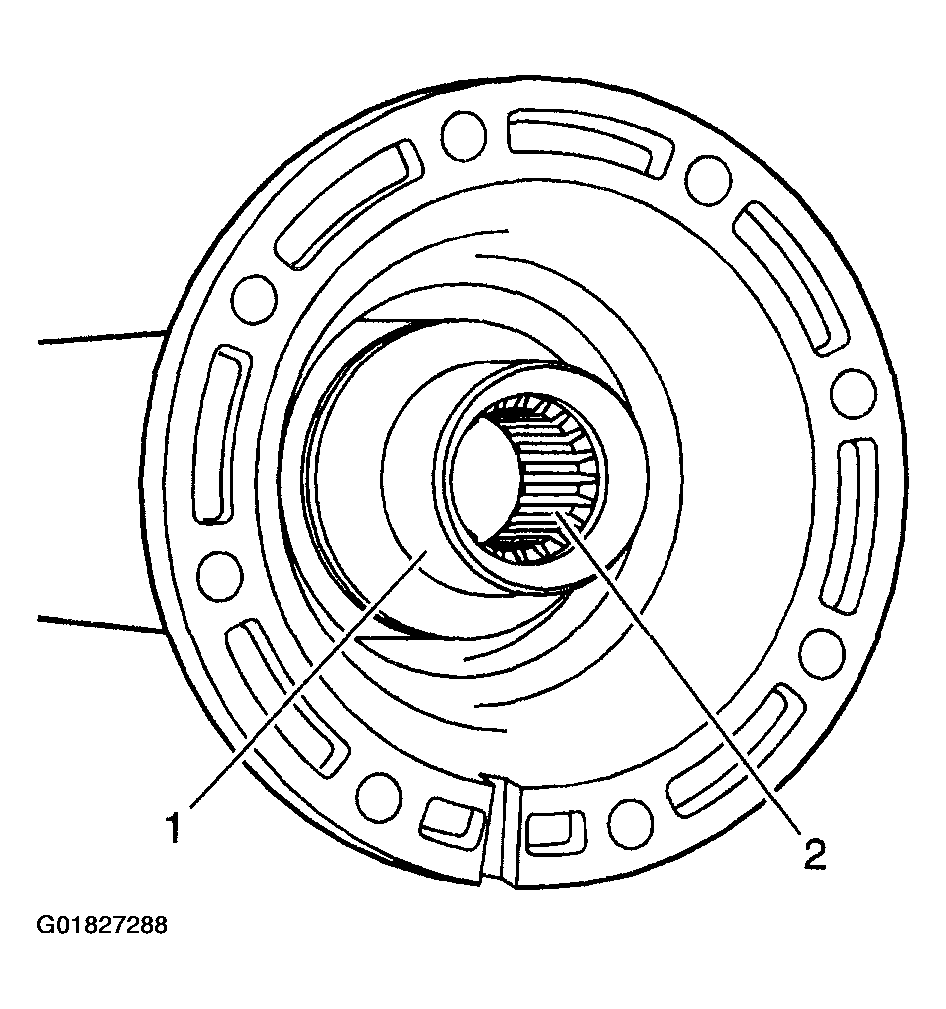

    Fig 2: Inspecting Sealing Surface
    G01827288Courtesy of GENERAL MOTORS CORP.
