Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING & JACKING VEHICLE .
  2. Support the front of the differential with a suitable stand.
  3. Loosen, but do not remove, the torque tube-to-bracket through bolt (7) and nut (1).

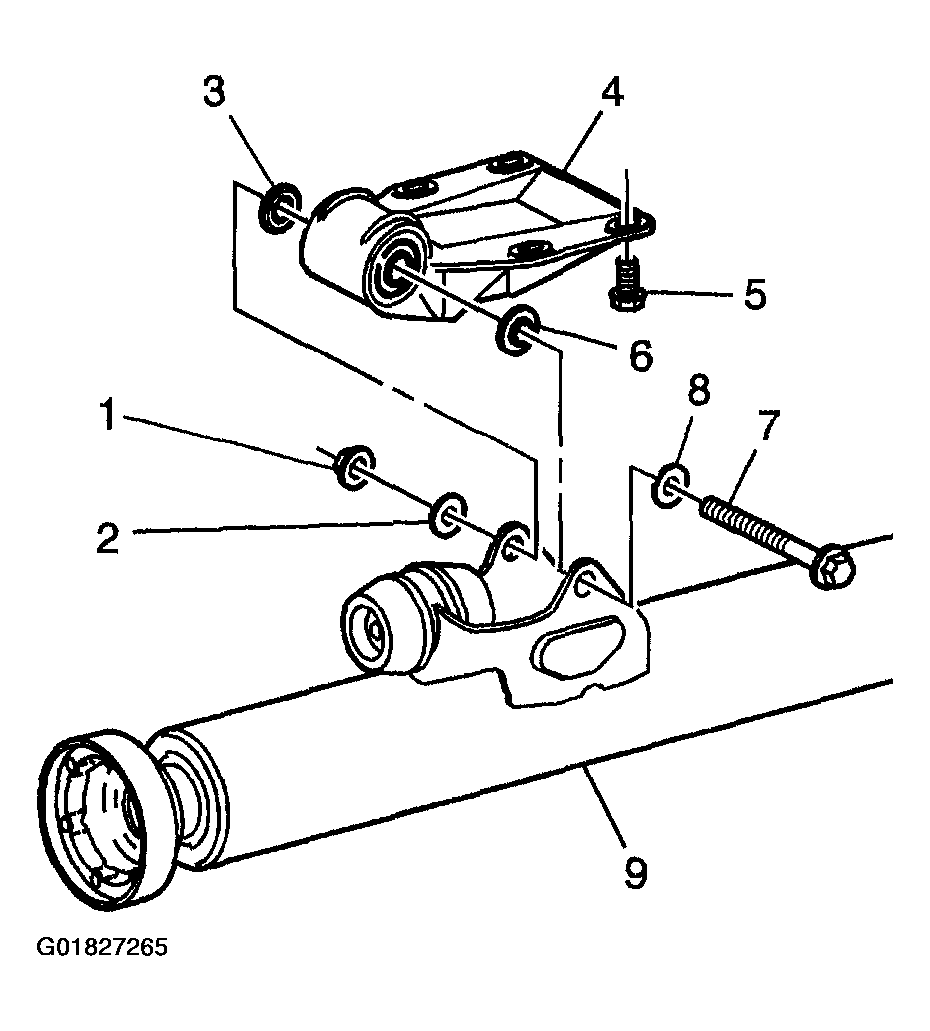

    Fig 1: Removing Differential Carrier Assembly
    G01827265Courtesy of GENERAL MOTORS CORP.
  4. Remove the cradle-to-differential mounting bolts (5), nuts (1), washers (2), and bushings (3) from the differential.
  5. Raise the stand slightly in order to gain access to the differential-to-cradle bushings.
  6. Remove the differential-to-cradle bushings (4).

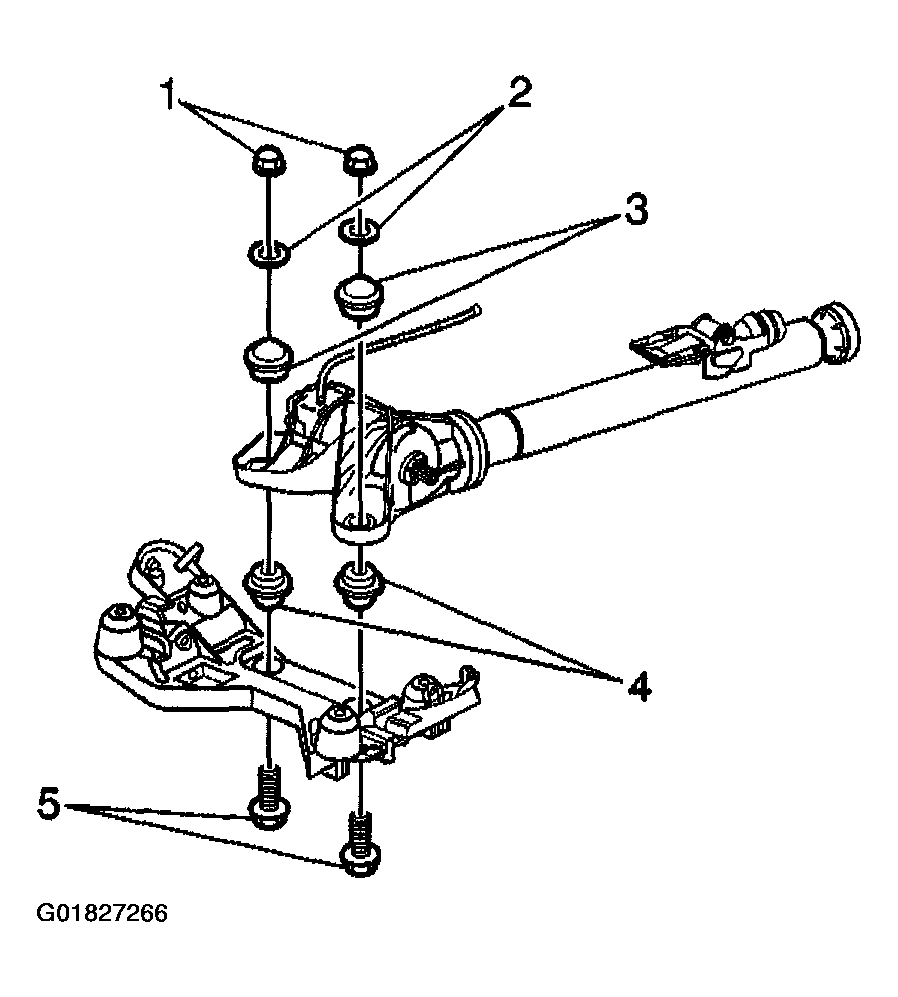

    Fig 2: Removing Cradle-To-Differential & Components
    G01827266Courtesy of GENERAL MOTORS CORP.
