Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the differential-to-cradle bushings (4).
  2. Lower and remove the jack stand.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the cradle-to-differential mounting bolts (5), bushings (3), washers (2), and nuts (1) to the differential.

    Tighten

    Tighten the bolts and nuts to 50 N.m (37 lb ft).

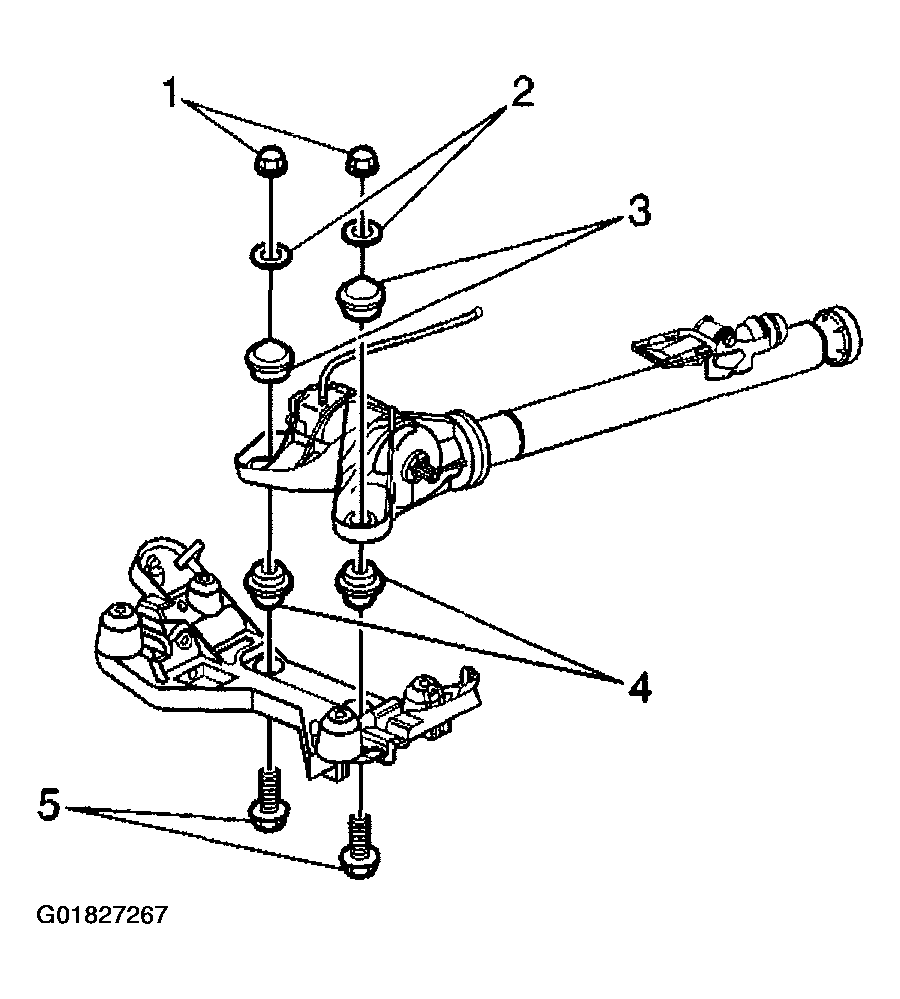

    Fig 1: Installing Cradle-To-Differential & Components
    G01827267Courtesy of GENERAL MOTORS CORP.
  4. Secure the torque tube-to-bracket through bolt (7) and nut (1).

    Tighten

    Tighten the bolt and nut to 64 N.m (47 lb ft).

  5. Lower the vehicle.

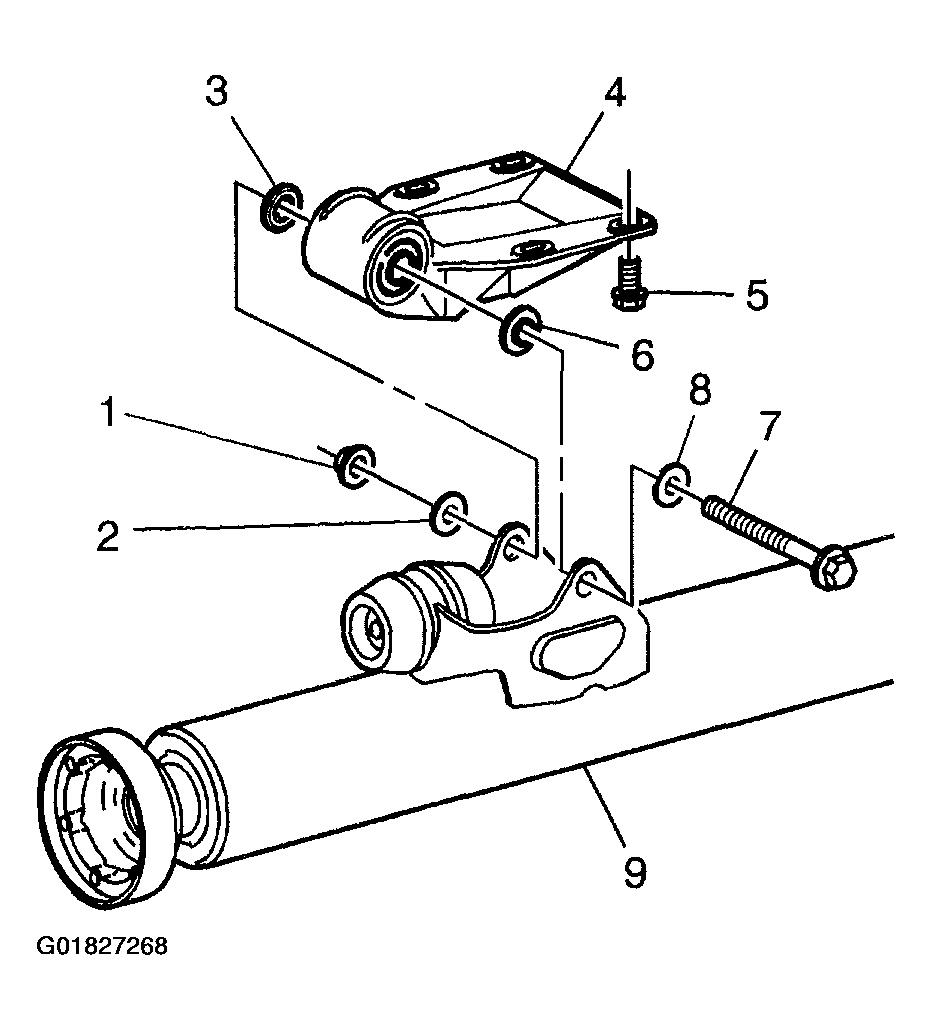

    Fig 2: Installing Differential Carrier Assembly
    G01827268Courtesy of GENERAL MOTORS CORP.
