Removal & Installation

WARNING: This page is about a different car, the 2002 GMC Savana and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove driver seat. Remove front door stepwell mat. Fold back carpet to access SDM. Remove Connector Position Assurance (CPA) clip from SDM connector and disconnect connector. See Fig 1. Remove SDM mounting nuts. Remove SDM.
  3. To install, reverse removal procedure. Tighten SDM nuts and driver seat bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

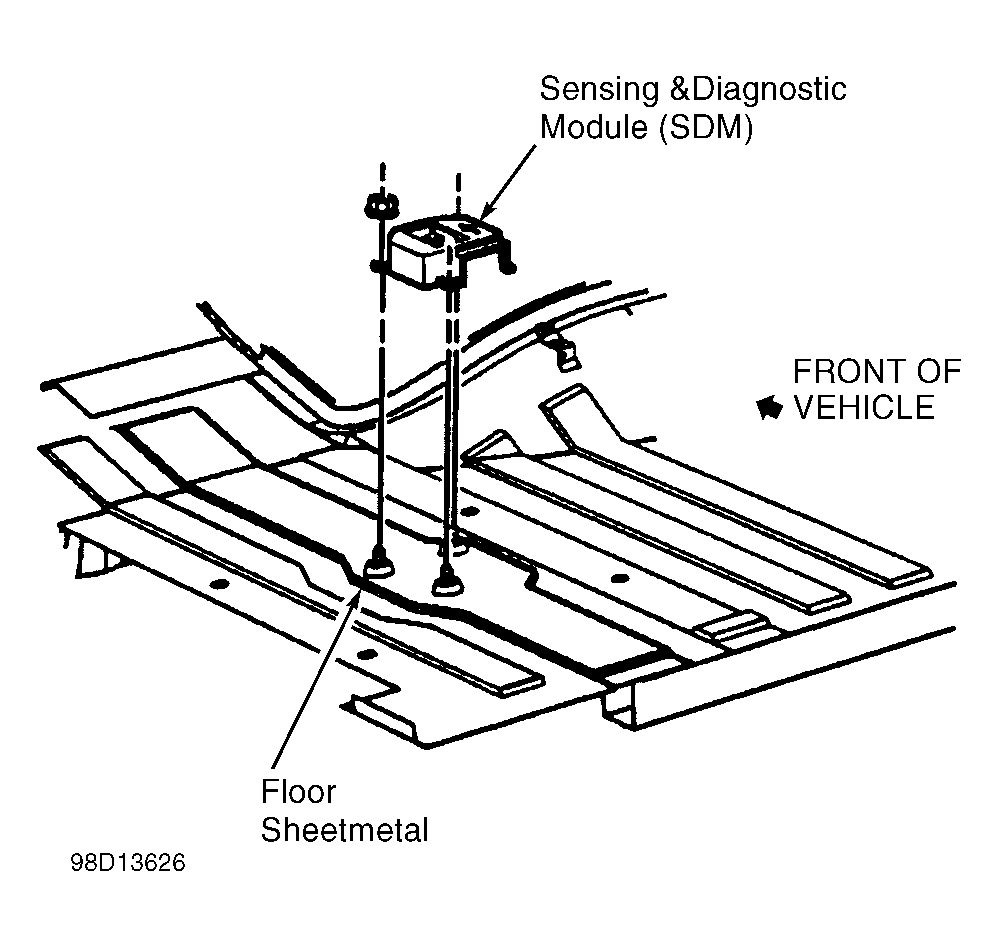

Fig 1: Identifying Sensing & Diagnostic Module (SDM)
G98D13626Courtesy of GENERAL MOTORS CORP.
