Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back and seat cushion.
  2. Remove the rear quarter upper trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (SEDAN) .
  3. Remove the rear quarter lower trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER (SEDAN) .
  4. Remove the rear seat retractor side belt anchor bolt.

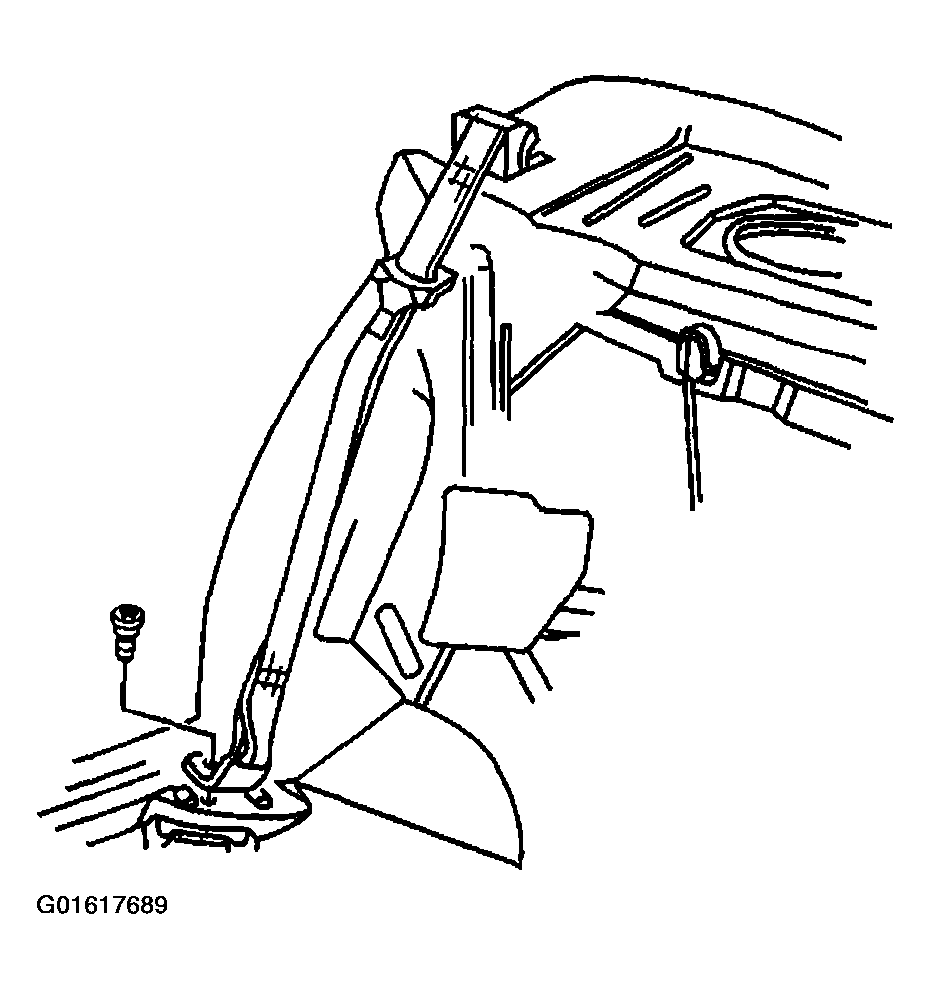

    Fig 1: Rear Seat Retractor Side Belt Anchor Bolt
    G01617689Courtesy of GENERAL MOTORS CORP.
  5. Loosen the rear window trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .
  6. Remove the rear seat back sound barrier. Refer to SOUND BARRIER REPLACEMENT - REAR SEAT BACK .
  7. Remove the rear seat retractor side belt bolt.
  8. Remove the rear seat retractor side belt from the vehicle.

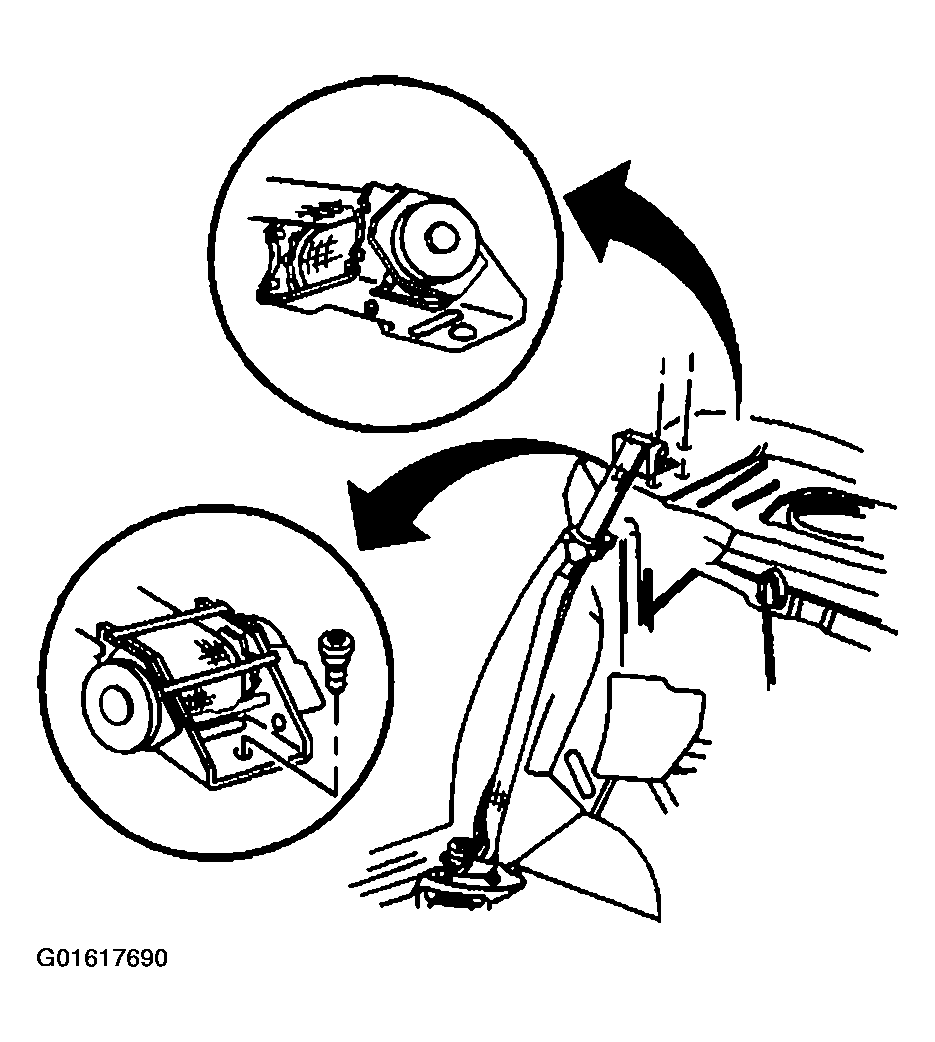

    Fig 2: Rear Seat Retractor Side Belt
    G01617690Courtesy of GENERAL MOTORS CORP.
