Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the retainer clip from the front door energy absorber pad.
  3. Remove the front door energy absorber pad from the front door trim panel.
  4. Clean the front door inner door panel using an oil-free naphtha or alcohol.

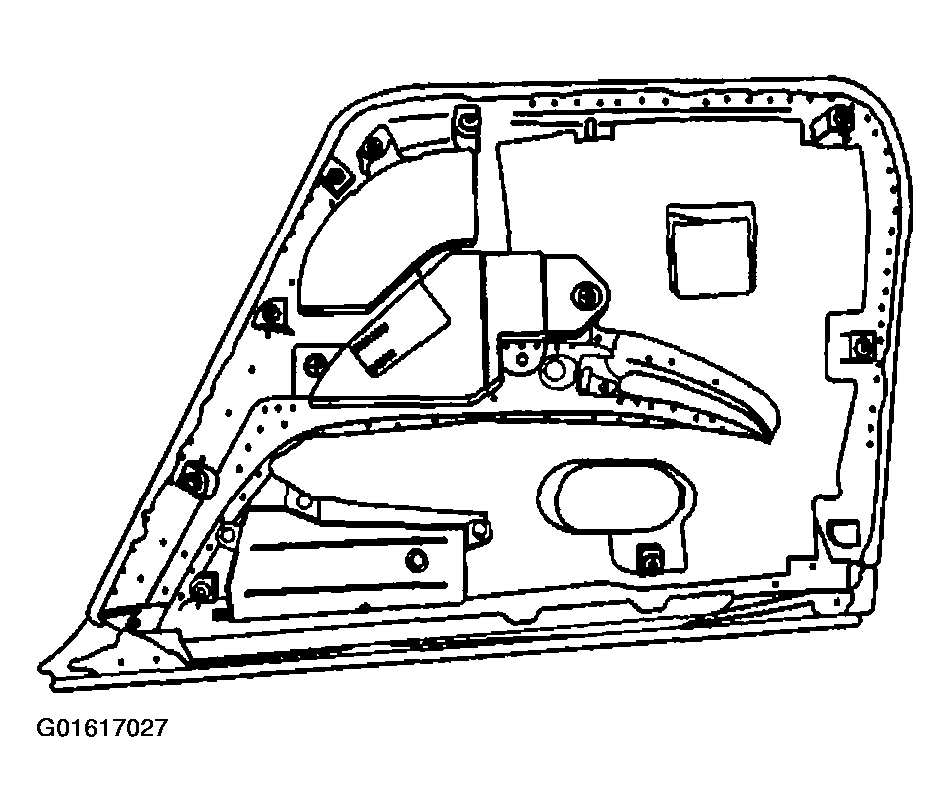

    Fig 1: Front Door Trim Panel Energy Absorber Pad
    G01617027Courtesy of GENERAL MOTORS CORP.
