Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

This procedure covers the removal of the front and rear door strikers.

  1. Remove the quarter lower trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER (SEDAN) .
  2. Mark the position of the striker with a grease pencil.
  3. Remove the screws from the front door lock striker.
  4. Remove the striker and the shims.
  5. Remove the anchor plate.

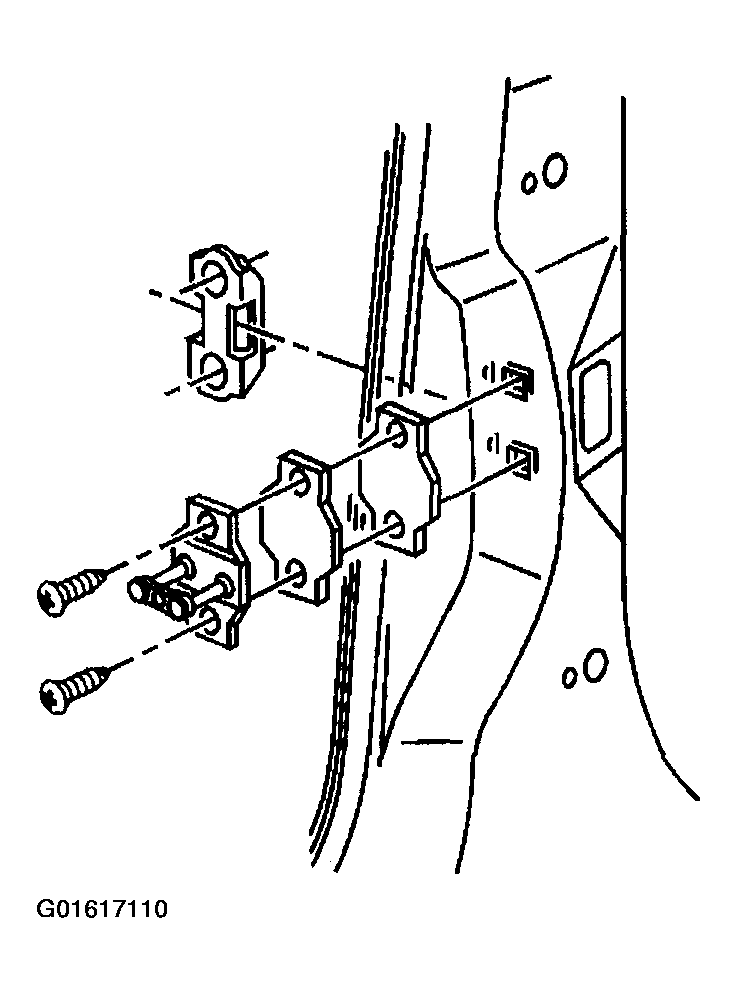

    Fig 1: Door Lock Striker
    G01617110Courtesy of GENERAL MOTORS CORP.
