Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important  : Replace any clips which you have removed from the vehicle with new clips.

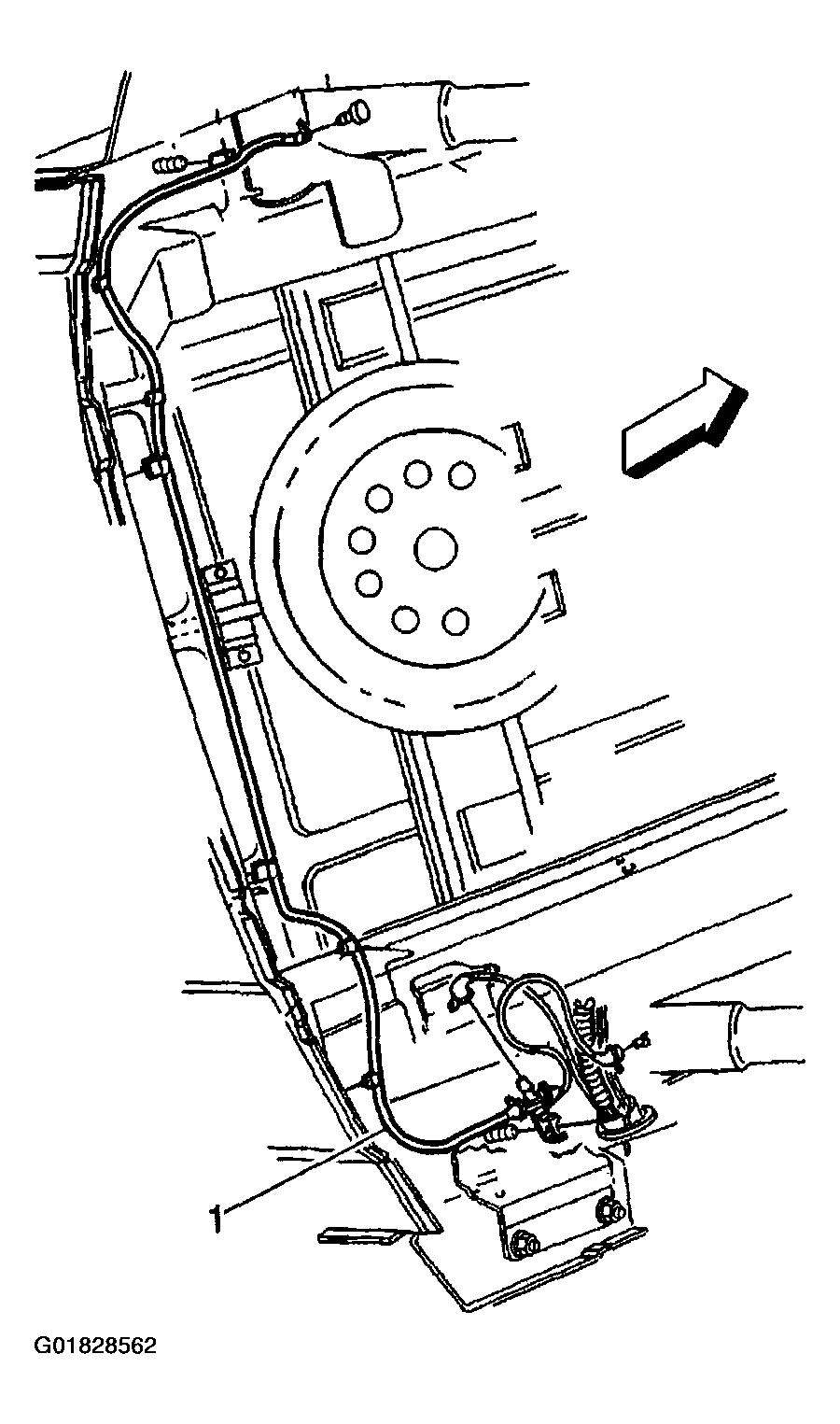

    Fig 1: Shock Absorber Crossover Air Tube
    G01828562Courtesy of GENERAL MOTORS CORP.
  1. Install the clips to the vehicle.
  2. Install the air line (1) to the right shock absorber.
  3. Install the air line (1) to the left shock absorber.
  4. Lower the vehicle.
  5. Remove the ELC/TRAILER fuse.
