Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

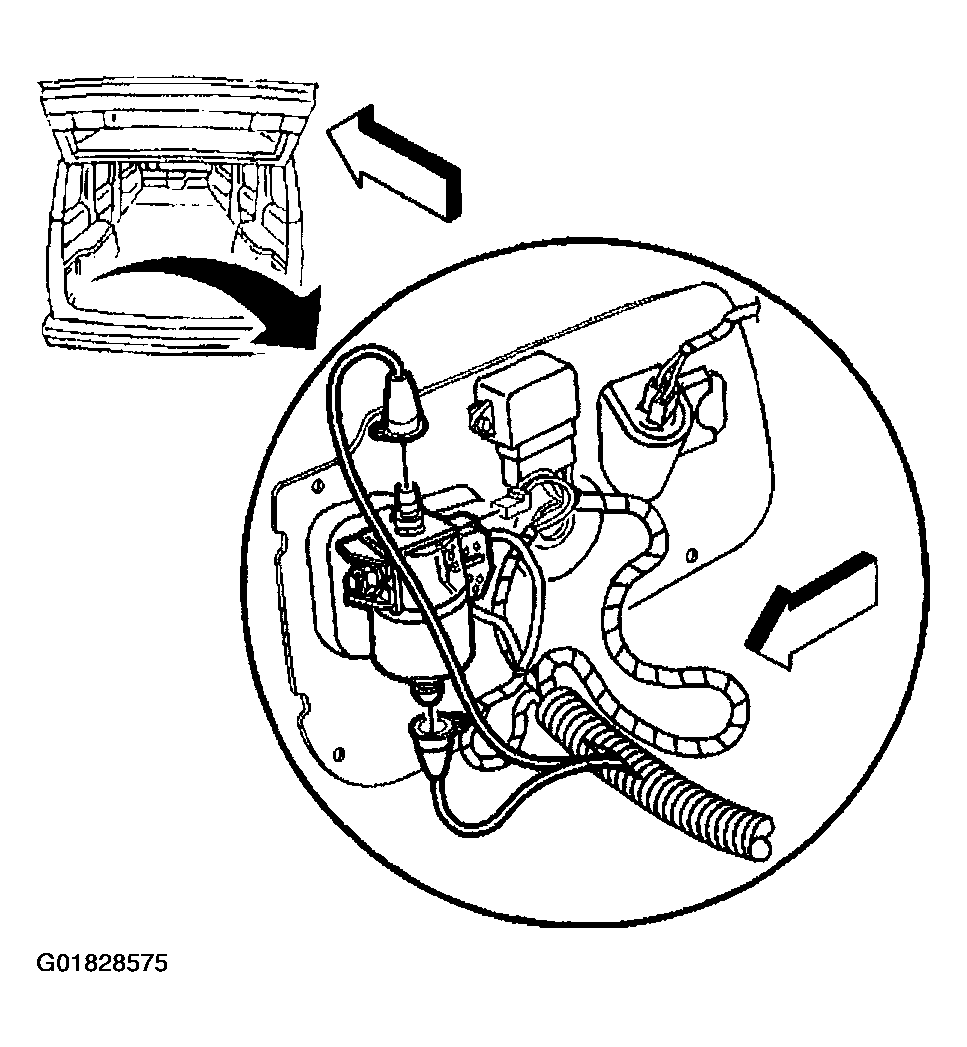

    Fig 1: Inflator Control Panel (VIN X w/ C34)
    G01828575Courtesy of GENERAL MOTORS CORP.
  1. Remove the ELC/TRAILER fuse.
  2. Remove the inflator air valve opening cover by pulling the lever inboard.
  3. Remove the inflator control panel.
  4. Disconnect the inflator solenoid electrical connector.
  5. Remove the air lines from the inflator solenoid.

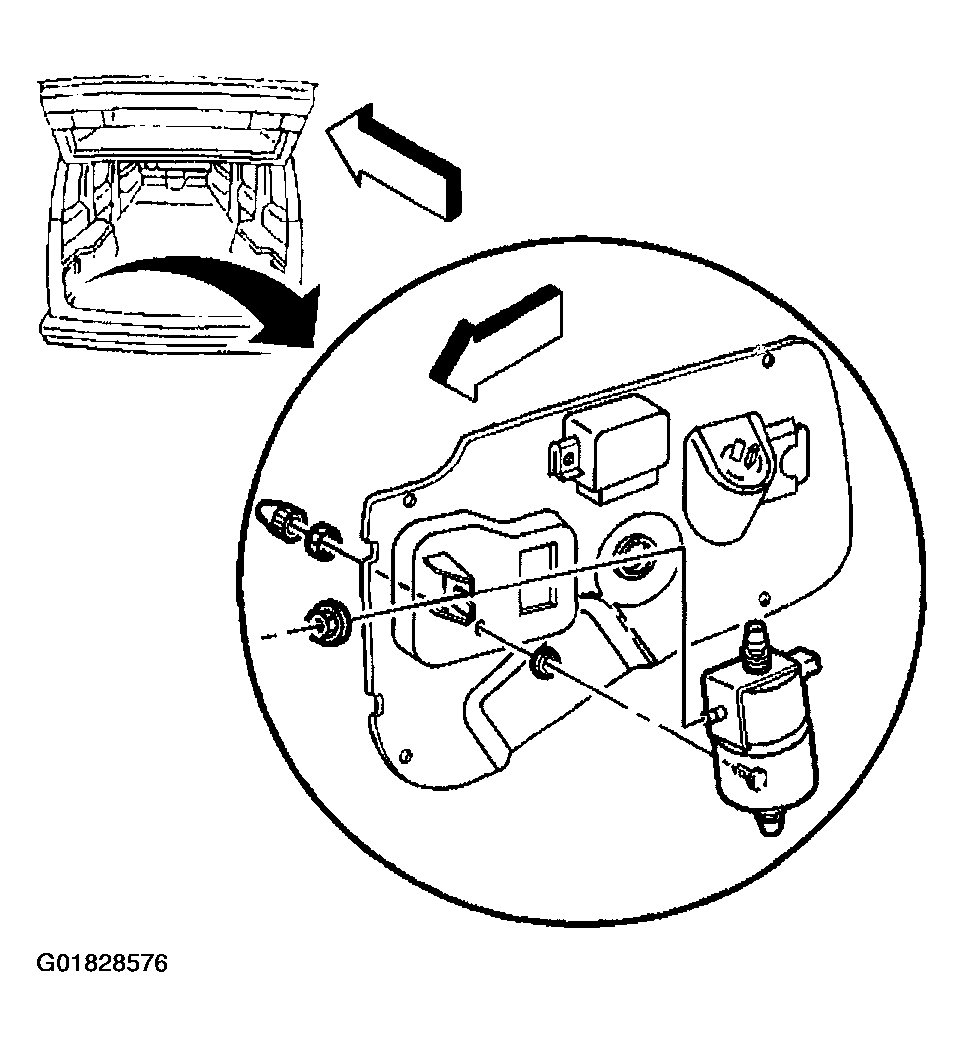

    6. Fig 2: Inflator Solenoid (VIN X w/ C34)
    G01828576Courtesy of GENERAL MOTORS CORP.
  6. Remove the inflator solenoid fill valve cap.
  7. Remove the inflator solenoid fill valve nut.
  8. Remove the inflator solenoid nut.
  9. Remove the inflator solenoid.
  10. Remove the inflator solenoid fill valve washer.
