Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

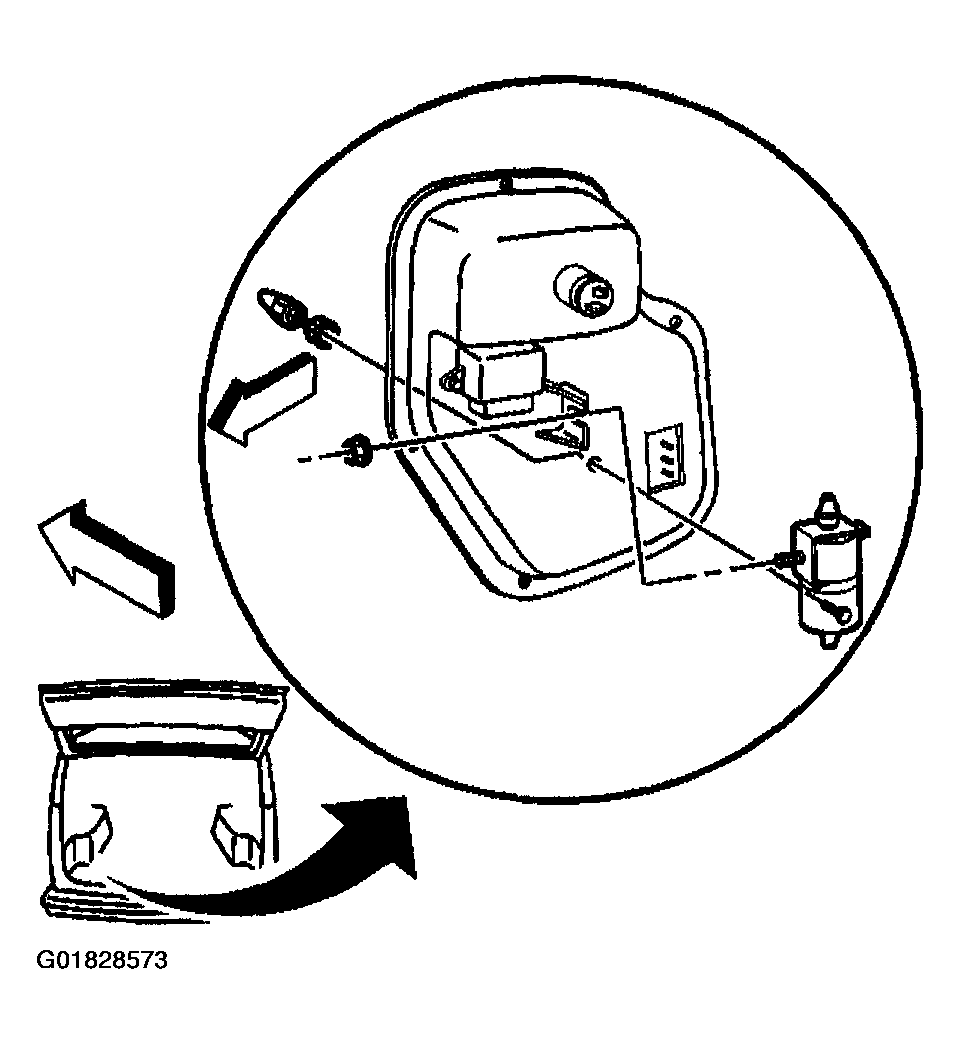

    Fig 1: Inflator Solenoid (VIN U)
    G01828573Courtesy of GENERAL MOTORS CORP.
  1. Install the inflator solenoid fill valve washer.
  2. Install the inflator solenoid.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the inflator solenoid nut.

    Tighten

    Tighten the inflator solenoid nut to 3 N.m (27 lb in).

  4. Install the inflator solenoid fill valve nut.

    Tighten

    Tighten the inflator solenoid fill valve nut to 3 N.m (27 lb in).

  5. Install the inflator solenoid fill valve cap.

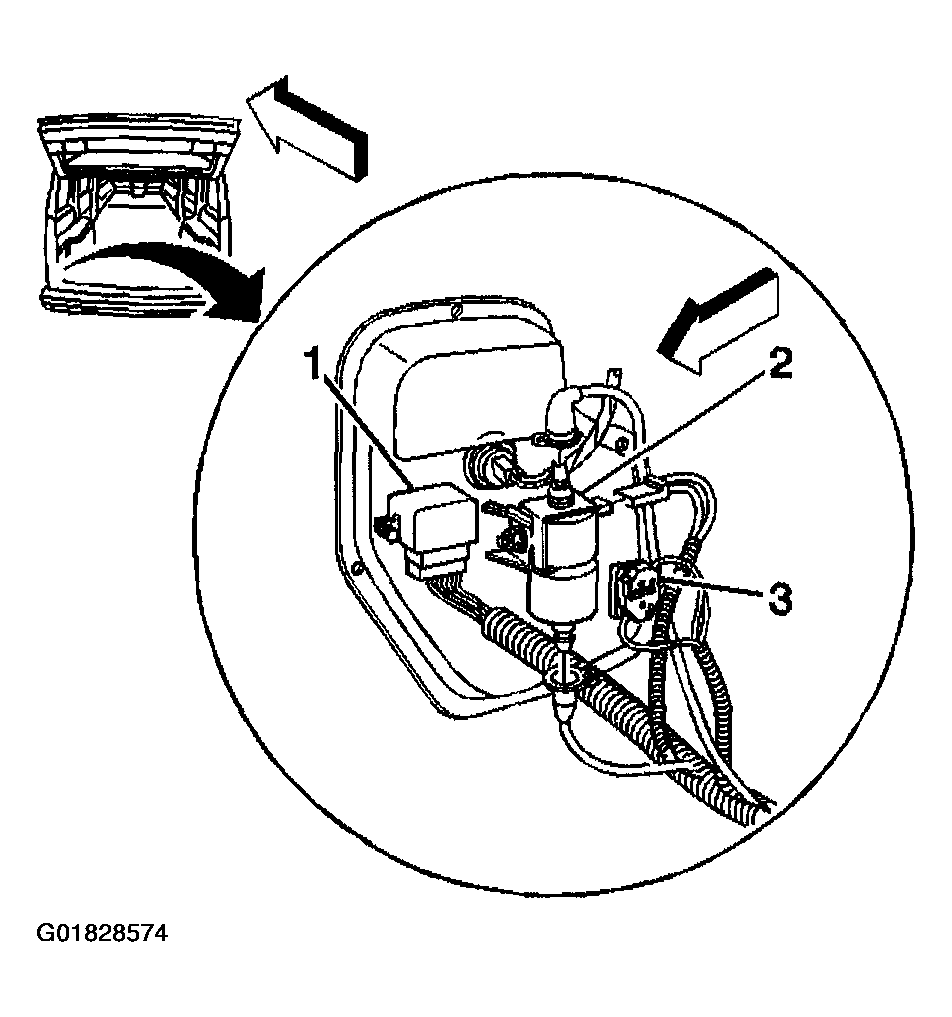

    6. Fig 2: Inflator Control Panel (VIN U)
    G01828574Courtesy of GENERAL MOTORS CORP.
  6. Install the air lines to the inflator solenoid.
  7. Connect the inflator solenoid electrical connector.
  8. Install the inflator control panel.
  9. Install the inflator air valve opening cover by pushing the lever outboard.
  10. Install the ELC/TRAILER fuse.
