Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

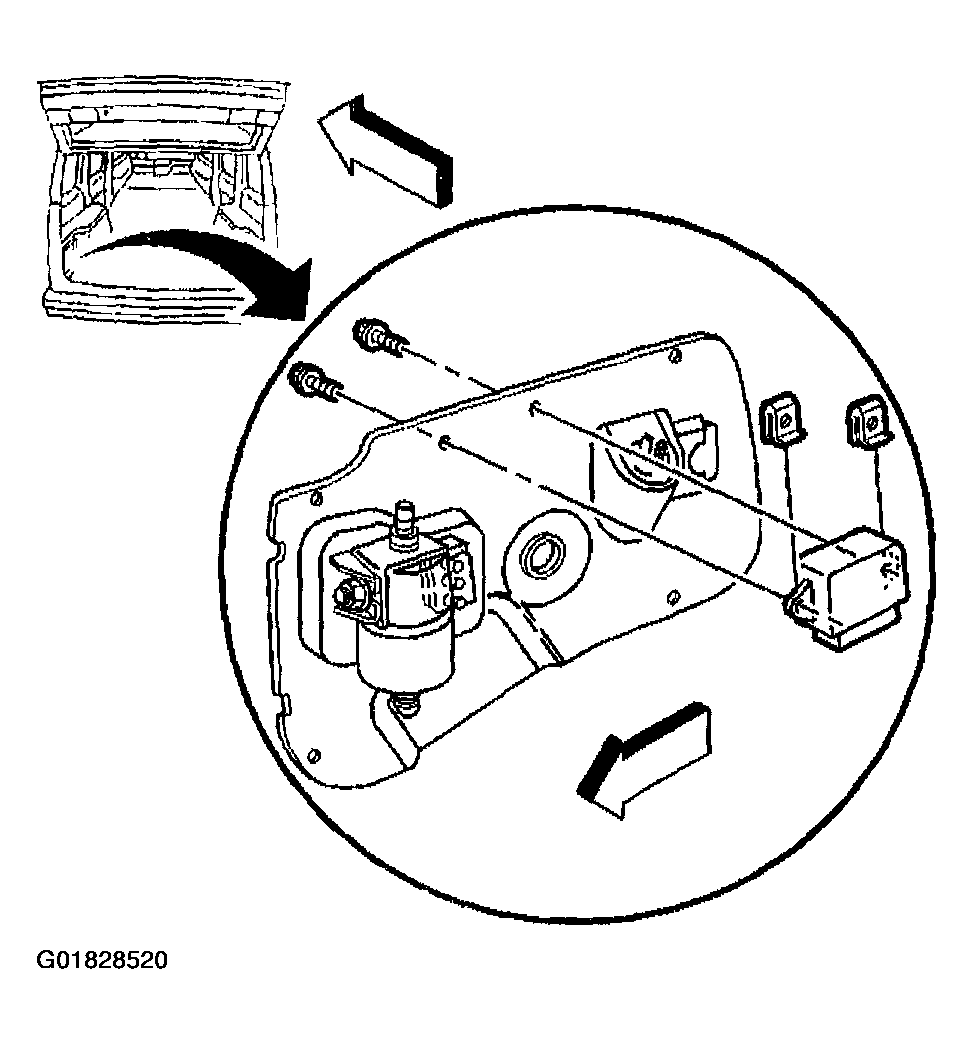

    Fig 1: Inflator Control Panel (VIN X w/ C34)
    G01828520Courtesy of GENERAL MOTORS CORP.
  1. Remove the ELC/TRAILER fuse.
  2. Remove the inflator air valve opening cover by pulling the lever inboard.
  3. Remove the inflator control panel retainers.
  4. Remove the bolts/screws from the inflation timer relay.

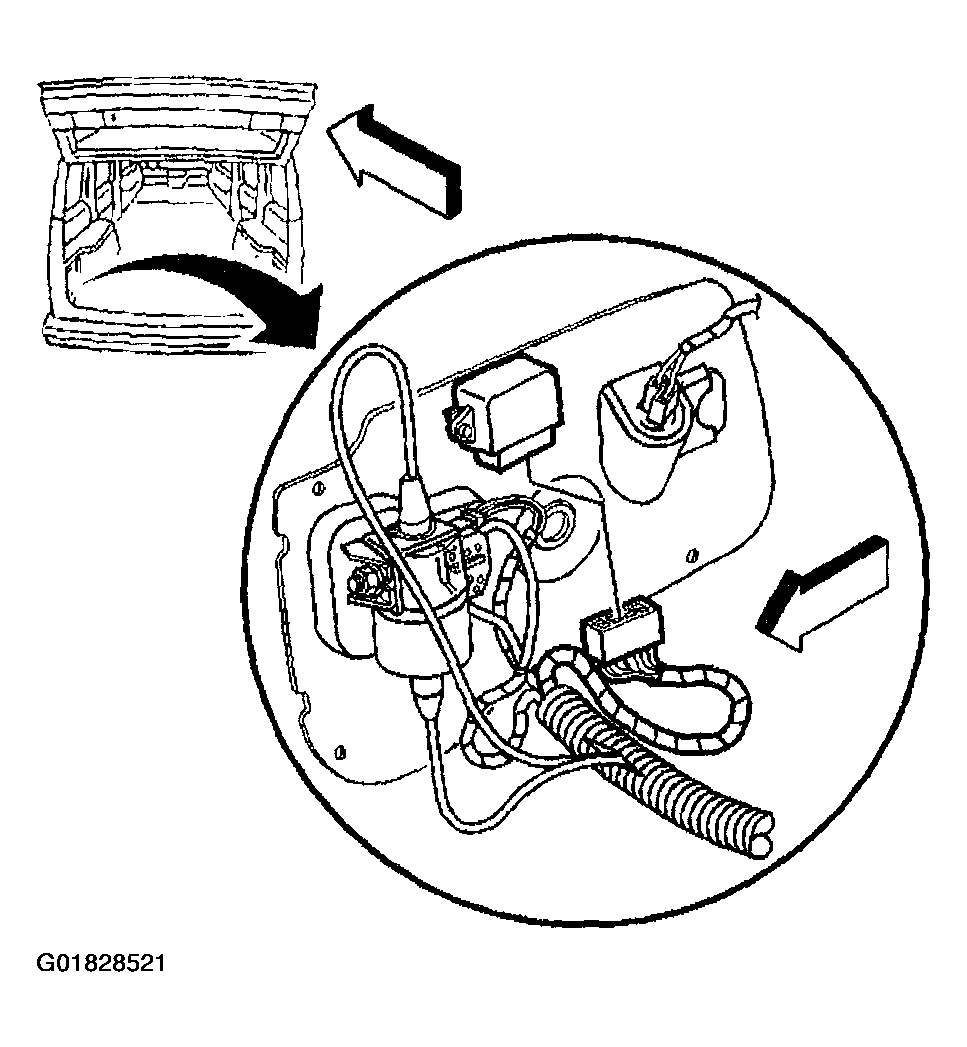

    5. Fig 2: Electrical Connector For Inflation Timer Relay (VIN X w/ C34)
    G01828521Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connector from the inflation timer relay.
