Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

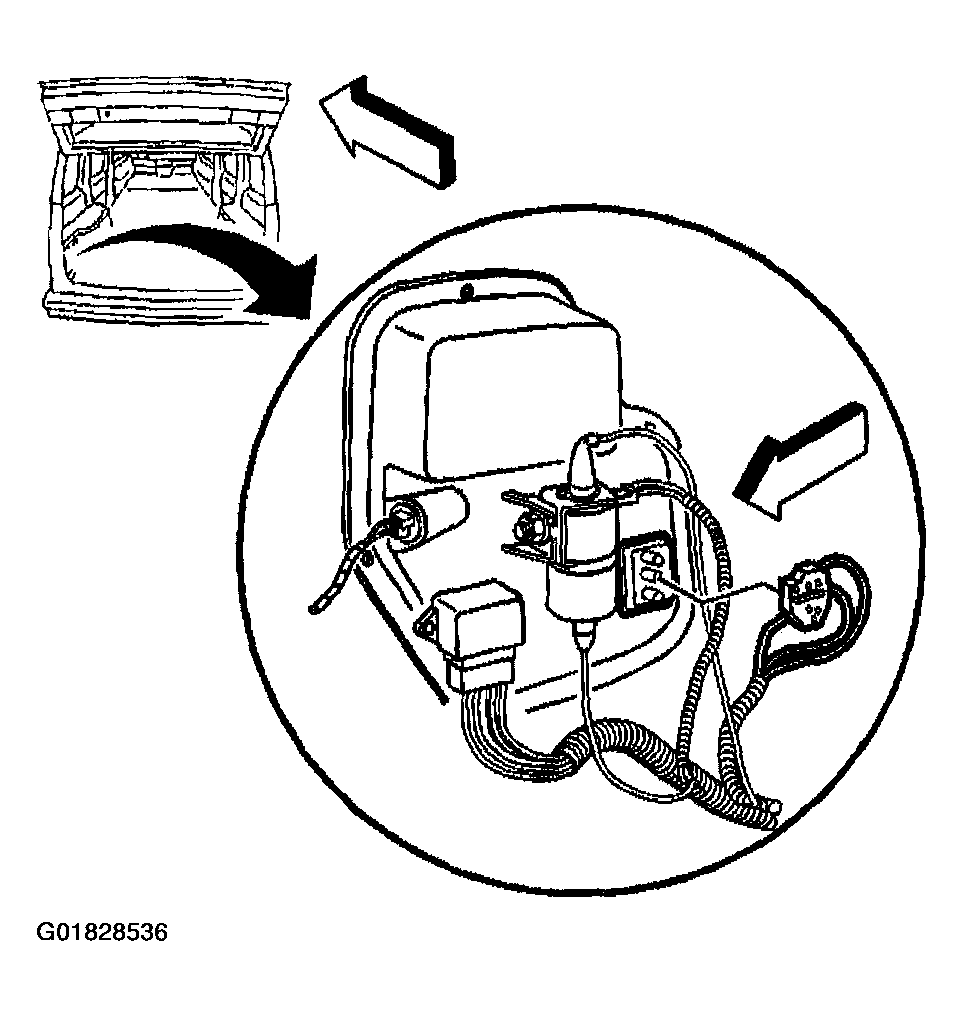

    Fig 1: Inflator Control Access Panel (VIN X w/o C34)
    G01828536Courtesy of GENERAL MOTORS CORP.
  1. Remove the inflator air valve opening cover by pulling the lever inboard.
  2. Remove the inflator control access panel retainers.
  3. Disconnect the electrical connector from the inflator switch.

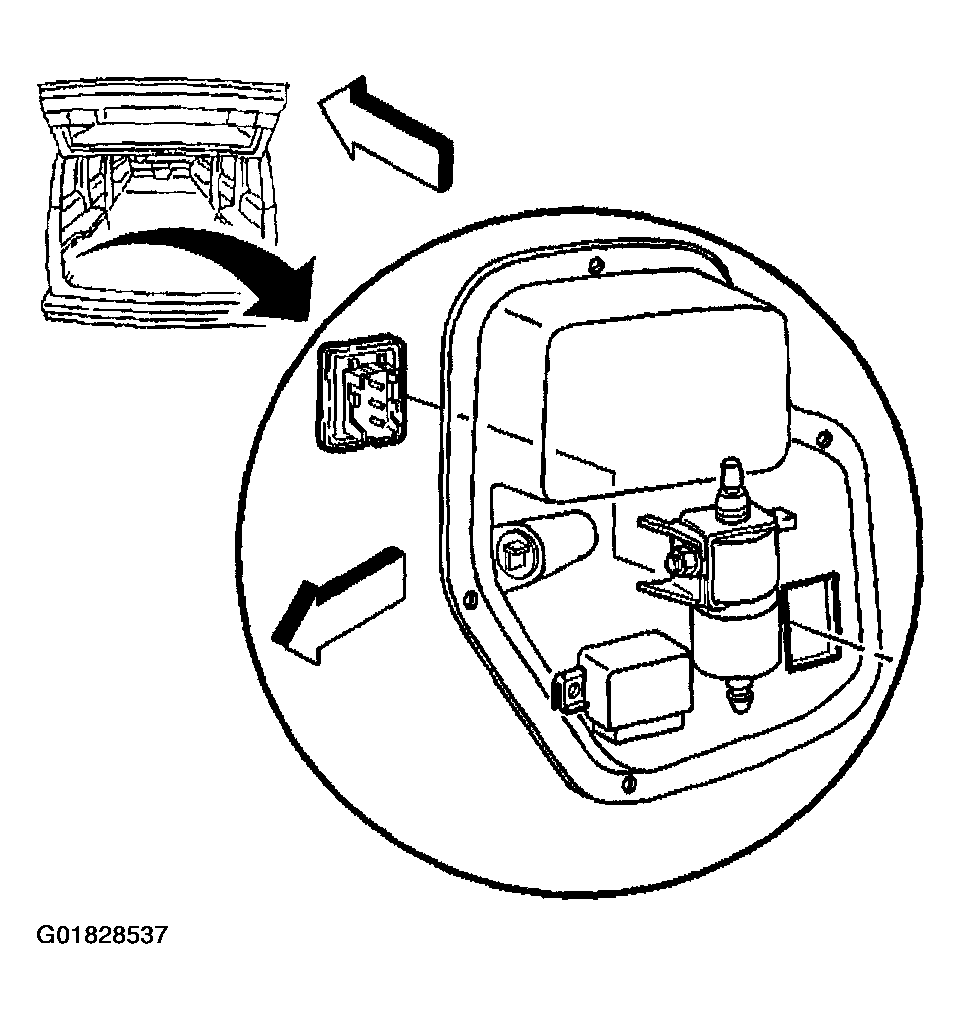

    4. Fig 2: Inflator Switch (VIN X w/o C34)
    G01828537Courtesy of GENERAL MOTORS CORP.
  4. Remove the switch from the inflator control panel by depressing the retainers on the inflator switch.
