Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

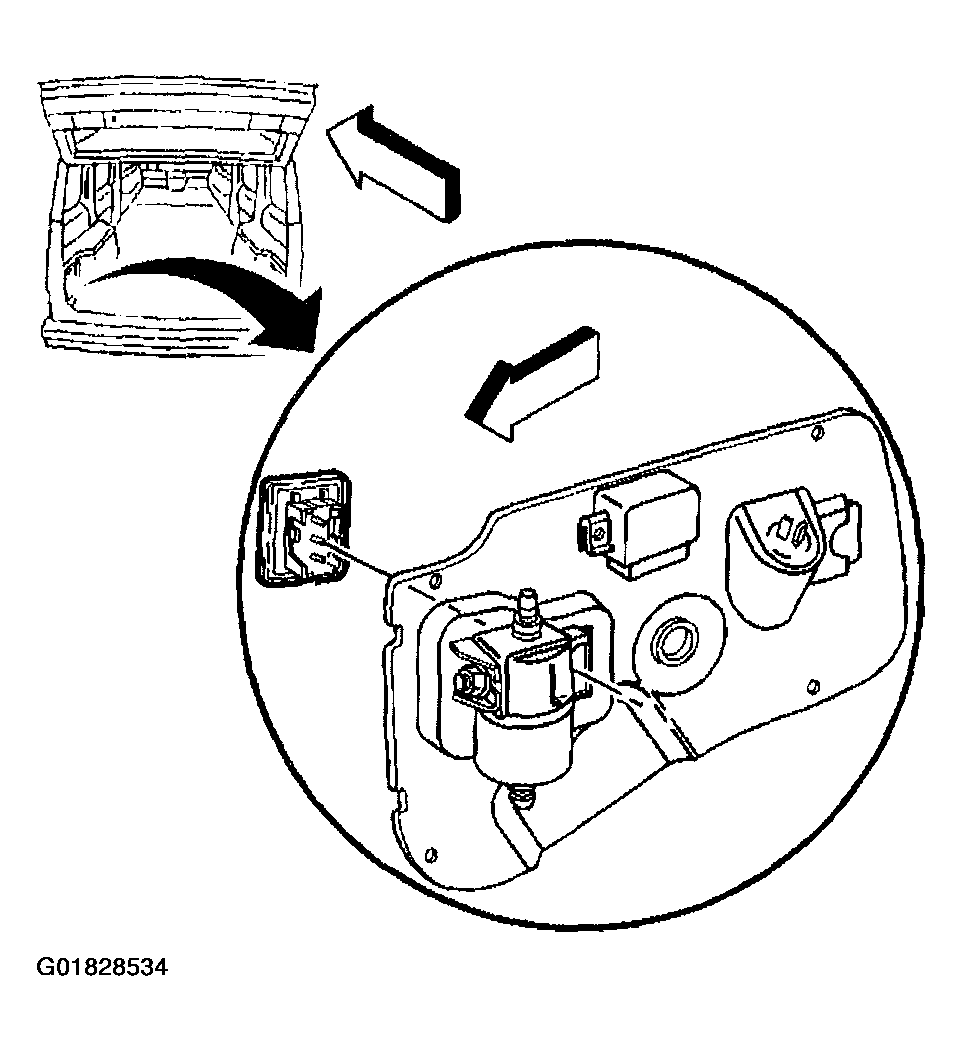

    Fig 1: Inflator Switch (VIN X w/ C34)
    G01828534Courtesy of GENERAL MOTORS CORP.
  1. Install the inflator switch to the inflator control panel snaps into place.

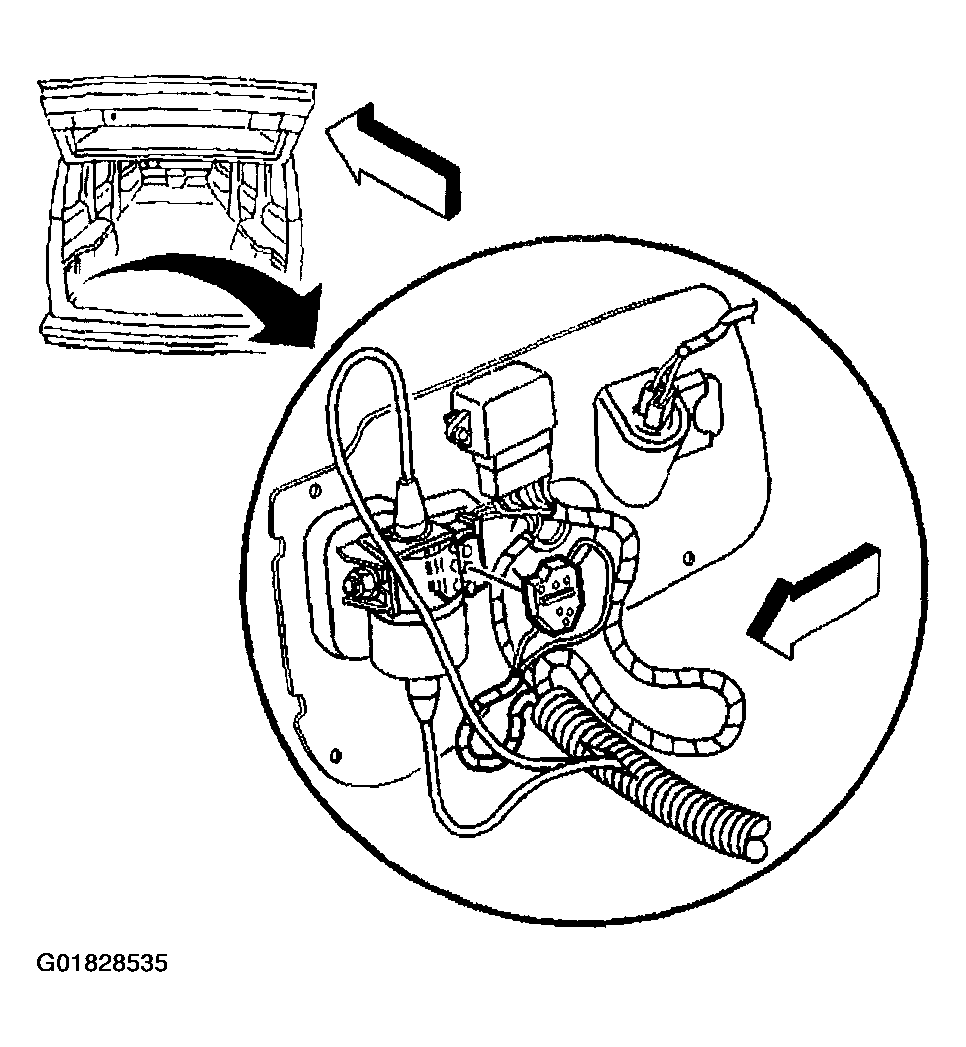

    2. Fig 2: Inflator Control Access Panel (VIN X w/ C34)
    G01828535Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors to the inflator switch.
  3. Install the inflator control access panel retainers.
  4. Install the inflator air valve opening cover by pushing the lever outboard.
