Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the automatic level control air compressor. Refer to Air Compressor Replacement .

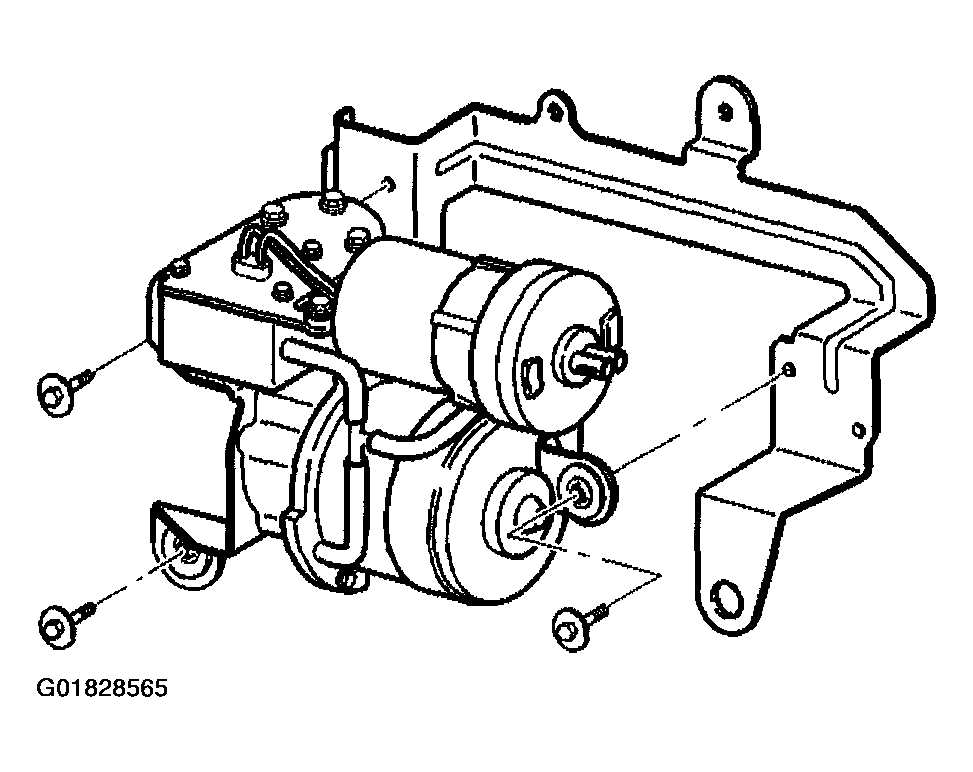

    2. Fig 1: Air Compressor Bracket
    G01828565Courtesy of GENERAL MOTORS CORP.
  2. Remove the air compressor shield.
