Automatic Level Control System Does Not Vent to Lower Vehicle (With Inflator)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

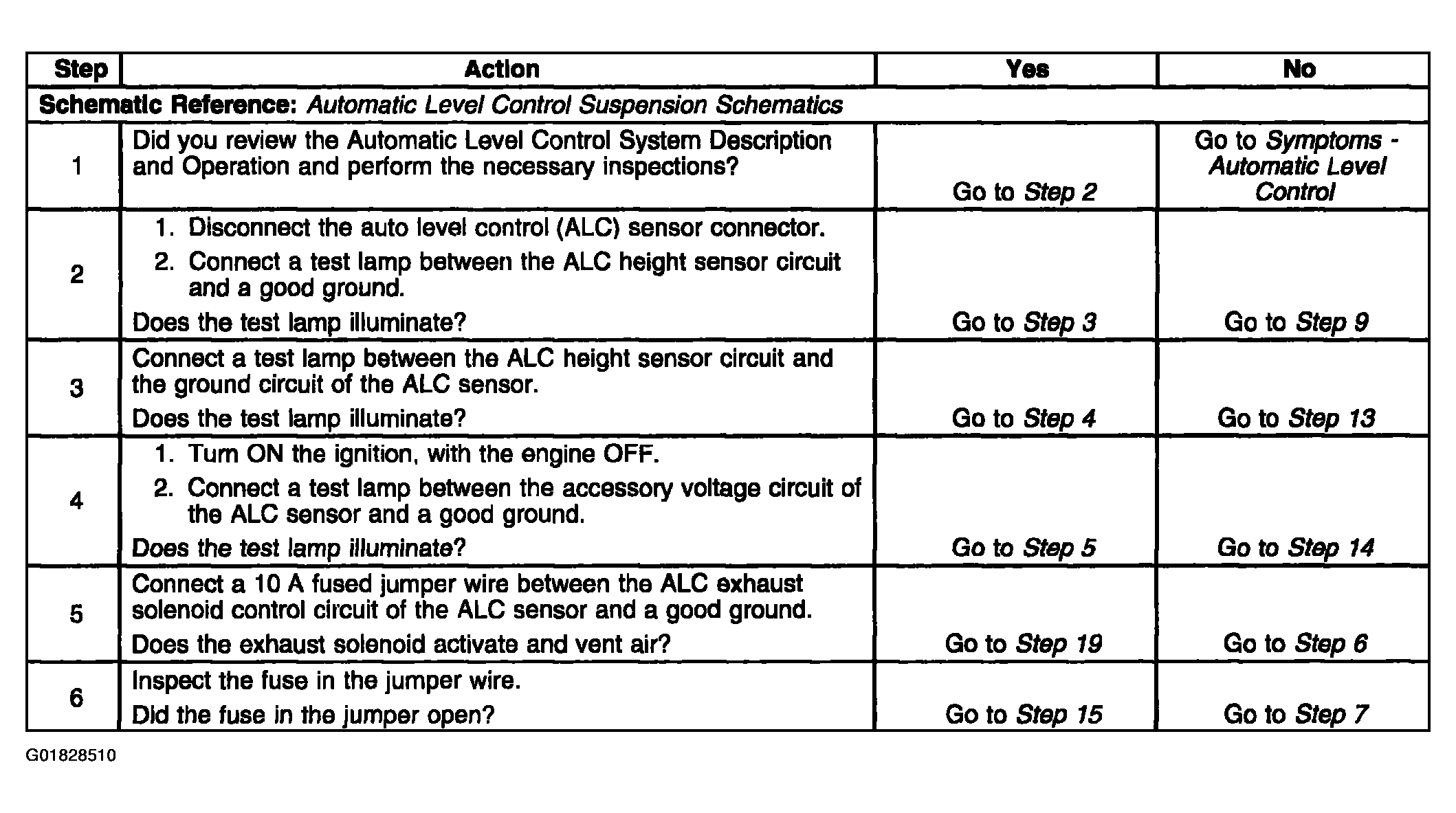

Fig 1: Automatic Level Control System Does Not Vent To Lower Vehicle (With Inflator) (1 Of 2)
G01828510Courtesy of GENERAL MOTORS CORP.

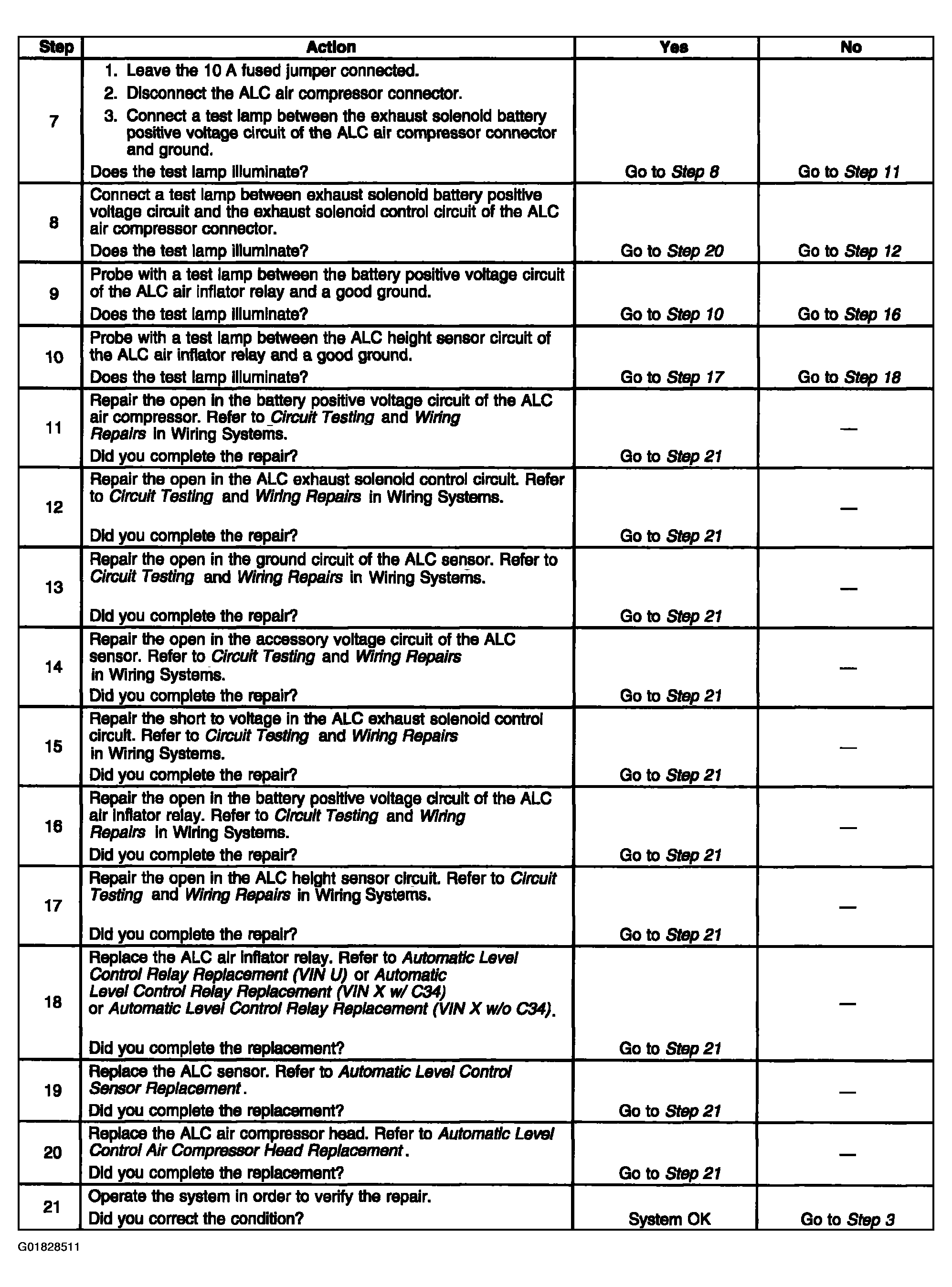

Fig 2: Automatic Level Control System Does Not Vent To Lower Vehicle (With Inflator) (2 Of 2)
G01828511Courtesy of GENERAL MOTORS CORP.
