Power Seats Schematics (Driver Side Power Seat, Ground, and Switches)

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

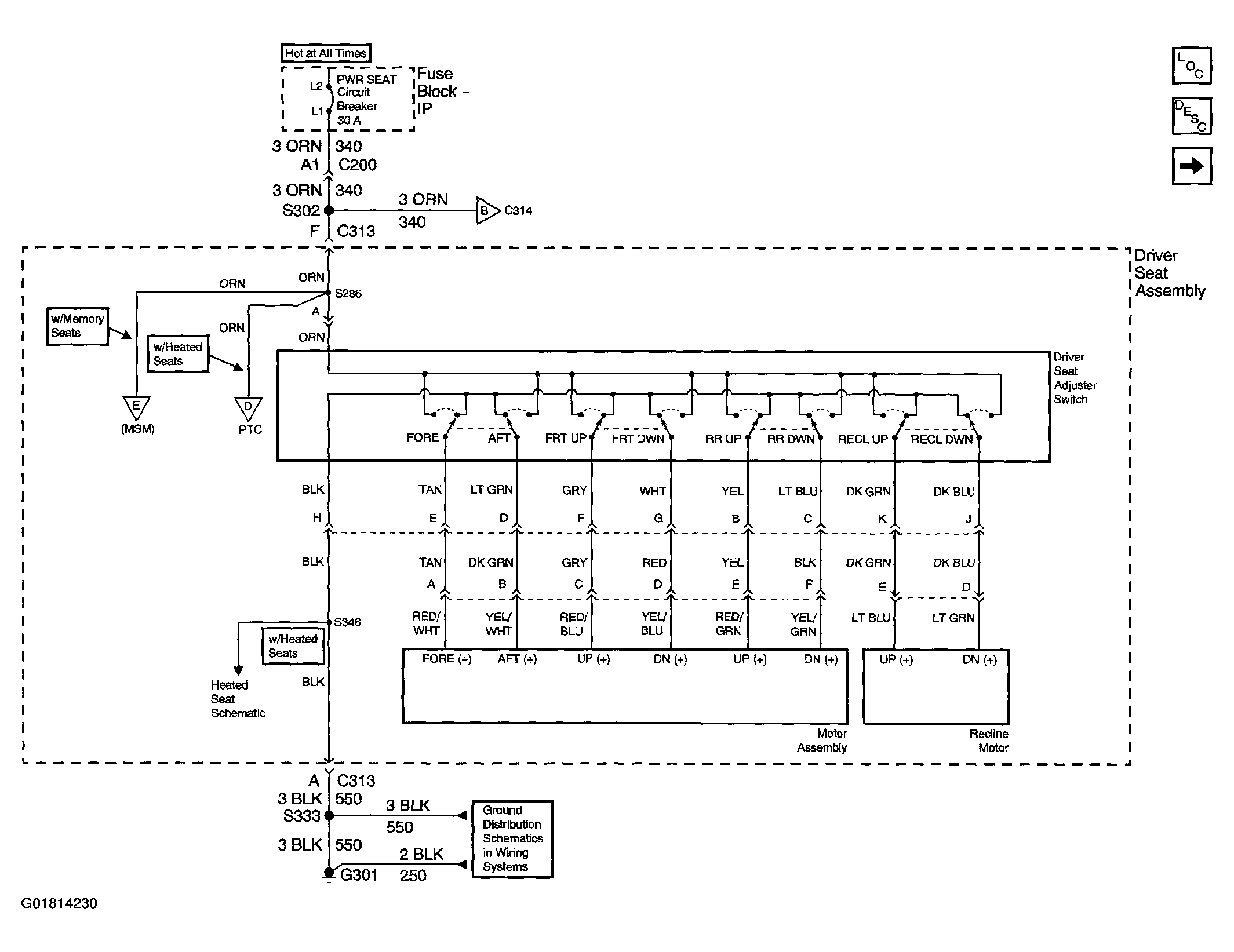

Fig 1: Power Seats Schematics (Driver Side Power Seat, Ground, And Switches)
G01814230Courtesy of GENERAL MOTORS CORP.

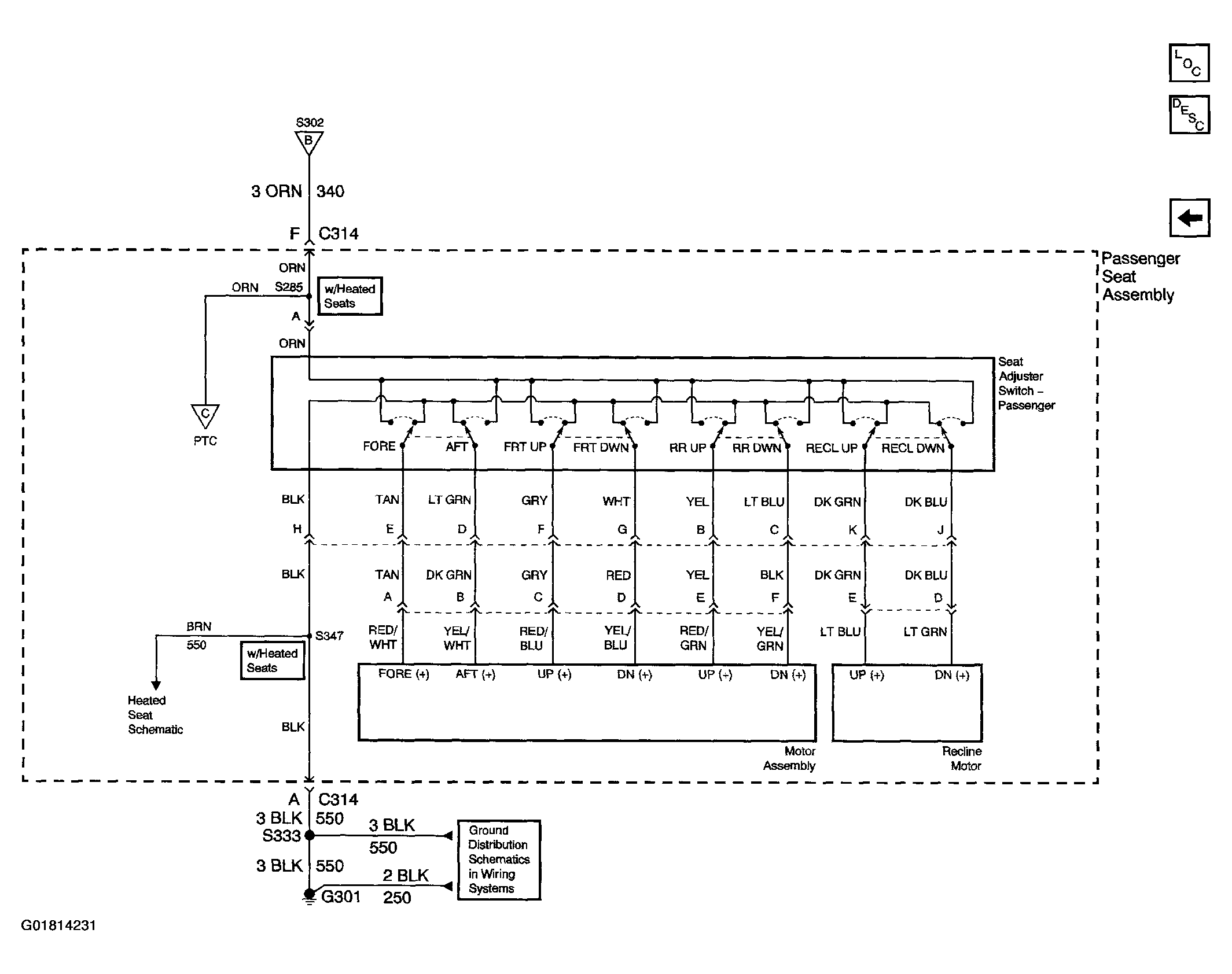

Fig 2: Power Seats Schematics (Passenger Side Power Seat, Ground, And Switches)
G01814231Courtesy of GENERAL MOTORS CORP.
