Memory Seats Schematics (Ground, Memory Seat Switch, and Memory Seat Module (MSM))

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

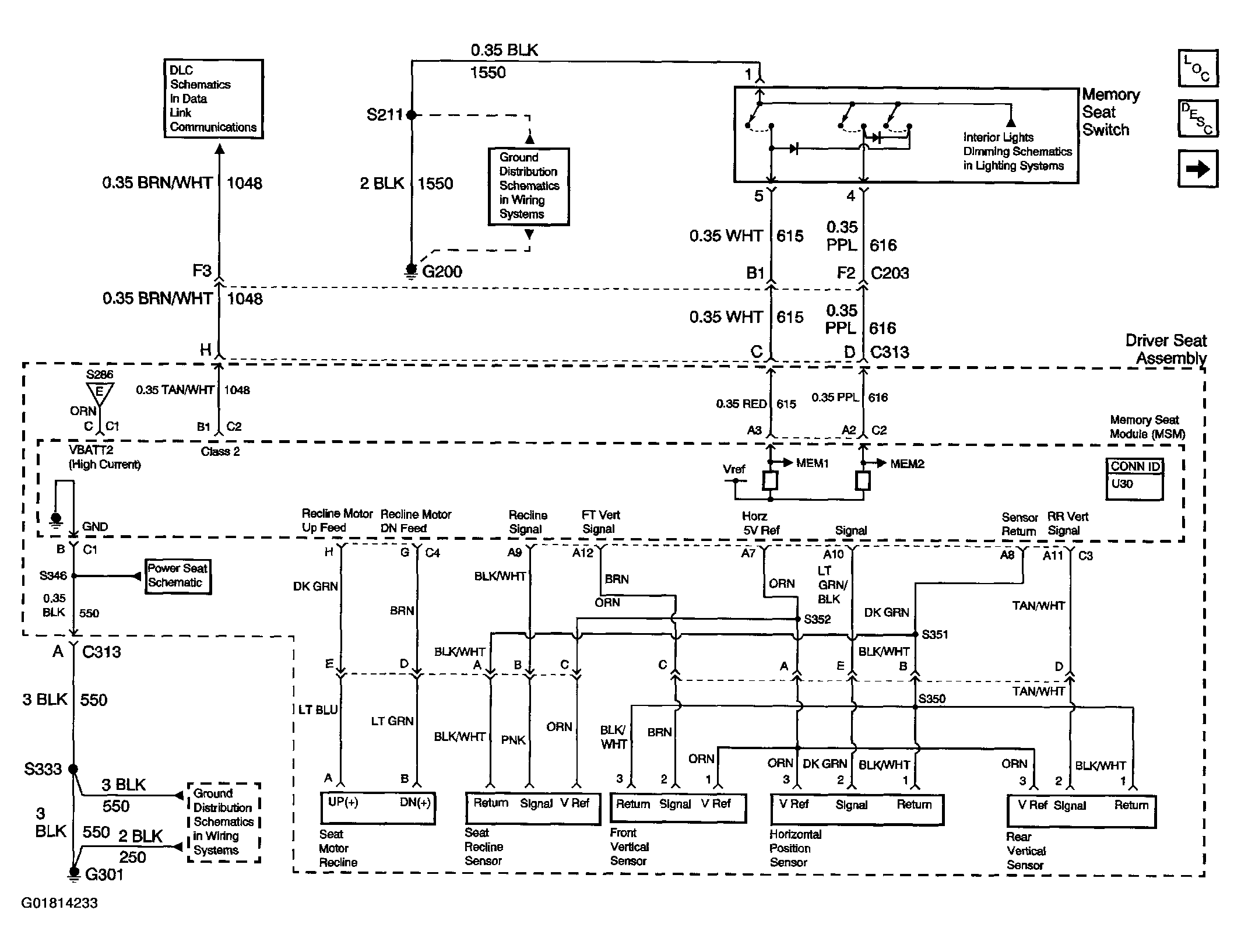

Fig 1: Memory Seats Schematics (Ground, Memory Seat Switch, And Memory Seat Module (MSM))
G01814233Courtesy of GENERAL MOTORS CORP.

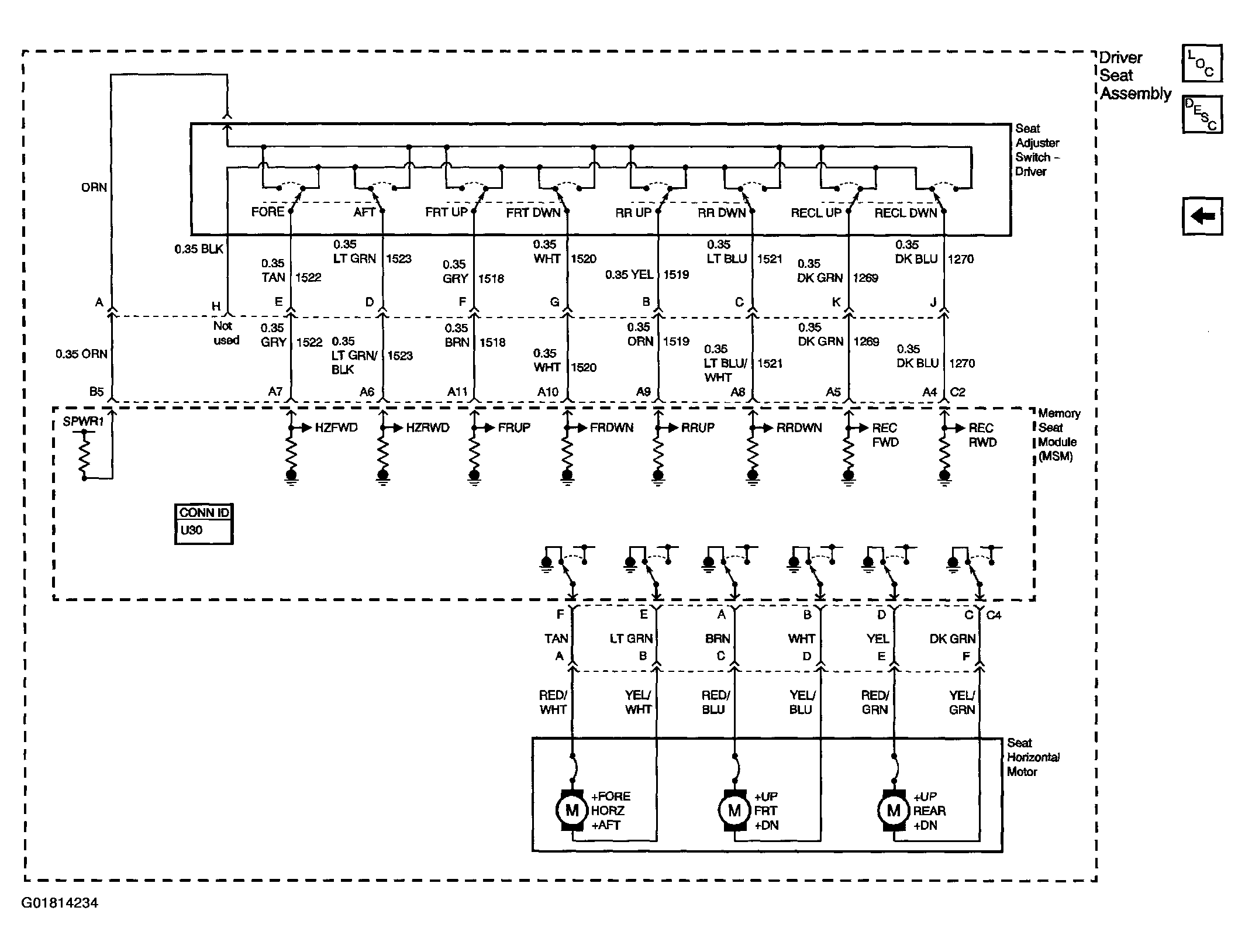

Fig 2: Memory Seats Schematics (Memory Seat Module (MSM) And Seat Horizontal Motor)
G01814234Courtesy of GENERAL MOTORS CORP.
