Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat. Refer to Seat Replacement - Rear .
  2. Remove the seat riser bolts.
  3. Remove the seat riser from the seat cushion.

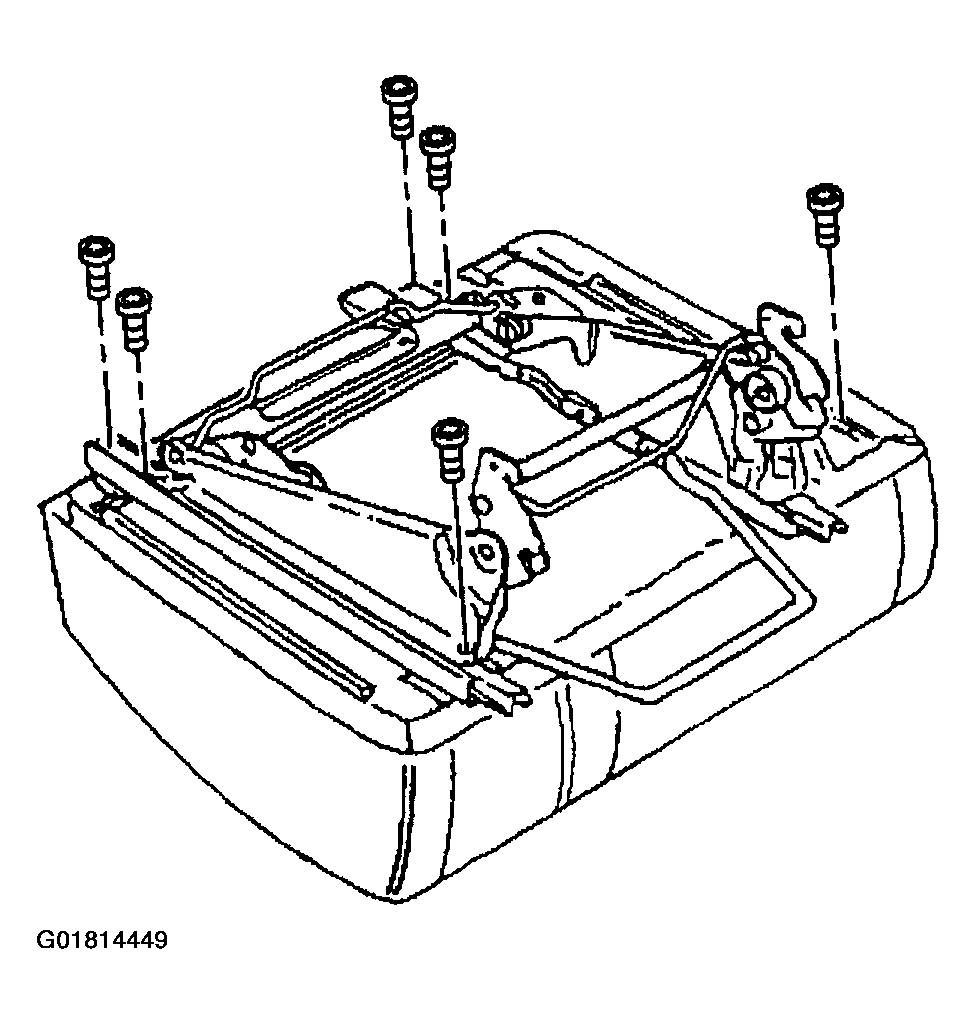

    Fig 1: Removing Seat Riser & Bolts (Rear)
    G01814449Courtesy of GENERAL MOTORS CORP.
