Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat. Refer to Seat Replacement - Rear .

    Important:  Each rear seat riser has a specific lock-out pin location, depending on the seat configuration. Note the location of the lock-out pins before removing, in order to properly reinstall the lock-out pins on the seat riser.

  2. Remove the lock-out pins from the front legs of the seat riser.

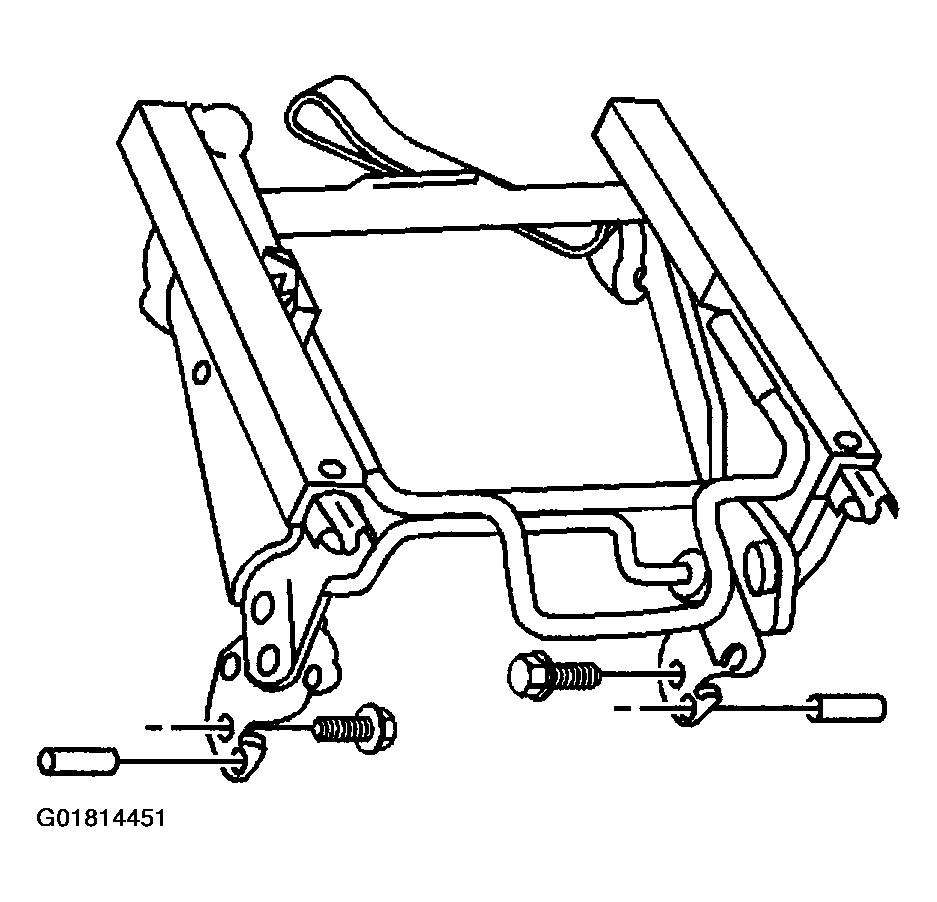

    Fig 1: Removing Lock-Out Pins From Front Legs Of Seat Riser
    G01814451Courtesy of GENERAL MOTORS CORP.
