Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to Seat Replacement - Bucket .
  2. Turn the front seat upside down on a clean, flat surface.
  3. Reach under and unfasten the front seat cushion support from the bottom of the front seat cushion frame.
  4. Remove the cushion support from the front seat.

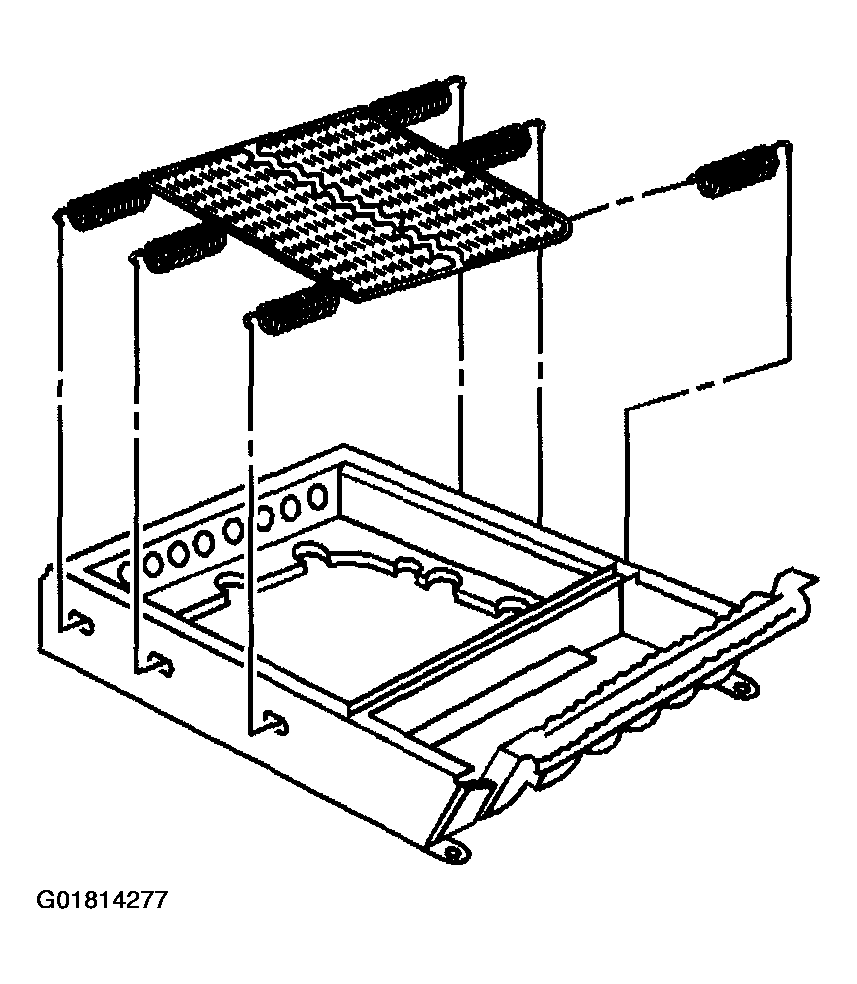

    Fig 1: Removing Cushion Support (Front)
    G01814277Courtesy of GENERAL MOTORS CORP.
