Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cushion support to the front seat.
  2. Reach under and fasten the front seat cushion support to the bottom of the front seat cushion frame.
  3. Install the front seat. Refer to Seat Replacement - Bucket .

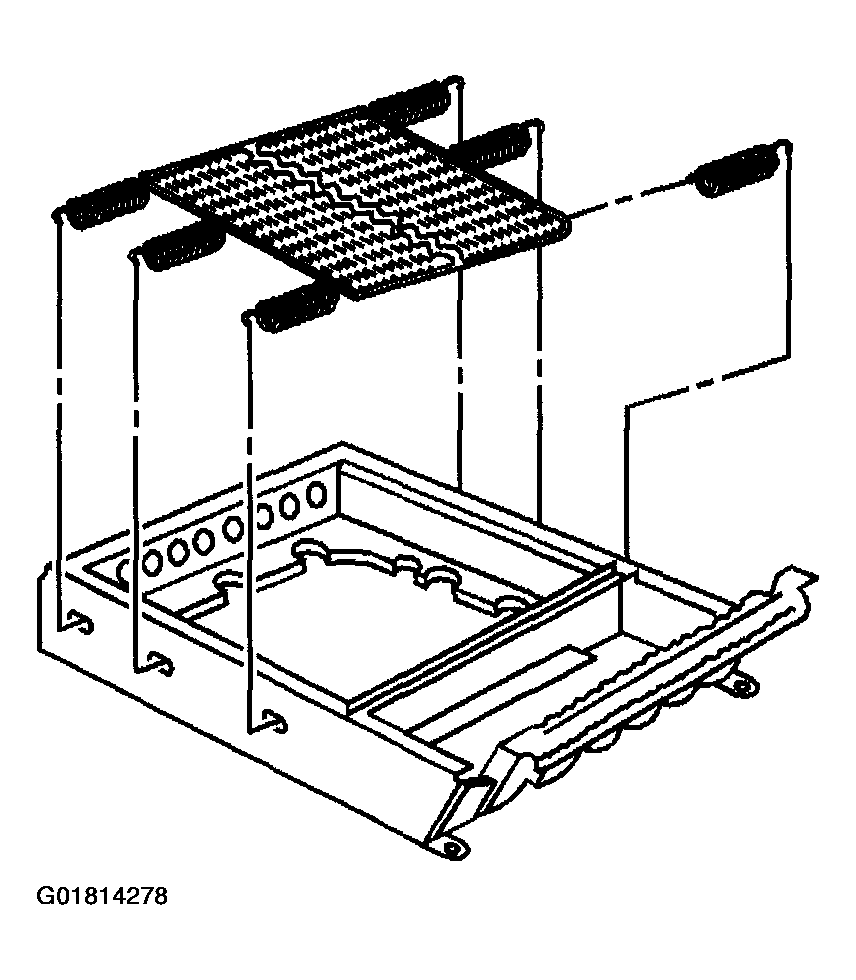

    Fig 1: Installing Cushion Support (Front)
    G01814278Courtesy of GENERAL MOTORS CORP.
