Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the second row 60/40 split bench seat. Refer to Seat Replacement - Rear .
  2. Remove the finish covers. Refer to Seat Trim Replacement - Side .
  3. Remove the seat riser. Refer to Seat Riser Replacement - Rear .
  4. Remove the rear seat adjuster. Refer to Seat Adjuster Replacement - Rear .
  5. Remove the recliner bolts.

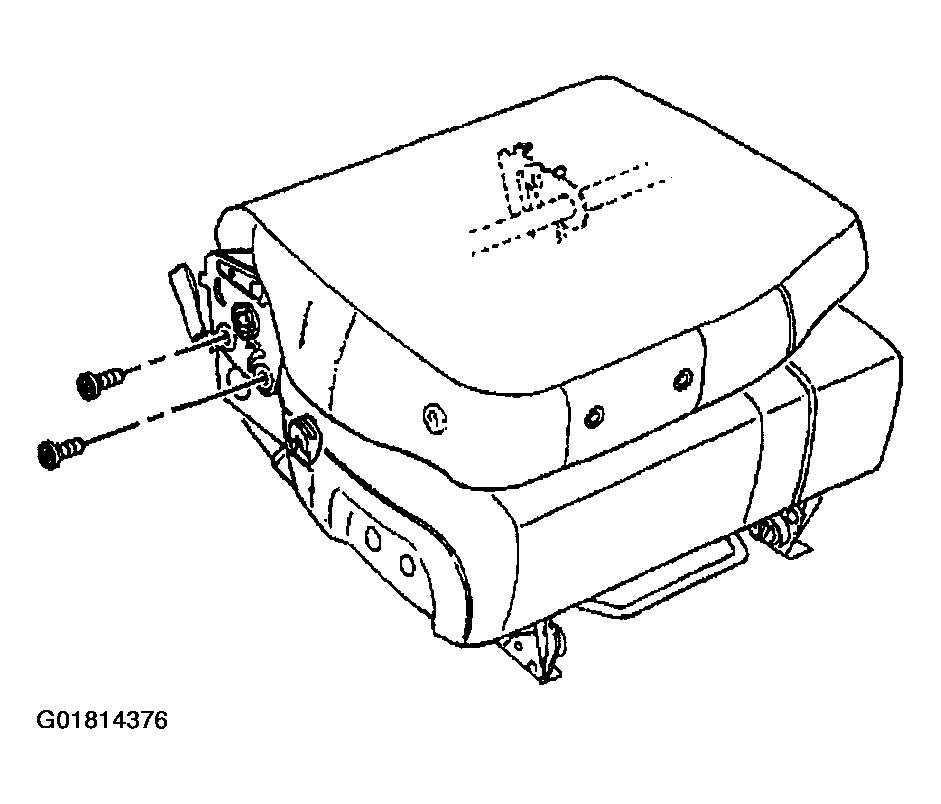

    Fig 1: Removing Rear Seat Adjuster & Recliner Bolts (AT5 50/50 Split Bench)
    G01814376Courtesy of GENERAL MOTORS CORP.
  6. Separate the rear seat cushion from the rear seat back.
    Fig 2: Separating Rear Seat Cushion From Rear Seat Back (AT5 50/50 Split Bench)
    G01814377Courtesy of GENERAL MOTORS CORP.
  7. Release the J retainers (1) that secure the seat cushion cover to the seat frame.

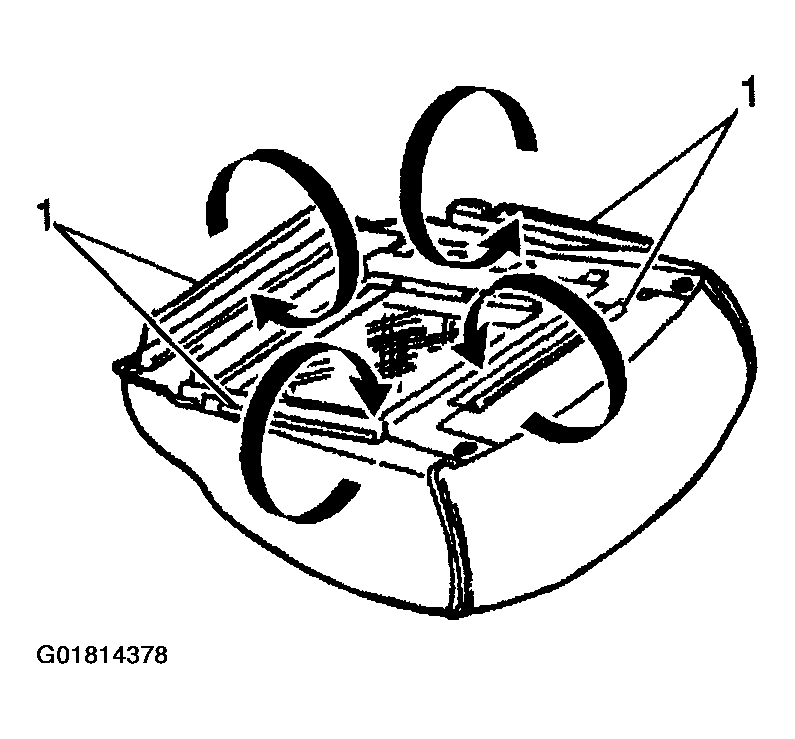

    Fig 3: Removing J Retainers & Seat Cushion Cover (AT5 50/50 Split Bench)
    G01814378Courtesy of GENERAL MOTORS CORP.
  8. Remove the rear seat cushion cover retainer rings (2).

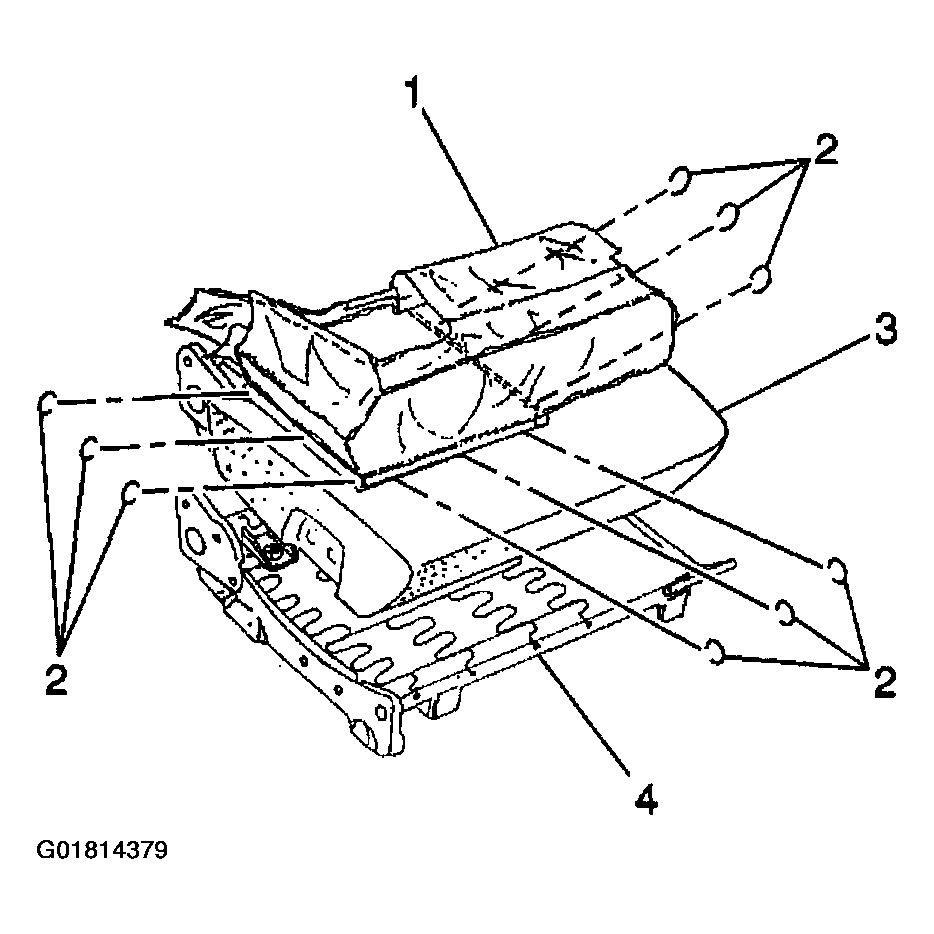

    Fig 4: Removing Rear Seat Cushion Cover & Foam Pad (AT5 50/50 Split Bench)
    G01814379Courtesy of GENERAL MOTORS CORP.
  9. Separate the rear seat cushion cover (1) away from the foam pad (3) while separating the hook and loop retainers.
  10. Remove the rear seat cushion cover (1) from the foam pad.
