Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the second row captains chair. Refer to Seat Replacement - Rear .
  2. Remove the finish covers. Refer to Seat Trim Replacement - Side .
  3. Remove the seat riser. Refer to Seat Riser Replacement - Rear .
  4. Remove the rear seat adjuster. Refer to Seat Adjuster Replacement - Rear .
  5. Remove the recliner bolts.
  6. Separate the rear seat cushion from the rear seat back.
    Fig 1: Removing Rear Seat Back Cushion, Recliner & Bolts (AQ4 - Captains Chair)
    G01814339Courtesy of GENERAL MOTORS CORP.
  7. Remove the seat cushion cover retainers (1) from the seat frame.
    Fig 2: Removing Seat Cushion Cover & Retainers (AQ4 - Captains Chair)
    G01814340Courtesy of GENERAL MOTORS CORP.

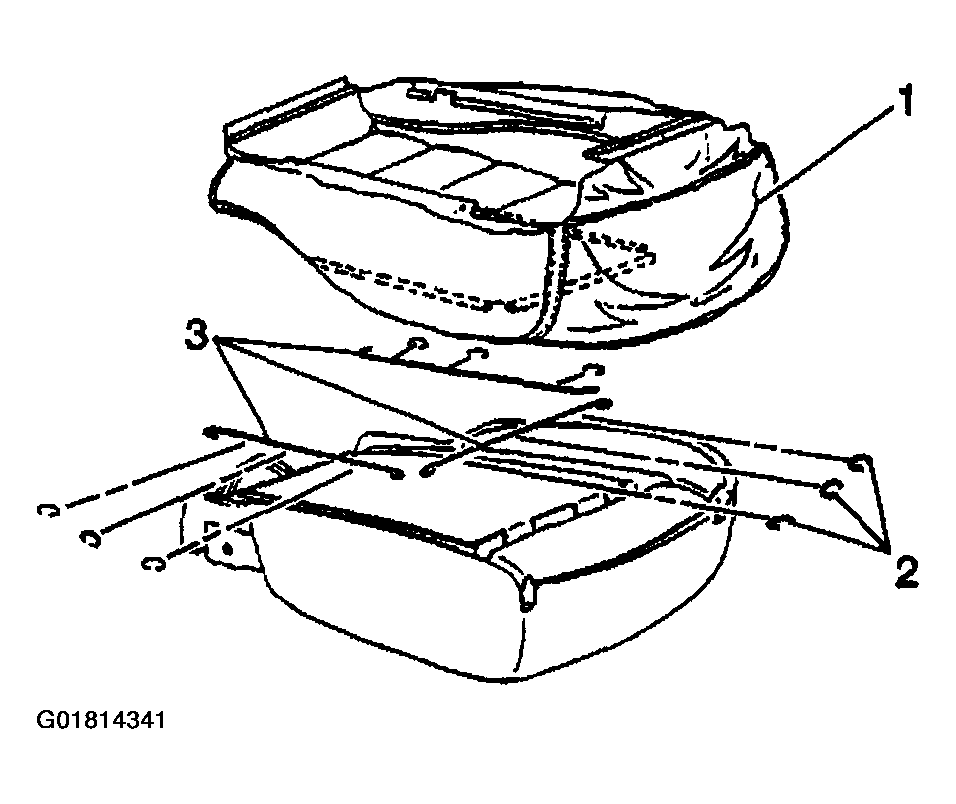

  8. Remove the rear seat cushion cover retainer rings (2).
  9. Separate the rear seat cushion cover away from the foam pad while separating the hook and loop retainers.
  10. Remove the rear seat cushion cover from the foam pad.
    Fig 3: Removing Rear Seat Cushion Cover & Retainer Rings (AQ4 - Captains Chair)
    G01814341Courtesy of GENERAL MOTORS CORP.
