Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat cushion cover (1) to the foam pad (3).
  2. Secure the rear seat cushion cover (1) to the foam pad (3) using retainer rings and the hook and loop retainers.

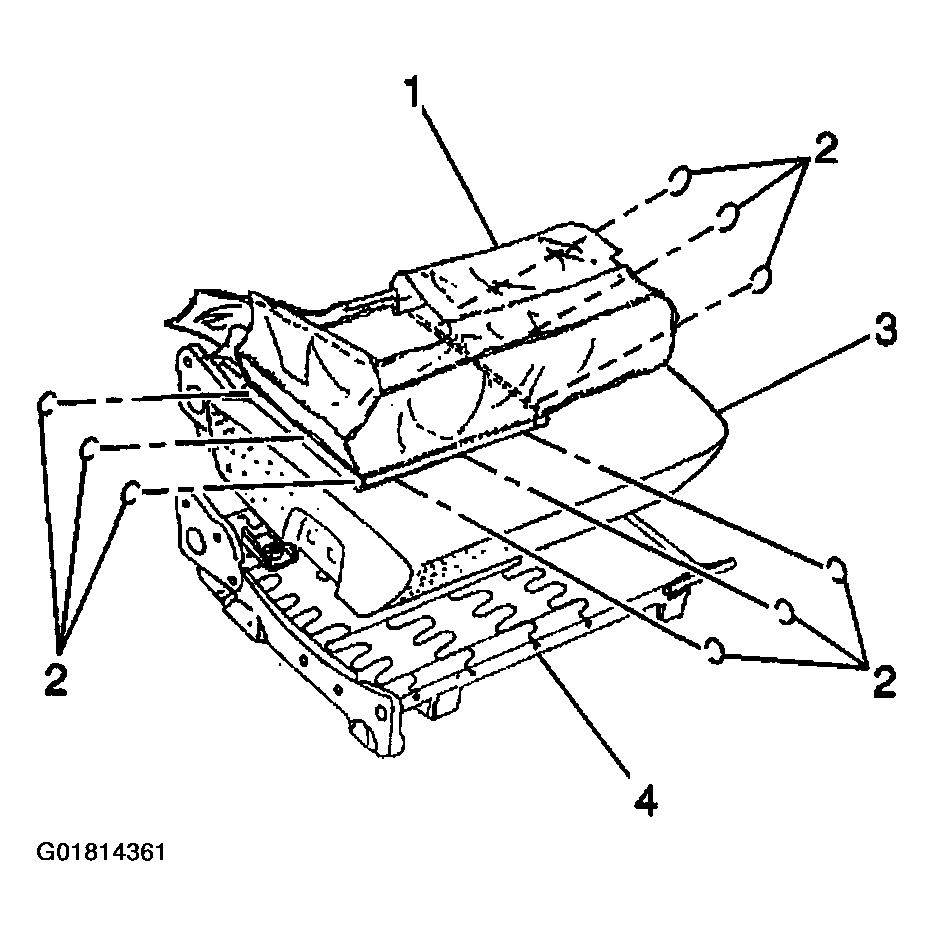

    Fig 1: Installing Rear Seat Cushion Cover & Foam Pad (AM9 - 50/50 Split Bench)
    G01814361Courtesy of GENERAL MOTORS CORP.
  3. Install the J retainers (1) to secure the seat cushion cover to the seat frame.

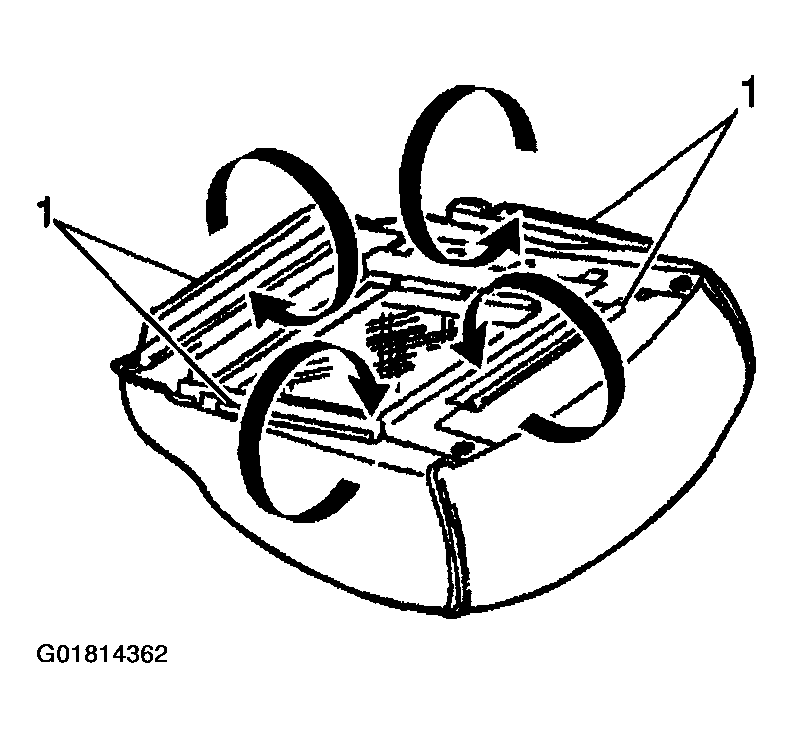

    Fig 2: Installing J Retainers & Seat Cushion Cover (AM9 - 50/50 Split Bench)
    G01814362Courtesy of GENERAL MOTORS CORP.
  4. Install the rear seat cushion to the rear seat back.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the recliner bolts.

    Tighten

    Tighten the bolts to 32 N.m (24 lb ft).

  6. Install the rear seat adjuster. Refer to Seat Adjuster Replacement - Rear .
  7. Install the seat riser. Refer to Seat Riser Replacement - Rear .
  8. Install the finish covers. Refer to Seat Trim Replacement - Side .
  9. Install the second row 50/50 split bench seat. Refer to Seat Replacement - Rear .

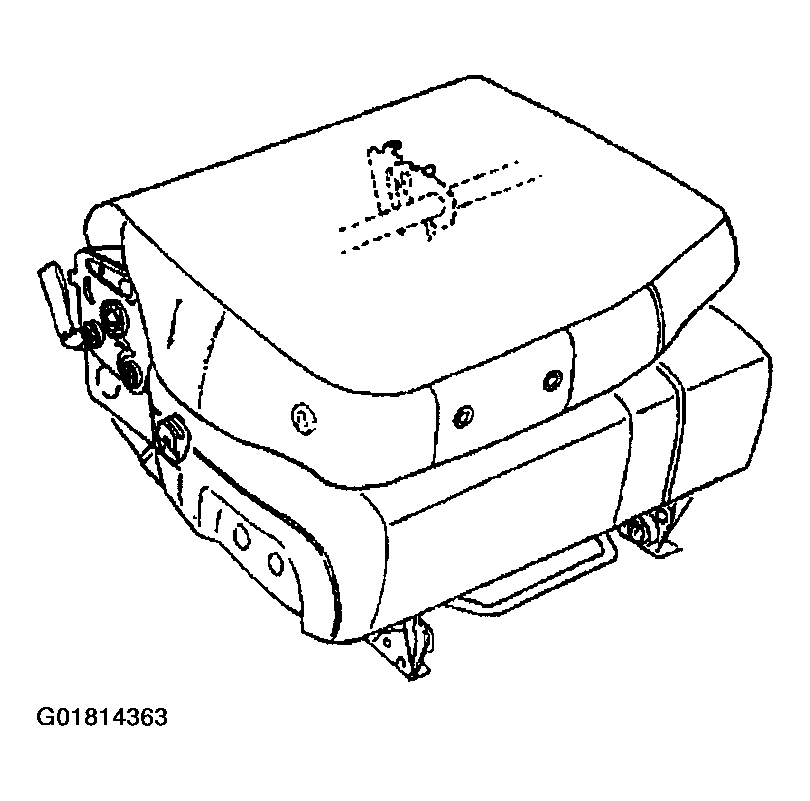

    Fig 3: Installing Recliner Bolts (AM9 - 50/50 Split Bench)
    G01814363Courtesy of GENERAL MOTORS CORP.
