Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat cushion cover (1) to the foam pad.
  2. Secure the rear seat cushion cover to the foam pad using retainer rings (2) and the hook and loop retainers.

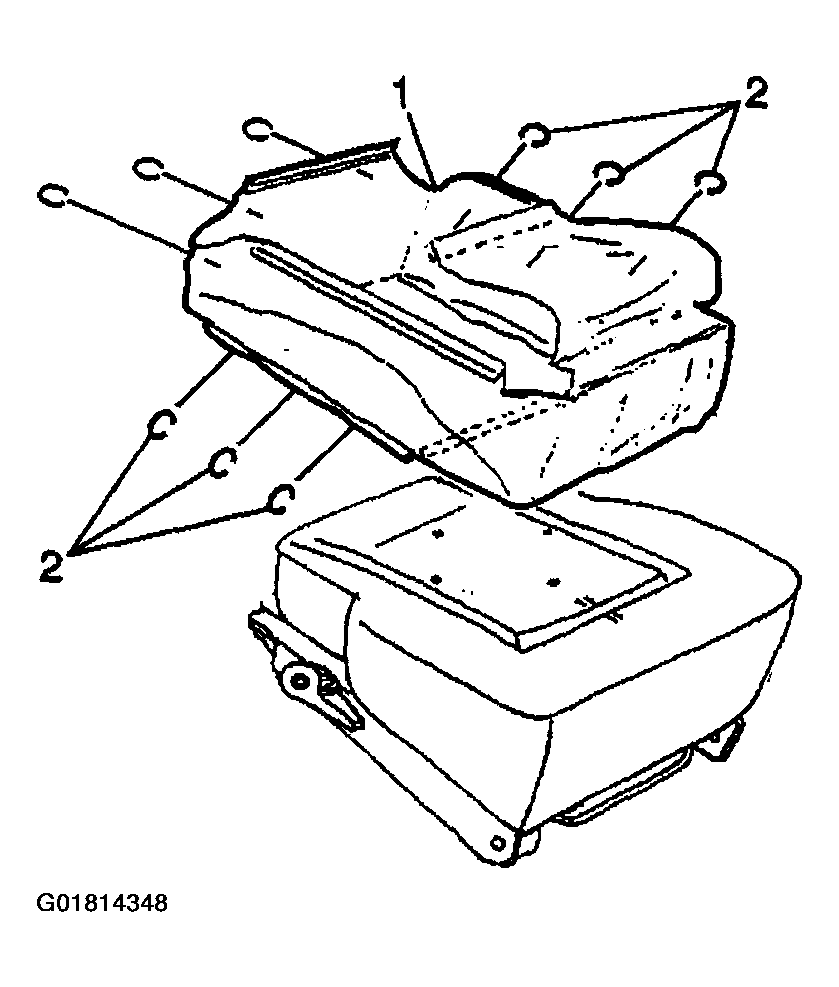

    Fig 1: Installing Rear Seat Cushion Cover & Retainer Rings (AL4 - Rear Bucket)
    G01814348Courtesy of GENERAL MOTORS CORP.
  3. Install the seat cushion cover retainers (1) to the seat frame.

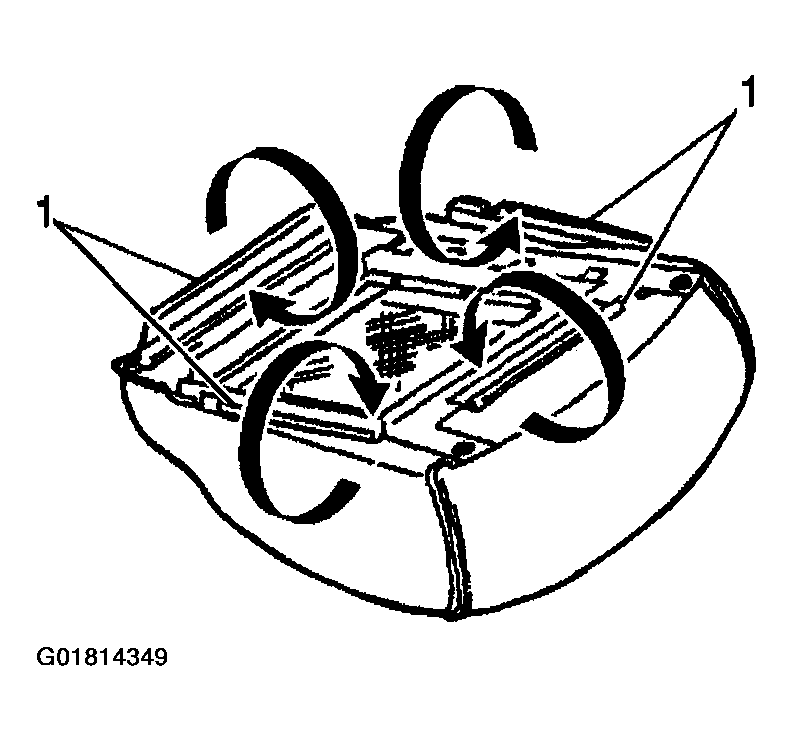

    Fig 2: Installing Seat Cushion Cover & Retainers (AL4 - Rear Bucket)
    G01814349Courtesy of GENERAL MOTORS CORP.
  4. Install the rear seat cushion to the rear seat back.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the recliner bolts.

    Tighten

    Tighten the bolts to 32 N.m (24 lb ft).

  6. Install the rear seat adjuster. Refer to Seat Adjuster Replacement - Rear .
  7. Install the seat riser. Refer to Seat Riser Replacement - Rear .
  8. Install the finish covers. Refer to Seat Trim Replacement - Side .
  9. Install the second row bucket seat. Refer to Seat Replacement - Rear .

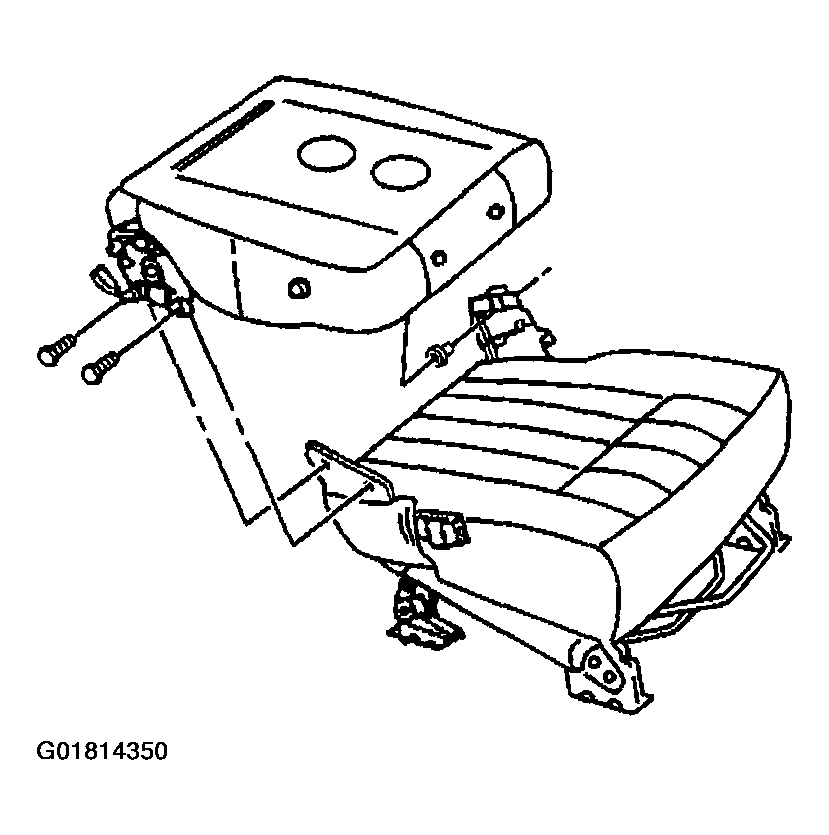

    Fig 3: Installing Rear Seat Cushion, Rear Seat Back, Recliner & Bolts (AL4 - Rear Bucket)
    G01814350Courtesy of GENERAL MOTORS CORP.
