Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to Seat Replacement - Bucket .
  2. Remove the map pocket net, if equipped. Refer to Map Pocket Net Replacement - Front Seat .
  3. Remove the cup holder, if equipped. Refer to Cupholder Replacement - Front Seat .
  4. Remove the finish covers. Refer to Seat Adjuster Track Cover Replacement - Front .
    Fig 1: Removing Finish Covers & Screws
    G01814269Courtesy of GENERAL MOTORS CORP.
  5. Remove the front seat buckle with pretensioner. Refer to SEAT BELT BUCKLE PRETENSIONER REPLACEMENT - L or SEAT BELT BUCKLE PRETENSIONER REPLACEMENT - R .
  6. Remove the seat adjuster mechanism from the seat frame.

    Refer to the appropriate sections:

  7. Unsnap the recliner covers starting with the rear portion of the cover.
  8. Remove the recliner bolts.
  9. Separate the seat cushion from the seat back.
  10. Remove the J retainer (1) from the bottom of the seat cushion.
    Fig 2: Removing J Retainer From Bottom Of Seat Cushion
    G01814270Courtesy of GENERAL MOTORS CORP.
  11. Remove the seat cover retainer rings (hog rings) (2).
  12. Remove the seat cushion cover (1).

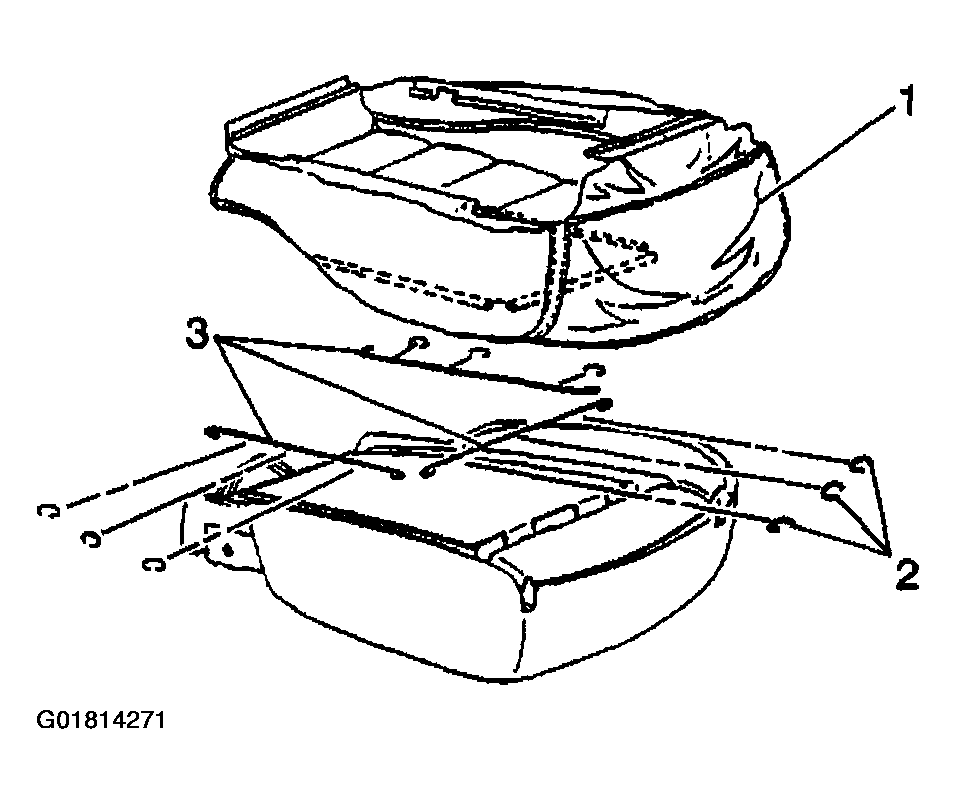

    Fig 3: Removing Seat Cover & Retainer Rings
    G01814271Courtesy of GENERAL MOTORS CORP.
