Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Install the seat cushion cover (1).
Install the seat cover retainer rings (hog rings) (2).
Install the J retainer (1) at the bottom of the seat cushion.

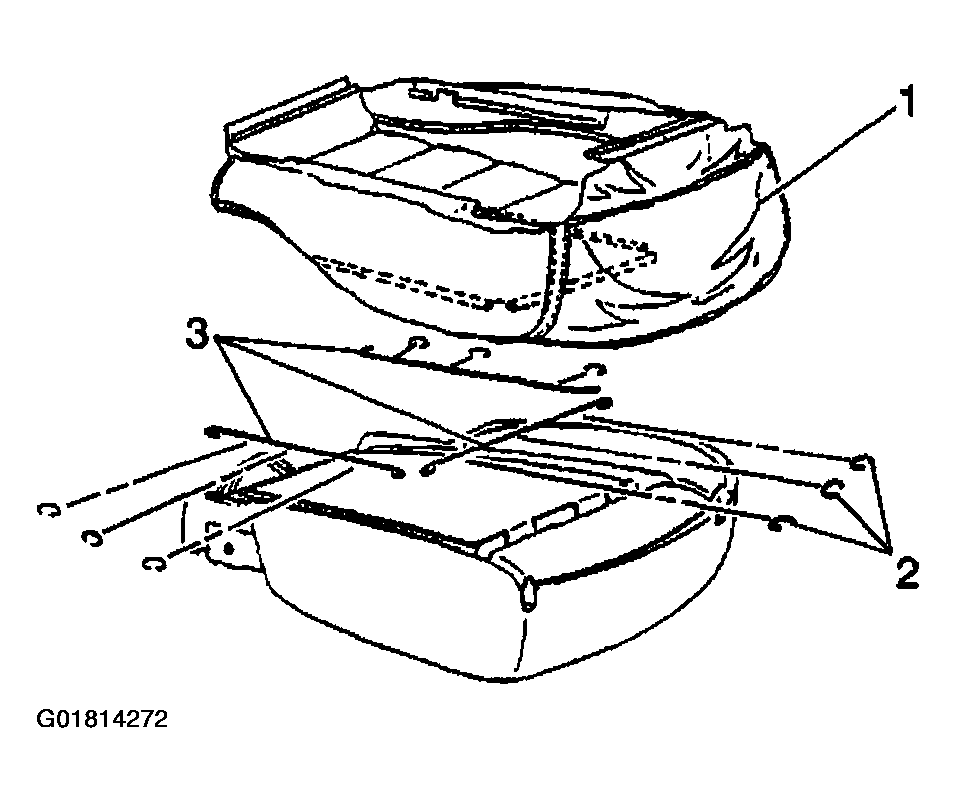

Fig 1: Installing Seat Cover & Retainer Rings
Courtesy of GENERAL MOTORS CORP.
Install the seat cushion to the seat back.

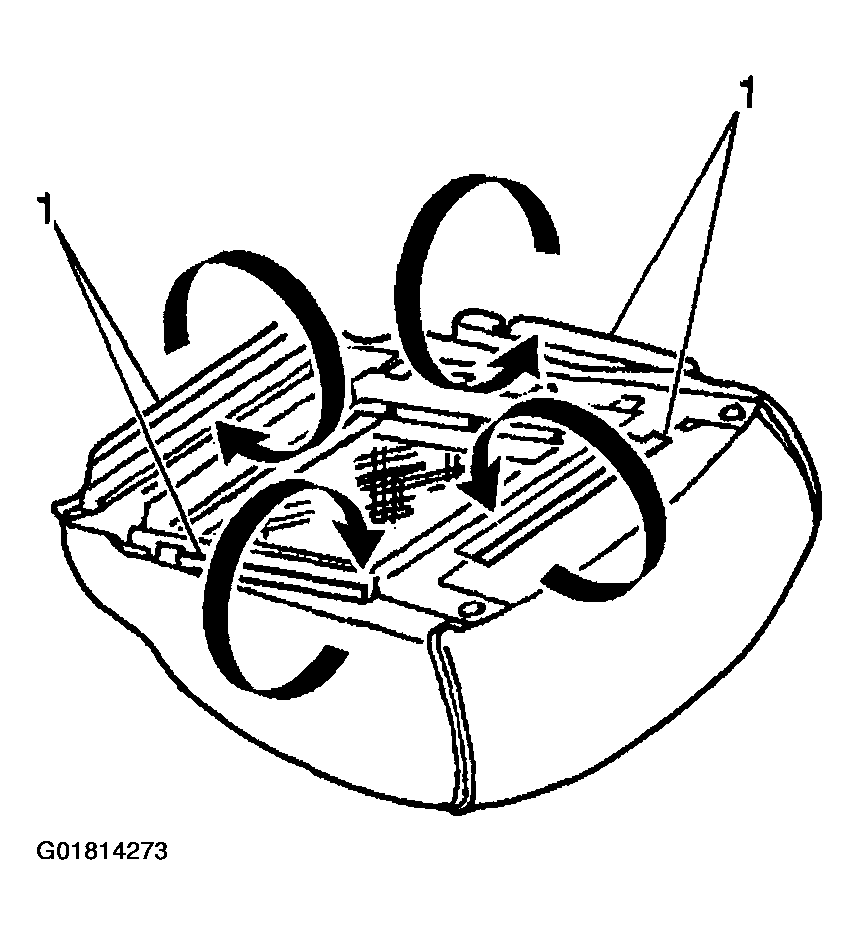

Fig 2: Installing J Retainer To Bottom Of Seat Cushion
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the front seat recliner bolts.
Tighten

Tighten the bolts to 48 N.m (35 lb ft).
Snap the recliner covers over the recliner mechanism.
Install the seat adjuster mechanism to the seat frame.
Refer to the appropriate sections:
- Front seat adjuster, 2-way Manual, 4-way Manual, if equipped, Refer to Seat Adjuster Mechanism Replacement - Manual (Two - Way Manual) or Seat Adjuster Mechanism Replacement - Manual (Four - Way Manual) .
- Front Seat Adjuster, 6-way Power, if equipped. Refer to Seat Adjuster Mechanism Replacement - Power .
Fig 3: Installing Finish Covers & Screws
Courtesy of GENERAL MOTORS CORP.
Install the front seat buckle with Pretensioner. Refer to SEAT BELT BUCKLE PRETENSIONER REPLACEMENT - LH and or SEAT BELT BUCKLE PRETENSIONER REPLACEMENT - RH .
Install the finish covers. Refer to Seat Adjuster Track Cover Replacement - Front .
Install the cup holder, if equipped. Refer to Cupholder Replacement - Front Seat .
Install the map pocket net, if equipped. Refer to Map Pocket Net Replacement - Front Seat .
Install the front seat. Refer to Seat Replacement - Bucket .
