Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat. Refer to Seat Replacement - Rear .
  2. Remove the recliner covers. Refer to Seat Back Recliner Cover Replacement - Rear .
  3. Remove the seat back cover retainer at the bottom edge of the rear seat back.
  4. Remove the recliner bolts from the seat cushion.

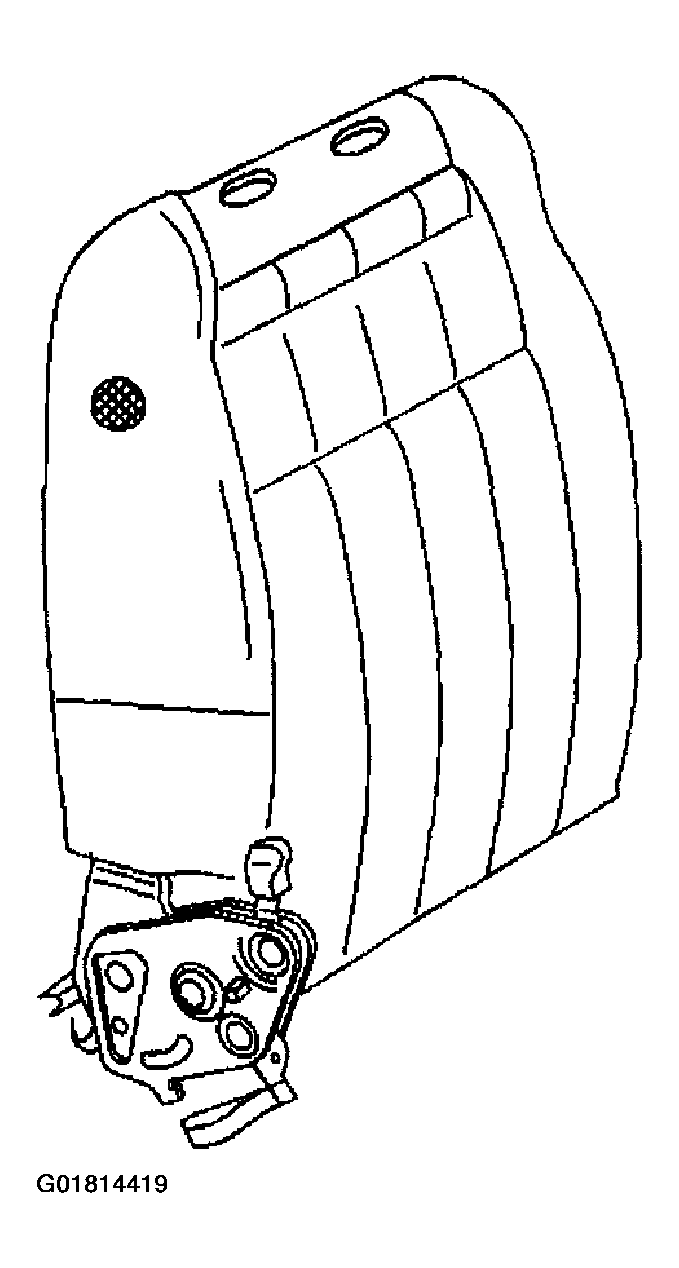

    Fig 1: Removing Recliner Covers (AL4, AT5, AM9)
    G01814419Courtesy of GENERAL MOTORS CORP.
  5. Remove the seat back cover and pad away in order to expose the recliner bolts.

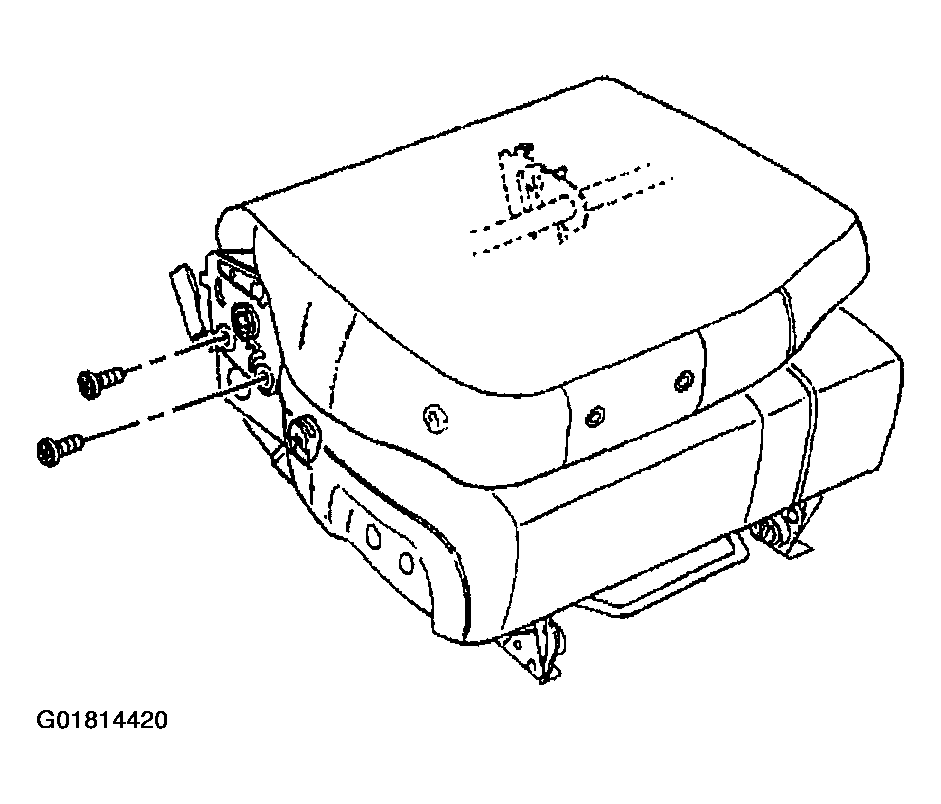

    Fig 2: Removing Seat Back Cover & Recliner Bolts (AL4, AT5, AM9)
    G01814420Courtesy of GENERAL MOTORS CORP.
  6. Remove the recliner bolts from the seat back.
  7. Remove the recliner from the seat.

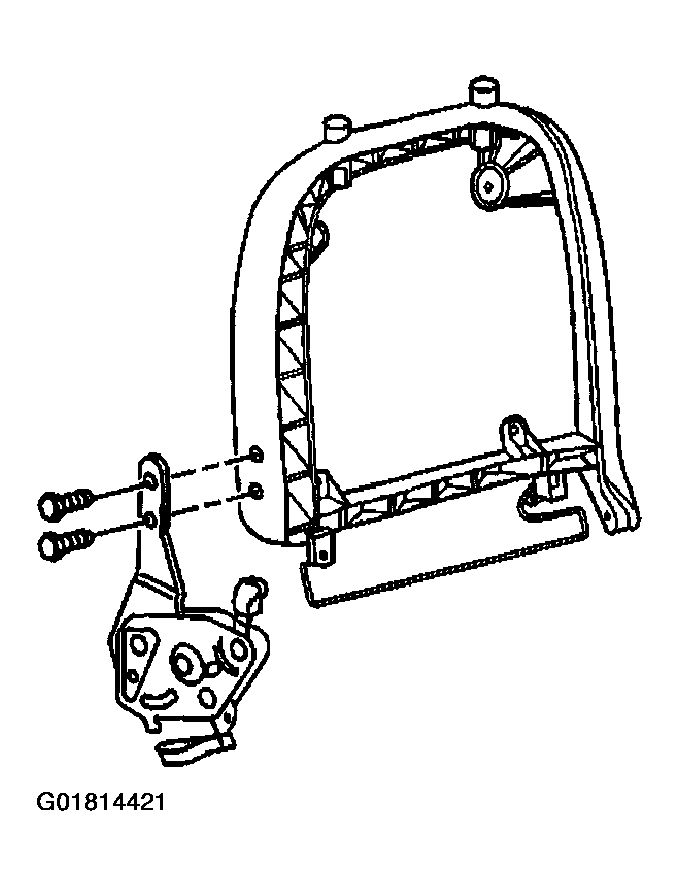

    Fig 3: Removing Recliner Bolts (AL4, AT5, AM9)
    G01814421Courtesy of GENERAL MOTORS CORP.
