Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the recliner to the seat back.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the recliner to the seat back bolts.

    Tighten

    Tighten the recliner bolts to 32 N.m (24 lb ft).

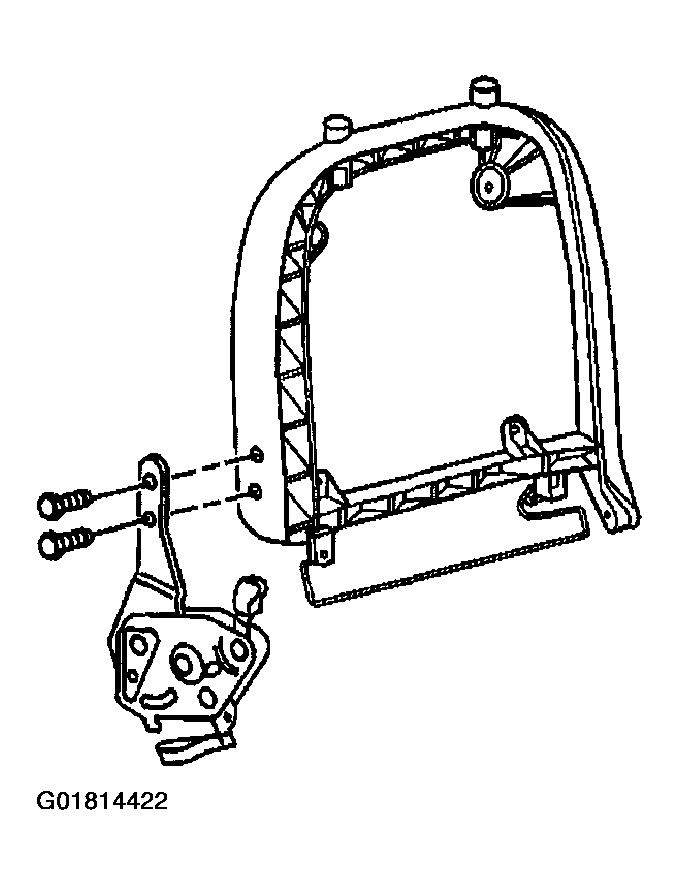

    Fig 1: Installing Recliner Bolts (AL4, AT5, AM9)
    G01814422Courtesy of GENERAL MOTORS CORP.
  3. Install the recliner to the seat cushion bolts.

    Tighten

    Tighten the recliner bolts to 32 N.m (24 lb ft).

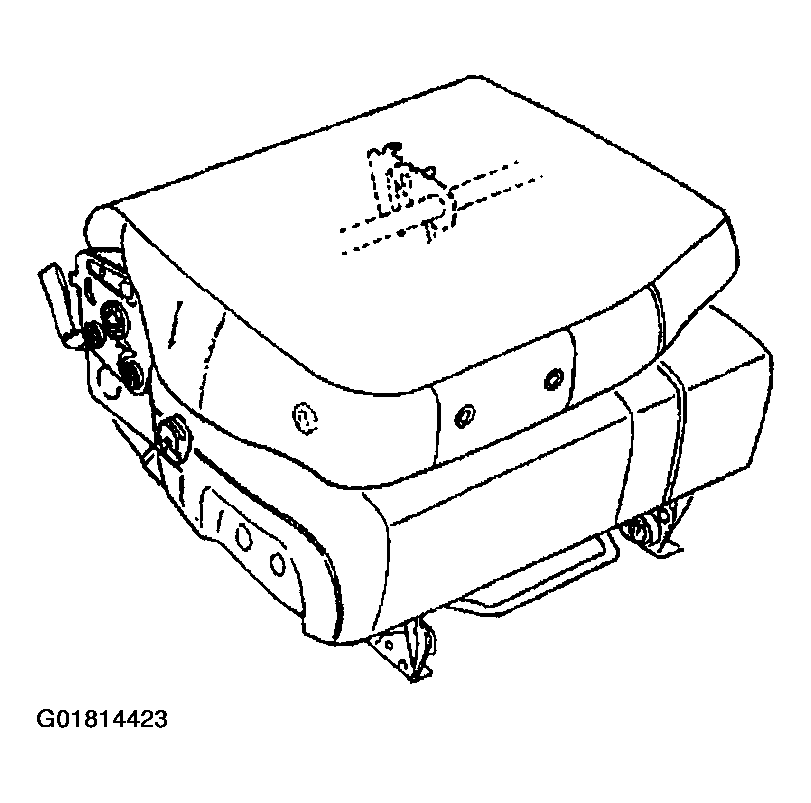

    Fig 2: Installing Seat Back Cover & Recliner Bolts (AL4, AT5, AM9)
    G01814423Courtesy of GENERAL MOTORS CORP.
  4. Install the seat back cover retainer at the bottom edge of the rear seat back cover.
  5. Install the recliner covers. Refer to Seat Back Recliner Cover Replacement - Rear .
  6. Install the seat. Refer to Seat Replacement - Rear .

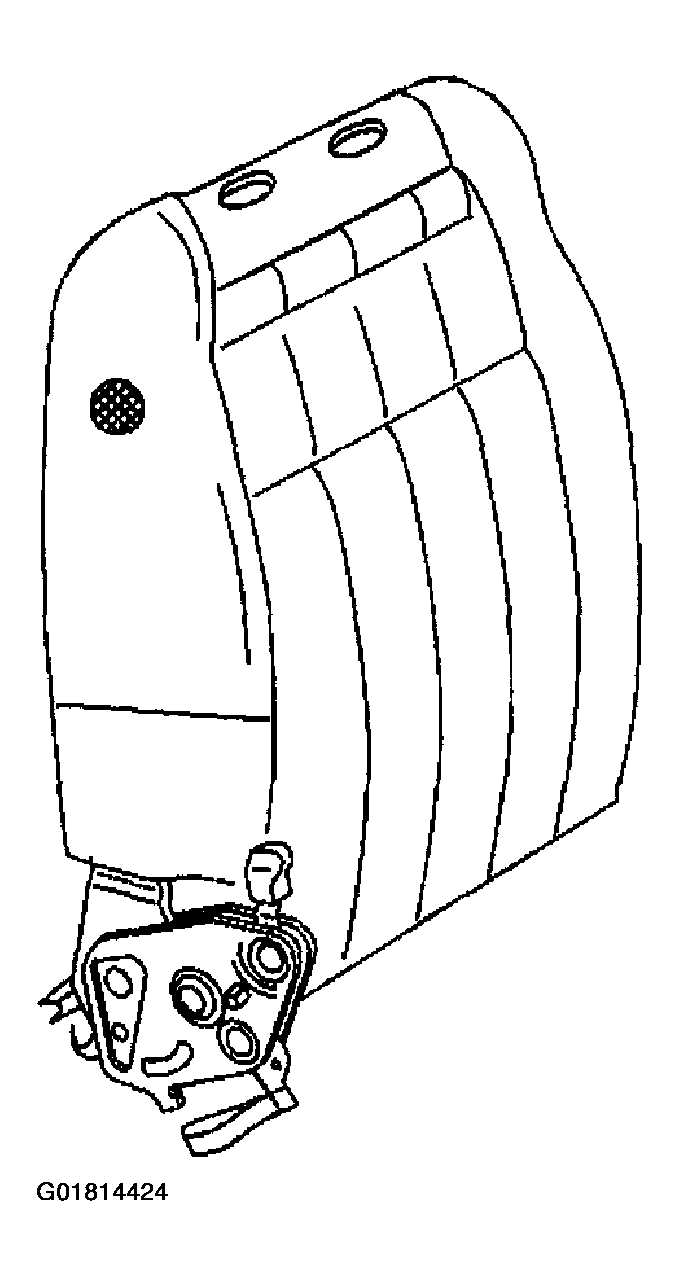

    Fig 3: Installing Recliner Covers (AL4, AT5, AM9)
    G01814424Courtesy of GENERAL MOTORS CORP.
