Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important:  The front seat recliner is an integral part of the front seat back frame. If the recliner needs to be replaced then the entire front seat back frame must be replaced.

  1. Remove the front seat. Refer to Seat Replacement - Bucket .
  2. Remove the seat back cover. Refer to Seat Back Cover Replacement - Front .
  3. Separate the seat back pad from the seat back frame (1).
  4. Replace the entire seat back frame (1) and recliner assembly (4).

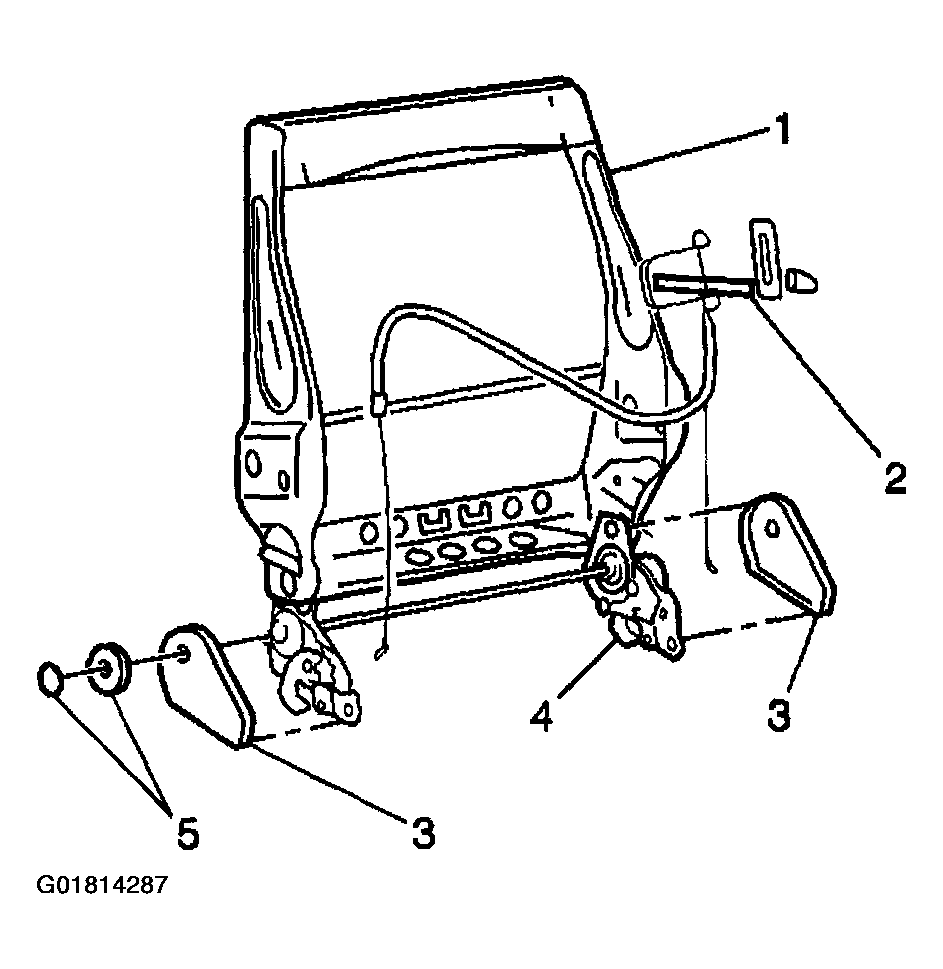

    Fig 1: Removing Seat Back Pad, Seat Back Frame & Recliner Assembly
    G01814287Courtesy of GENERAL MOTORS CORP.
