Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Replace the entire seat back frame (1) and recliner assembly (4).
  2. Install the seat back cover. Refer to Seat Back Cover Replacement - Front .
  3. Install the front seat. Refer to Seat Replacement - Bucket .

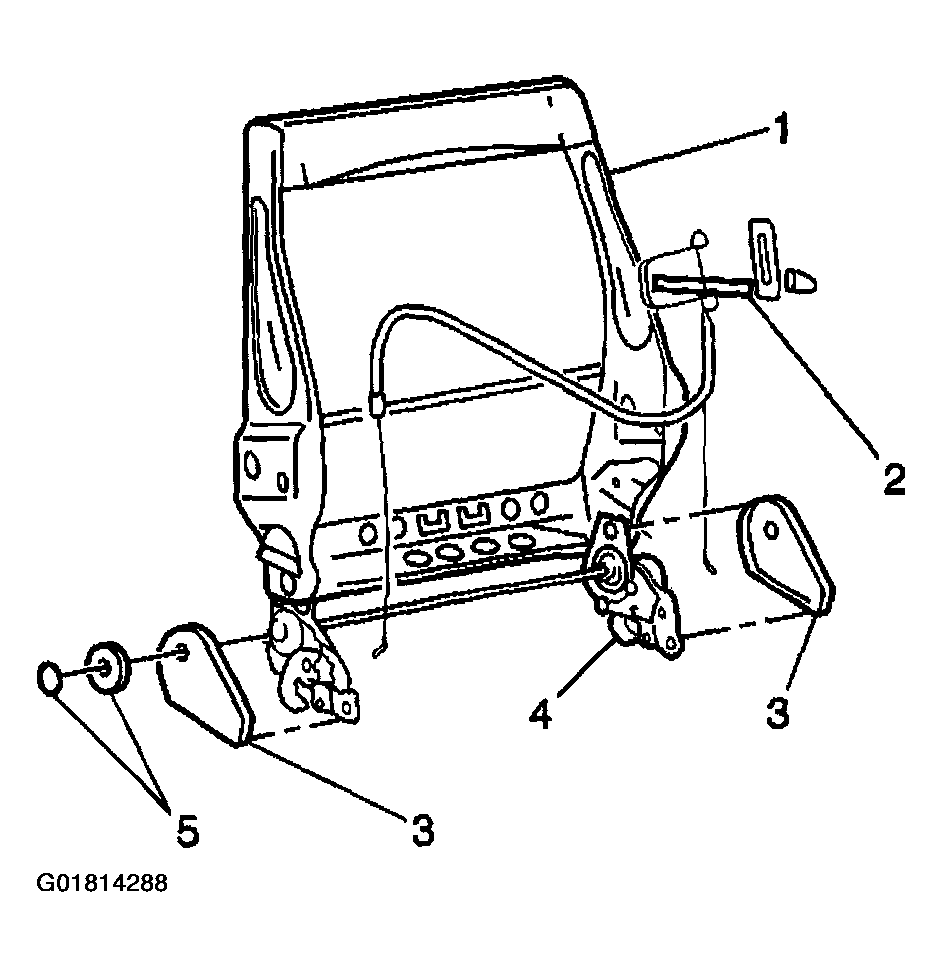

    Fig 1: Installing Seat Back Pad, Seat Back Frame & Recliner Assembly
    G01814288Courtesy of GENERAL MOTORS CORP.
