Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a flat-bladed tool to remove the plastic center cap from the center of the recliner handle.
  2. Pull the recliner handle off the shaft.

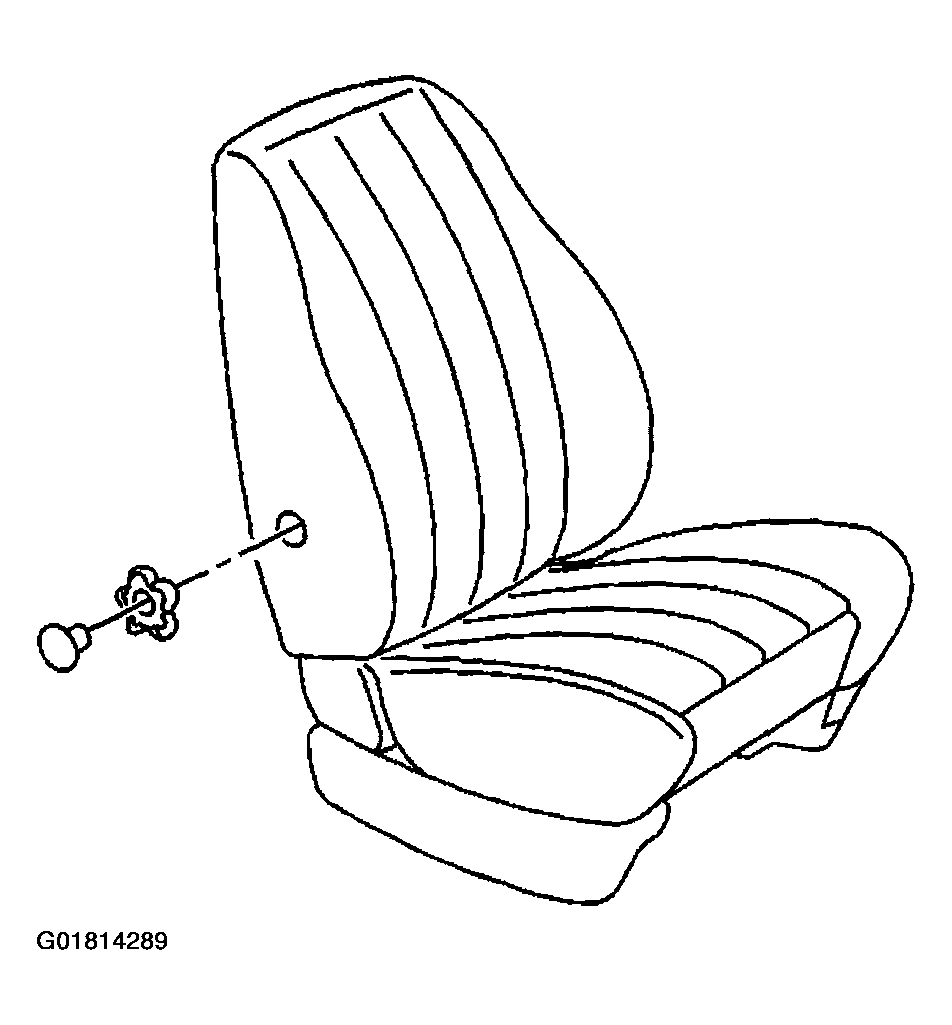

    Fig 1: Removing Seat Back Recliner Handle
    G01814289Courtesy of GENERAL MOTORS CORP.
