Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cover (3) to the recliner starting from the front of the cover.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the recliner cover screws.

    Tighten

    Tighten the recliner cover screws to 2 N.m (18 lb ft).

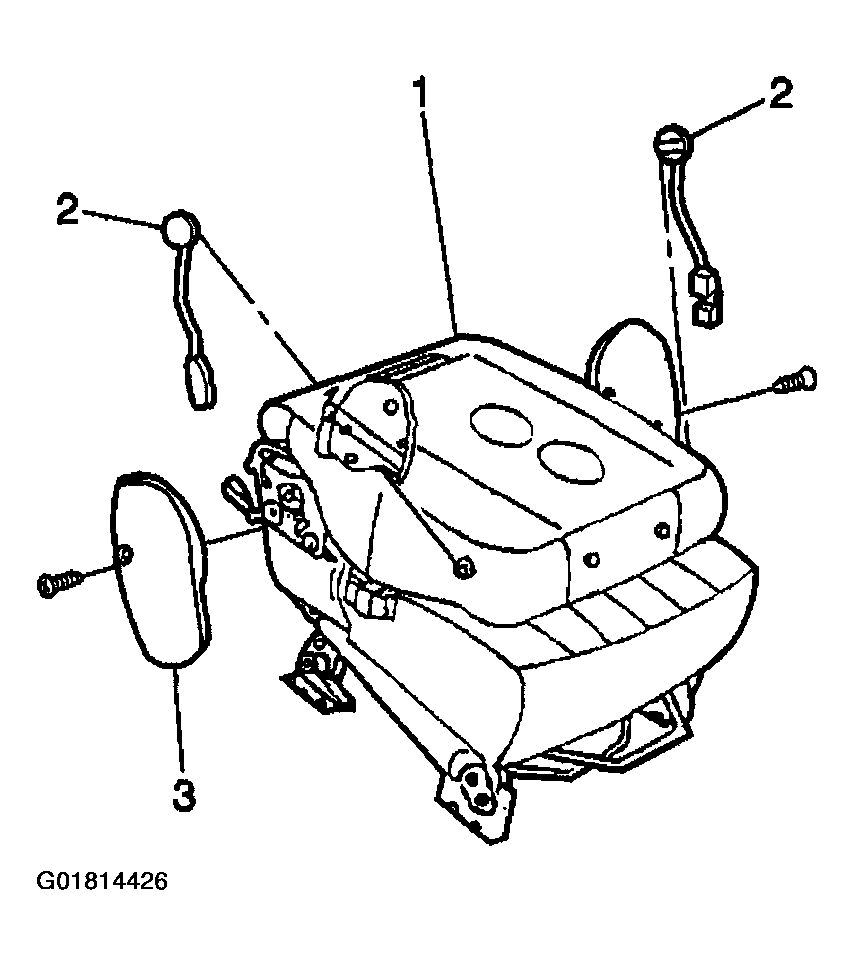

    Fig 1: Installing Seat Back Recliner Cover
    G01814426Courtesy of GENERAL MOTORS CORP.
