Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to Seat Replacement - Bucket .
  2. Remove the head restraint. Refer to Head Restraint Replacement - Front Seat .
  3. Remove the map pocket net. Refer to Map Pocket Net Replacement - Front Seat .
  4. Remove the finish covers. Refer to Seat Adjuster Track Cover Replacement - Front .
  5. Remove the recliner handle and cap. Seat Back Recliner Handle Replacement - Front
  6. Remove the seat back recliner covers starting at the rear of the cover.
  7. Remove the J retainer (1) from the bottom edge of the seat back cover.
  8. Remove the recliner bolts.
  9. Separate the seat back from the seat cushion.
  10. Remove the seat back cover from the seat back cushion while separating the hook and loop retainers.
    Fig 1: Removing Seat Back Cover & Seat Back Cushion
    G01814311Courtesy of GENERAL MOTORS CORP.
  11. Remove the seat back cover retainer rings (2).
  12. Remove the seat back cover (1).
  13. Remove the heater element from the seat back pad.

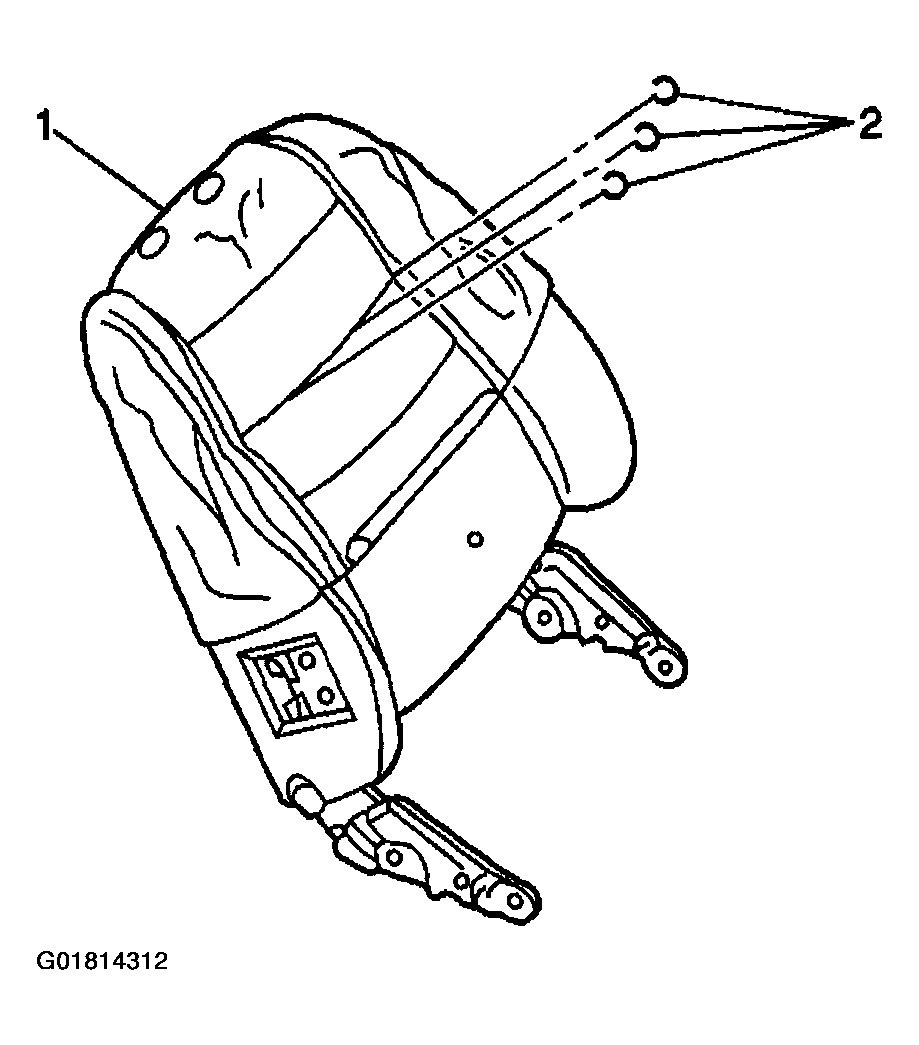

    Fig 2: Removing Seat Back Cover & Retainer Rings
    G01814312Courtesy of GENERAL MOTORS CORP.
