Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Rear (AQ4 - Captains Chair)  or Seat Back Cover and Pad Replacement - Rear (AL4 - Bucket)  or Seat Back Cover and Pad Replacement - Rear (AT5 - 60/40 Split Bench)  or Seat Back Cover and Pad Replacement - Rear (AM9 - 50/50 Split Bench) .
  2. Pinch the base of the head restraint guides and remove the guide from the seat back frames (1).

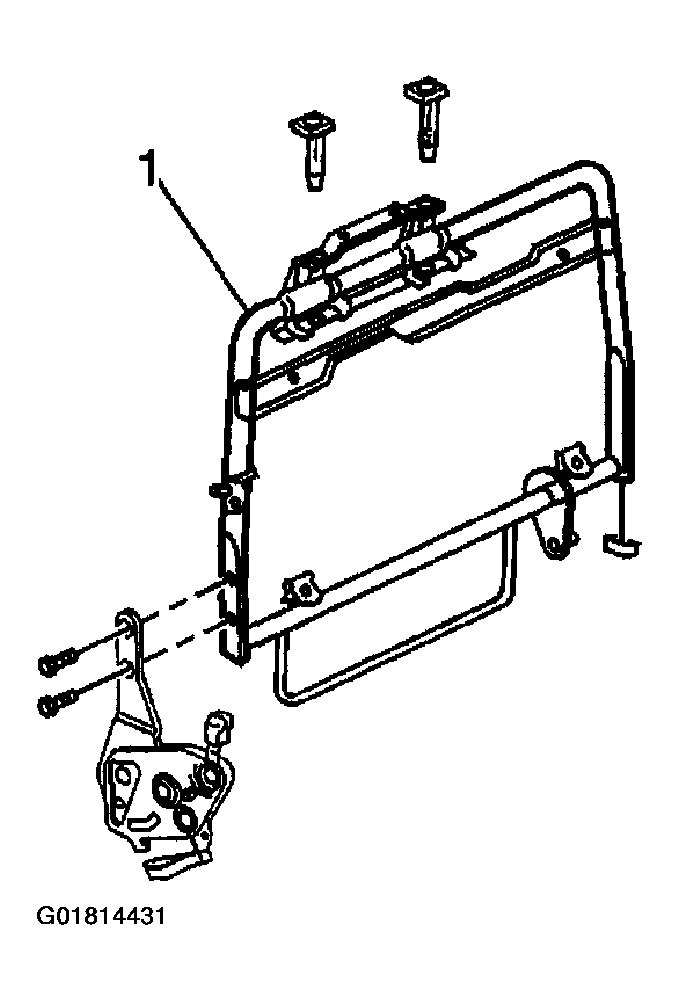

    Fig 1: Removing Seat Back Frame & Screws (AM9 - 50/50 Split Bench)
    G01814431Courtesy of GENERAL MOTORS CORP.
