Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the head restraint guides to the seat back frame (1).
  2. Install the rear seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Rear (AQ4 - Captains Chair)  or Seat Back Cover and Pad Replacement - Rear (AL4 - Bucket)  or Seat Back Cover and Pad Replacement - Rear (AT5 - 60/40 Split Bench)  or Seat Back Cover and Pad Replacement - Rear (AM9 - 50/50 Split Bench) .

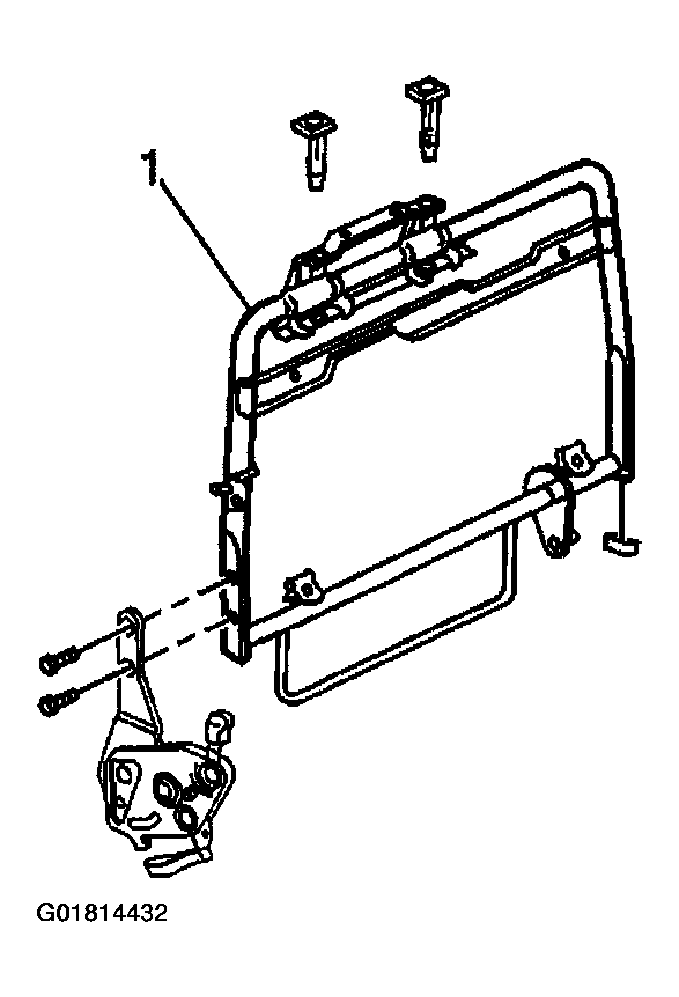

    Fig 1: Installing Seat Back Frame & Screws (AM9 - 50/50 Split Bench)
    G01814432Courtesy of GENERAL MOTORS CORP.
