Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat back cover. Refer to Seat Back Cover Replacement - Front .
  2. Remove the seat back pad from the frame (1).
  3. Squeeze the bottom of the head restraint guide together and pull the head restraint guide from the seat back frame.
  4. Remove the seat back frame (1).

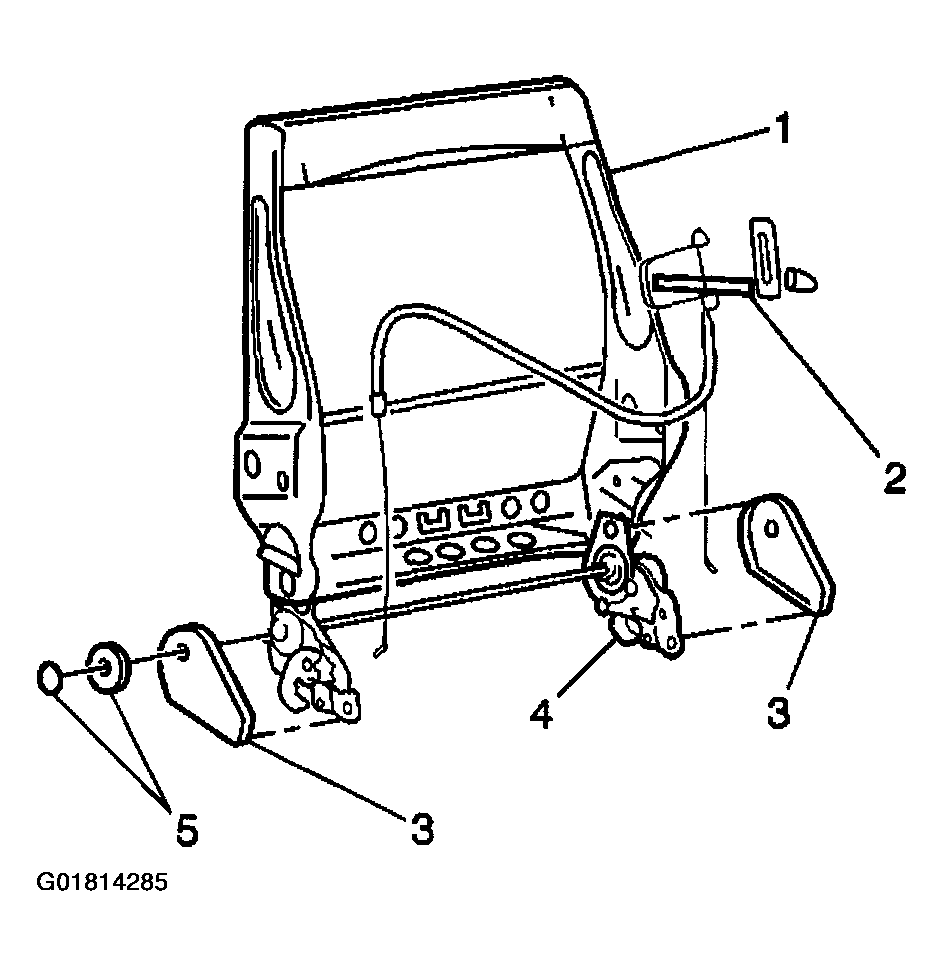

    Fig 1: Removing Seat Back Pad & Frame
    G01814285Courtesy of GENERAL MOTORS CORP.
