Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the push-pin retainers from the rear seat back finish panel with a flat bladed tool.
  2. Remove the outer portion of the push-pin retainer from the seat back finish panel.
  3. Remove the seat back finish panel from the seat back.

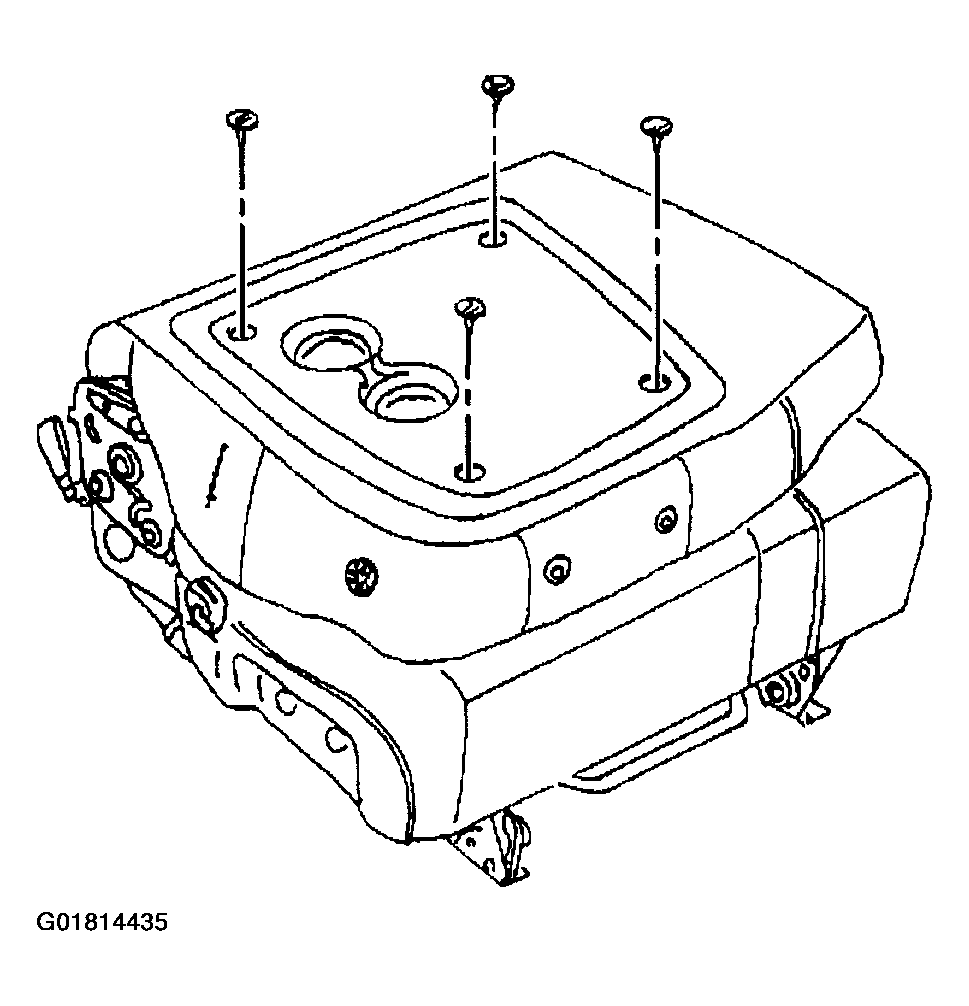

    Fig 1: Removing Push-Pin Retainers From Rear Seat Back Finish Panel
    G01814435Courtesy of GENERAL MOTORS CORP.
