Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat back pad to the seat back frame.
  2. Install the rear seat back cover over the foam pad.

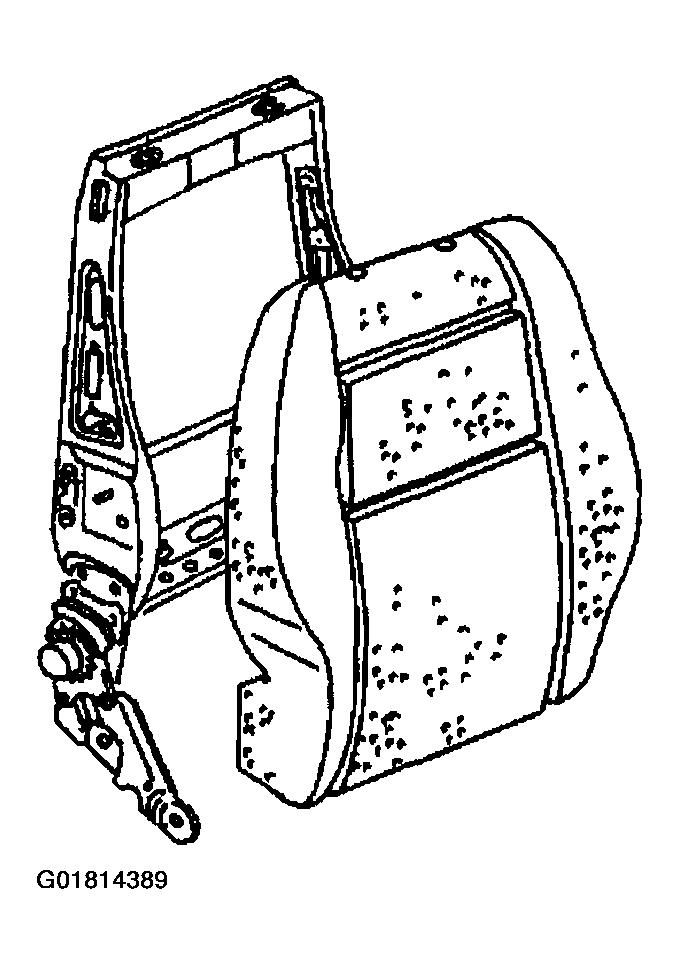

    Fig 1: Installing Rear Seat Back Pad To Seat Back Frame (AQ4 - Captains Chair)
    G01814389Courtesy of GENERAL MOTORS CORP.
  3. Secure the rear seat back cover to the foam pad using retainer rings (2) and the hook and loop retainers.

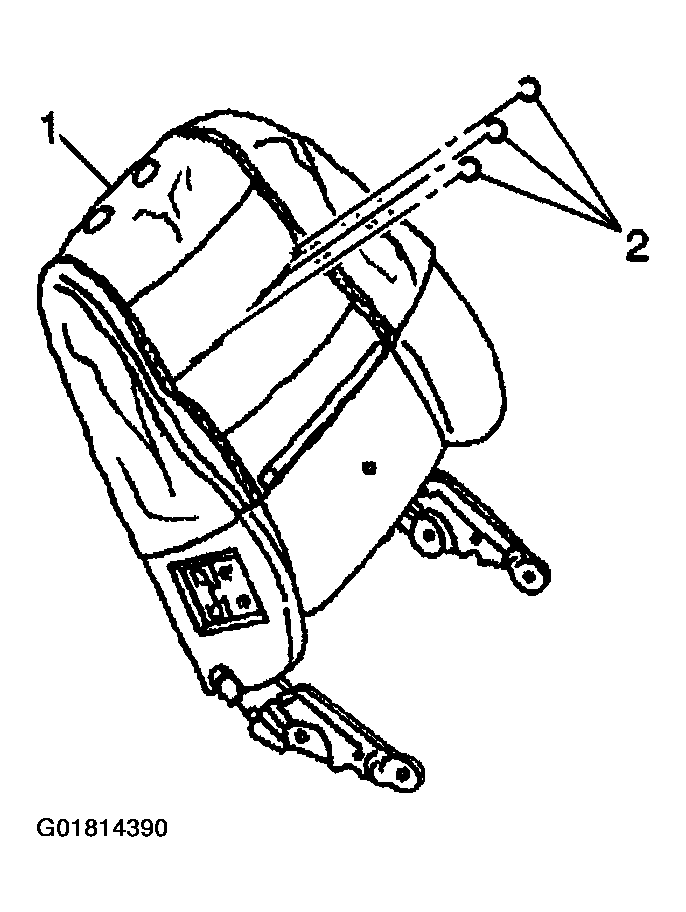

    Fig 2: Installing Rear Seat Back Cover & Retainer Rings (AQ4 - Captains Chair)
    G01814390Courtesy of GENERAL MOTORS CORP.
  4. Install the armrest. Refer to Armrest Replacement - Rear Seat .
    Fig 3: Installing Recliner Bolts (AQ4 - Captains Chair)
    G01814391Courtesy of GENERAL MOTORS CORP.
  5. Install the rear seat back to the rear seat cushion.
    NOTE: Refer to FASTENER NOTICE .
  6. Install the recliner bolts.

    Tighten

    Tighten the recliner bolts to 32 N.m (24 lb ft).

  7. Install the rear seat back foam and cover over the recliner bolts.
  8. Install the rear seat back recliner cover. Refer to Seat Back Recliner Cover Replacement - Rear .
  9. Install the J retainer (1) at the bottom edge of the rear seat back cover.
  10. Install the rear seat back finish panel. Refer to Seat Back Filler Panel Replacement - Rear .
  11. Install the finish covers. Refer to Seat Trim Replacement - Side .
  12. Install the head restraint. Refer to Head Restraint Replacement - Rear Seat .
  13. Install the second row captain's chair. Refer to Seat Replacement - Rear .

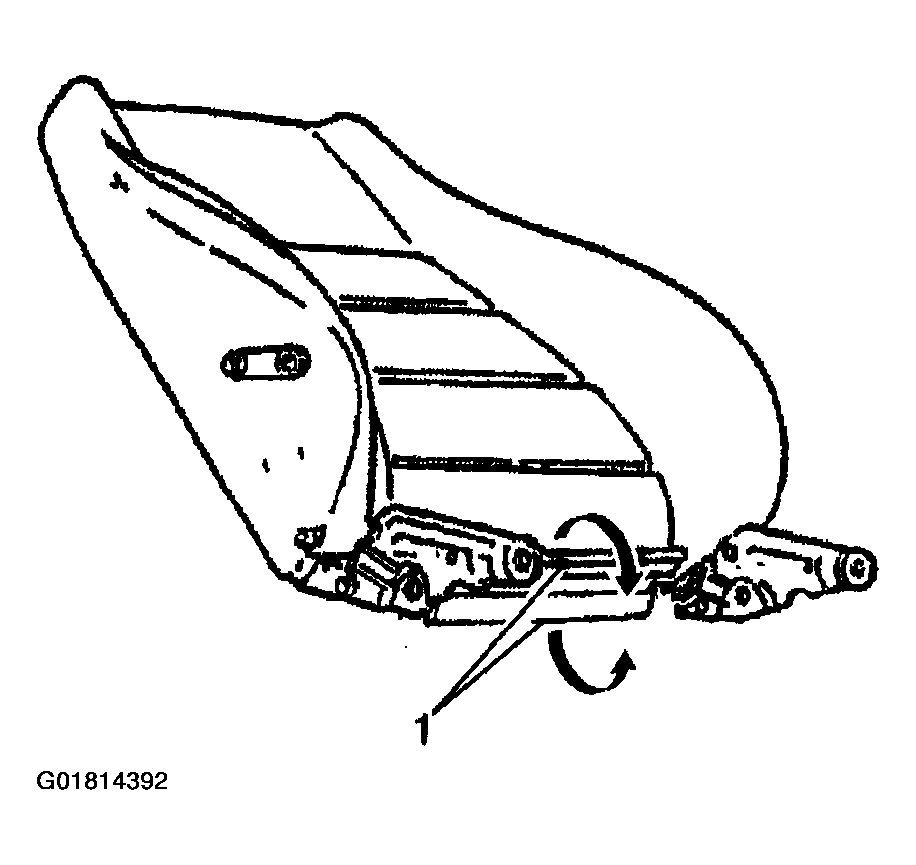

    Fig 4: Installing J Retainer To Bottom Edge Of Rear Seat Back Cover (AQ4 - Captains Chair)
    G01814392Courtesy of GENERAL MOTORS CORP.
