Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat back pad (2) to the seat back frame (1).
  2. Install the rear seat back cover over the foam pad.

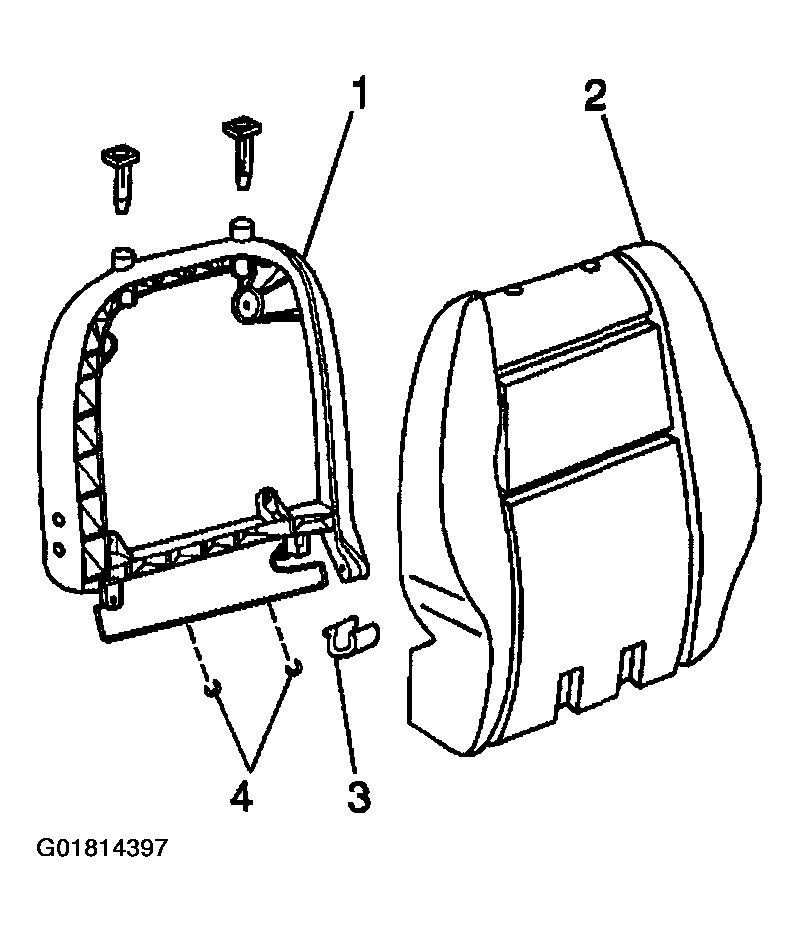

    Fig 1: Installing Rear Seat Back Pad To Seat Back Frame (AL4 - Bucket)
    G01814397Courtesy of GENERAL MOTORS CORP.
  3. Secure the rear seat back cover to the foam pad using retainer rings and the hook and loop retainers.
  4. Install the rear seat back to the rear seat cushion.

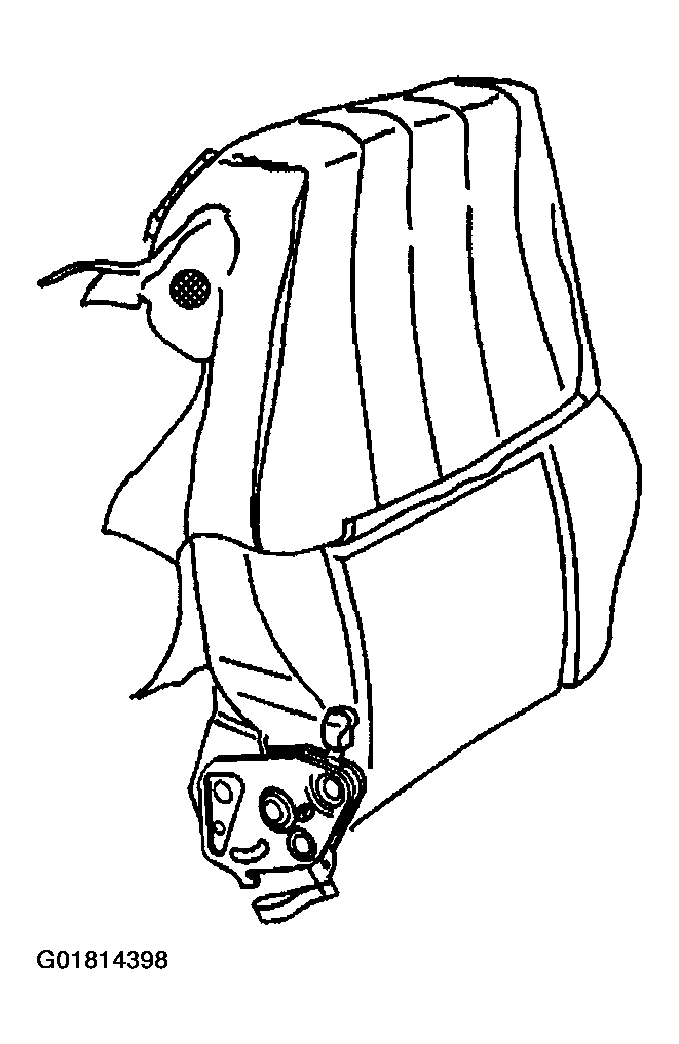

    Fig 2: Installing Rear Seat Back Cover & Foam Pad (AL4 - Bucket)
    G01814398Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the recliner bolts.

    Tighten

    Tighten the recliner bolts to 32 N.m (24 lb ft).

  6. Install the rear seat back foam and cover over the recliner bolts.

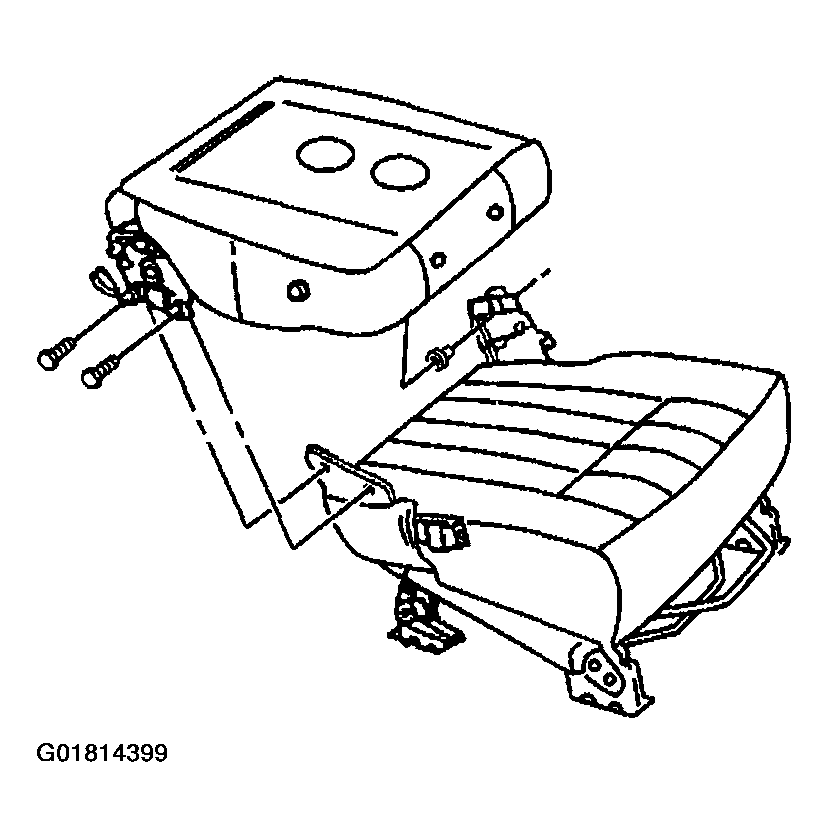

    Fig 3: Installing Rear Seat Back Cover & Retainer Rings (AL4 - Bucket)
    G01814399Courtesy of GENERAL MOTORS CORP.
  7. Install the rear seat back recliner cover. Refer to Seat Back Recliner Cover Replacement - Rear .
  8. Install the J retainer at the bottom edge of the rear seat back cover.
  9. Install the rear seat back finish panel. Refer to Seat Back Filler Panel Replacement - Rear .
  10. Install the head restraint. Refer to Head Restraint Replacement - Rear Seat .
  11. Install the second row bucket seat. Refer to Seat Replacement - Rear .

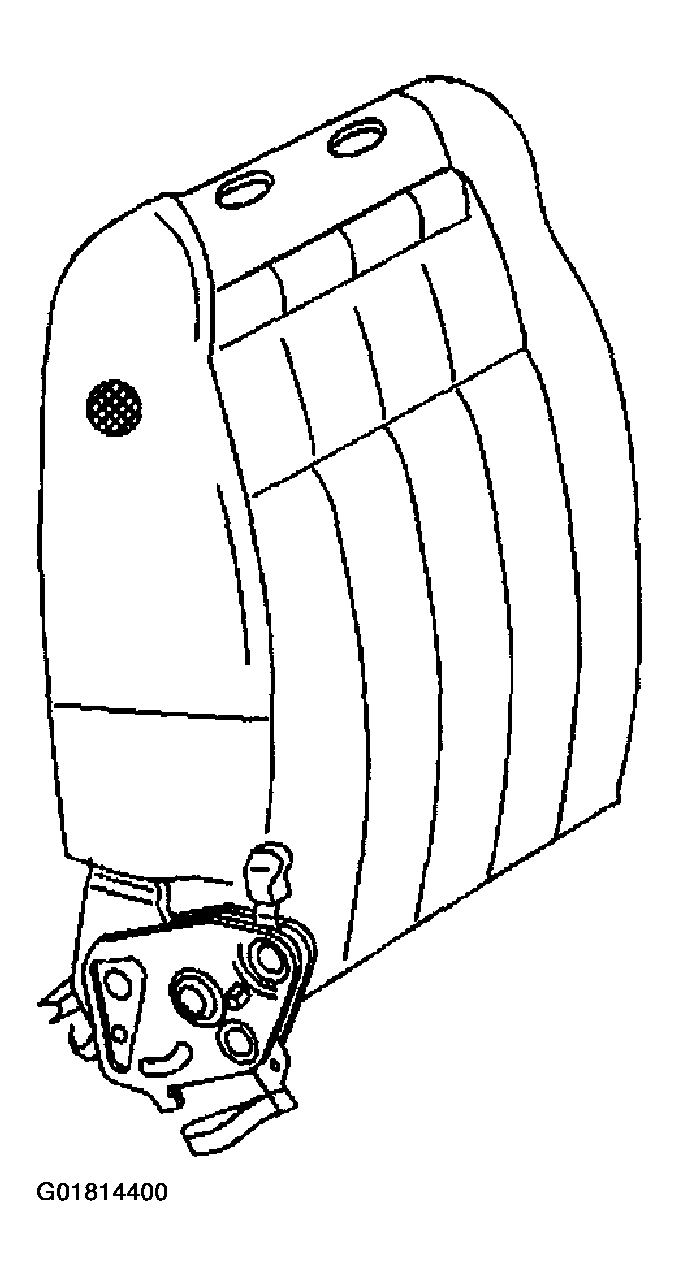

    Fig 4: Installing Second Row Bucket Seat (AL4 - Bucket)
    G01814400Courtesy of GENERAL MOTORS CORP.
