Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to Seat Replacement - Bucket .
  2. Remove the head restraint. Refer to Head Restraint Replacement - Front Seat .
  3. Remove the map pocket net. Refer to Map Pocket Net Replacement - Front Seat .
  4. Remove the finish covers. Refer to Seat Adjuster Track Cover Replacement - Front .
  5. Remove the recliner handle and cap. Seat Back Recliner Handle Replacement - Front
  6. Remove the seat back recliner covers starting at the rear of the cover.
  7. Remove the J retainer (1) from the bottom edge of the seat back cover.
  8. Remove the recliner bolts.
  9. Separate the seat back from the seat cushion.
  10. Remove the seat back cover from the seat back cushion while separating the hook and loop retainers.
  11. Remove the seat back cover retainer rings (2).
    Fig 1: Removing J Retainer From Bottom Edge Of Seat Back Cover
    G01814279Courtesy of GENERAL MOTORS CORP.
  12. Remove the seat back cover (1).

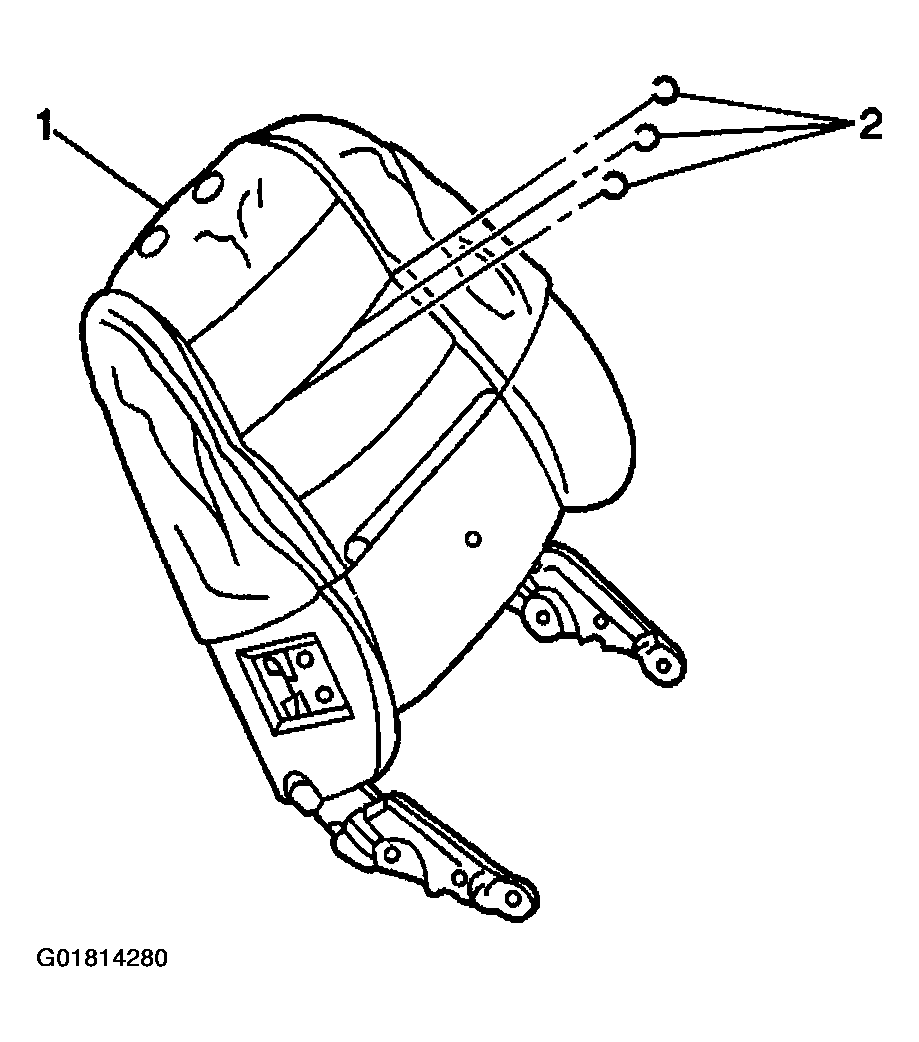

    Fig 2: Removing Seat Back Cover (Front)
    G01814280Courtesy of GENERAL MOTORS CORP.
